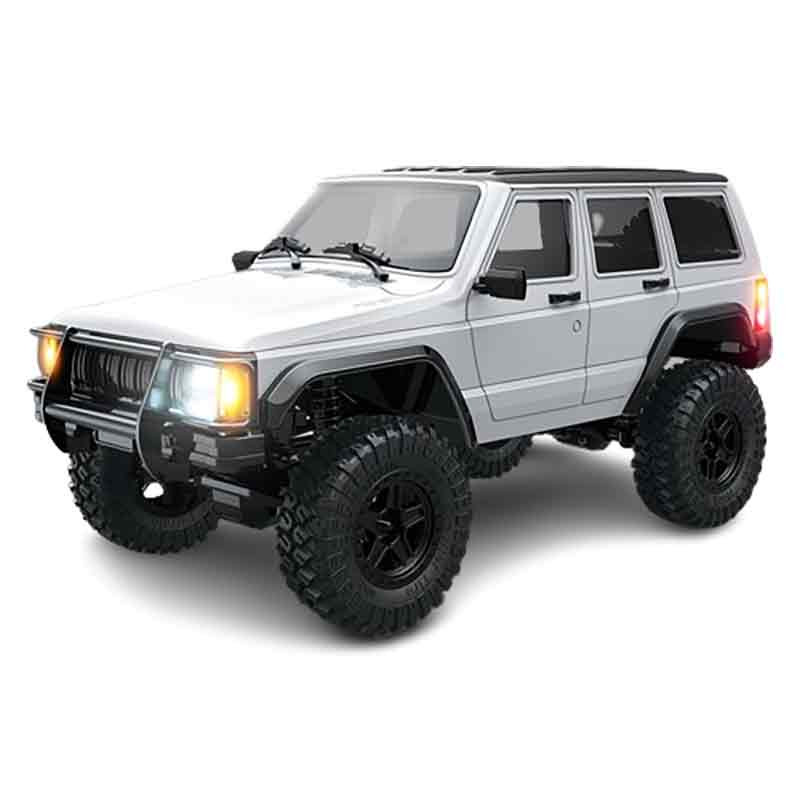

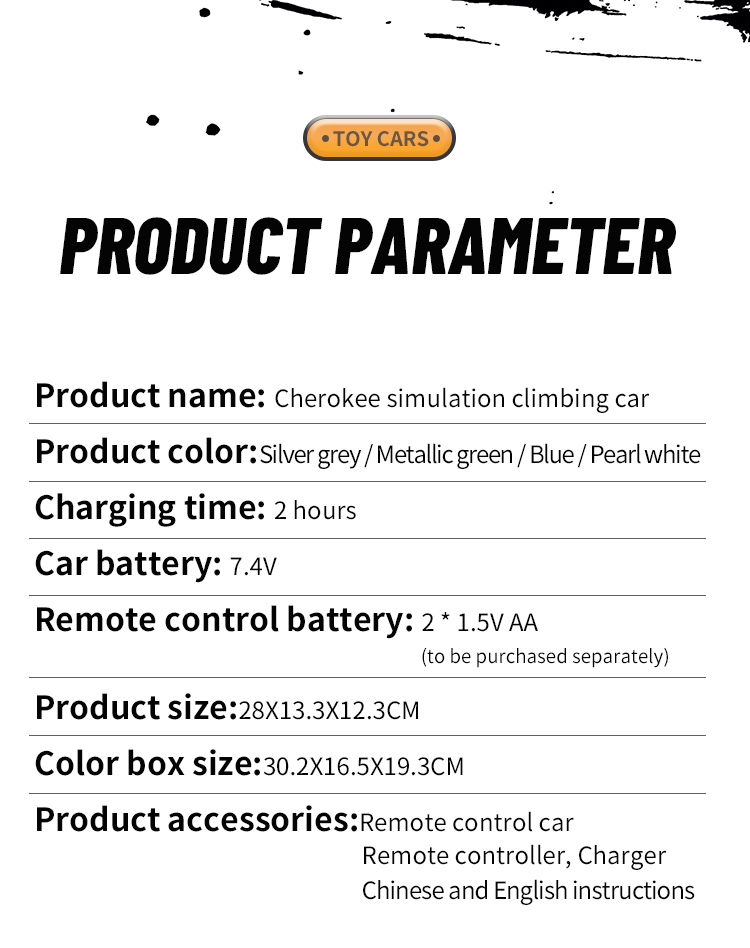

I. Basic Product Information

• Brand: JJRC
• Model: C8809
• Scale: 1/18
• Materials: Hardware, electronics, plastic
• Product size: 28*13.3*12.3 CM
• Body weight: 510g
• Optional colors: Gray, green, blue, white

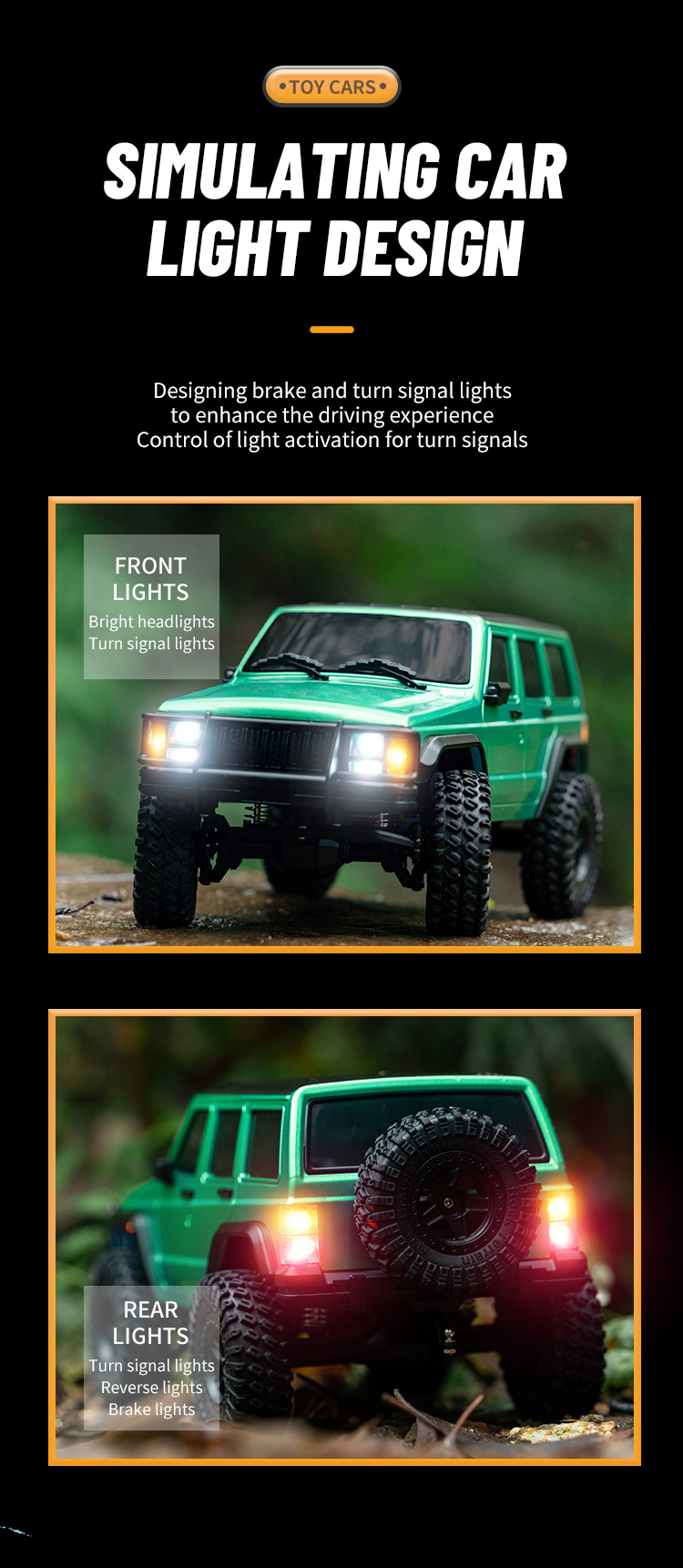

• Light configuration: LED headlights, front turn signals, rear turn signals.

II. Product Appearance and Features

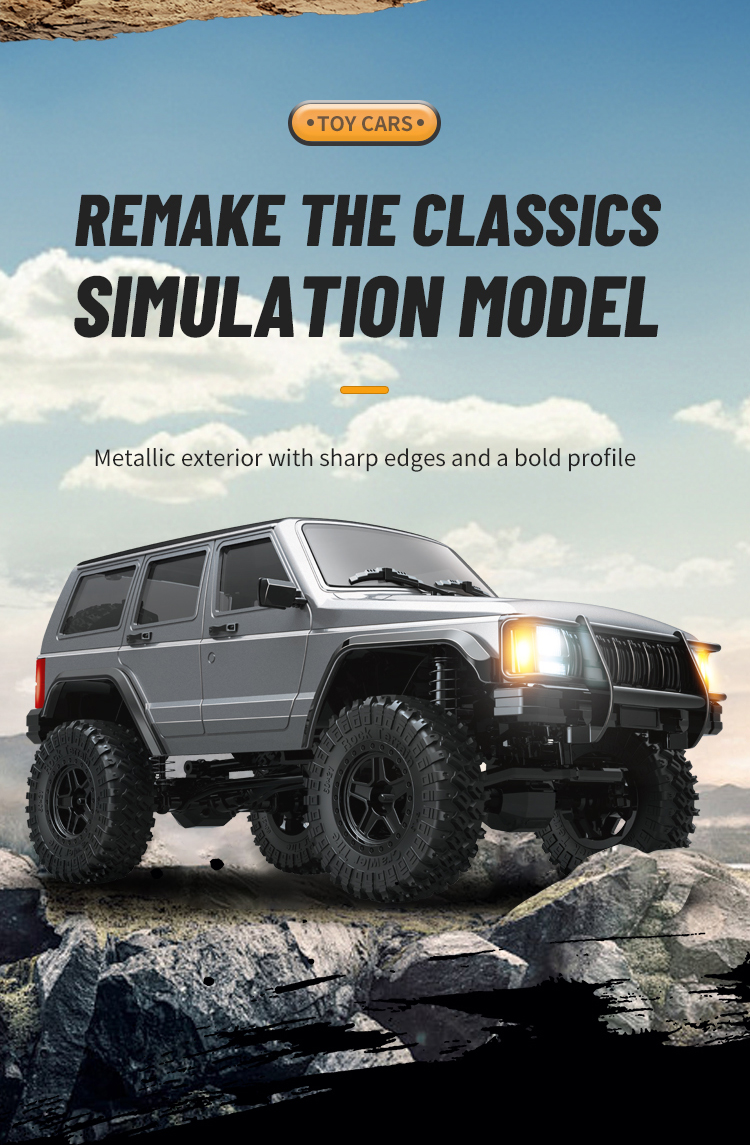

• The appearance continues the simulation details with simulated linked lights.
• This is a hardcore off-road vehicle image, bringing a feeling of traversing the unknown, conquering the field of vision, and exploring endless possibilities.

III. Product Structure and Performance Advantages

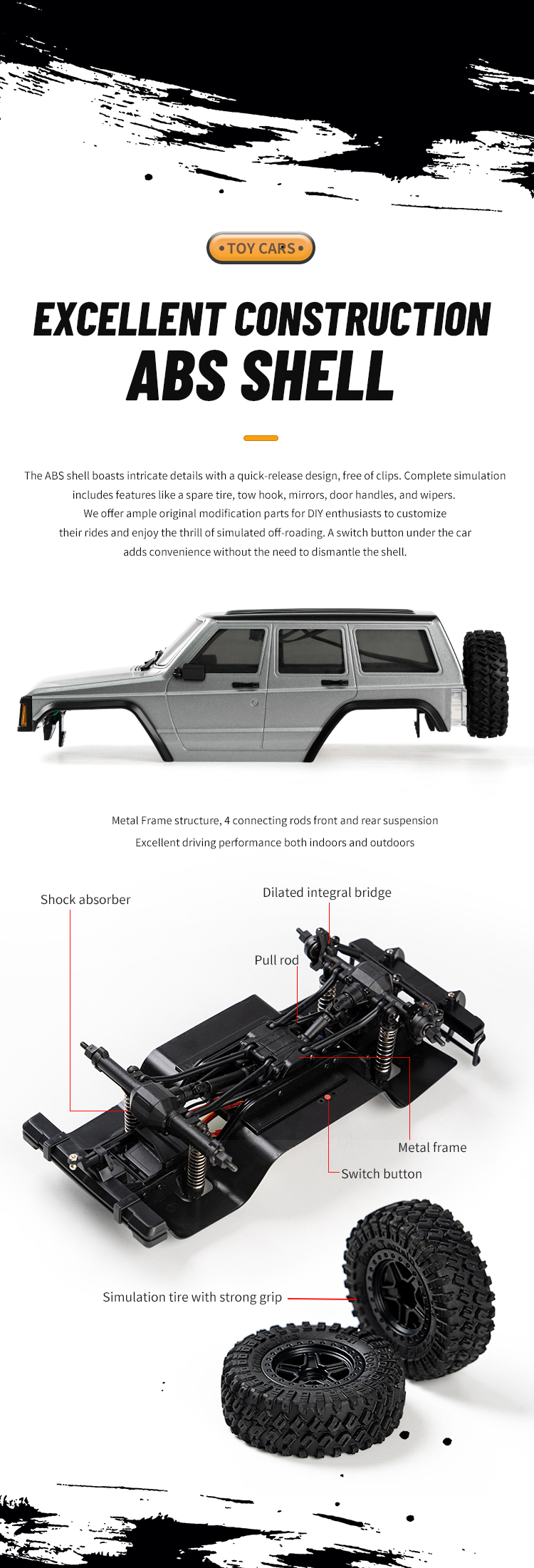

• Metal girder structure provides stable support.

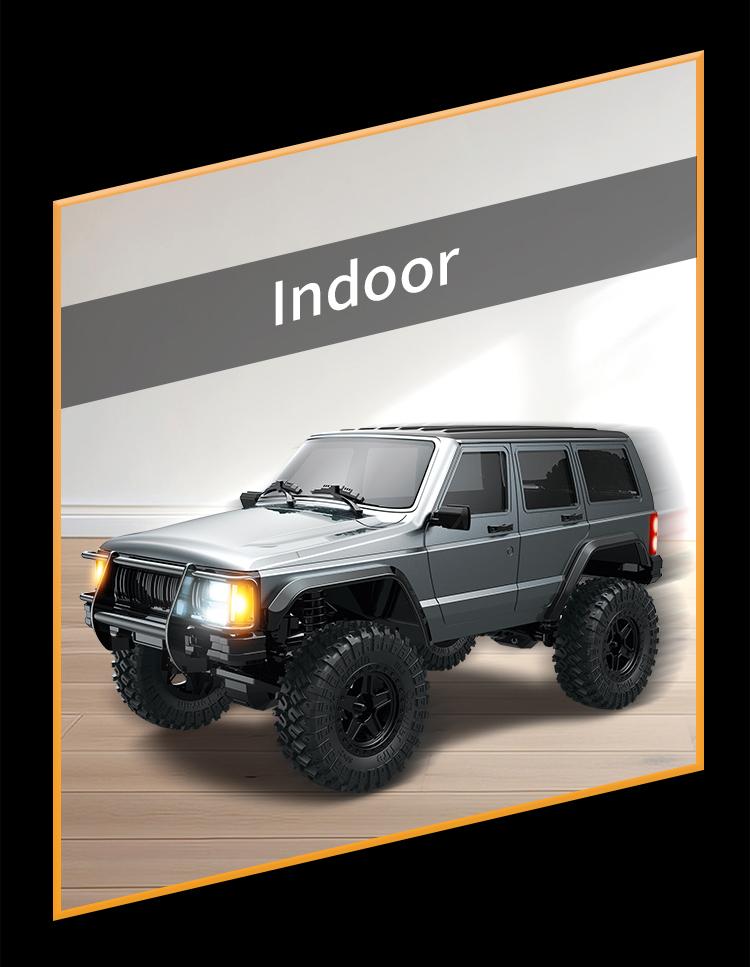

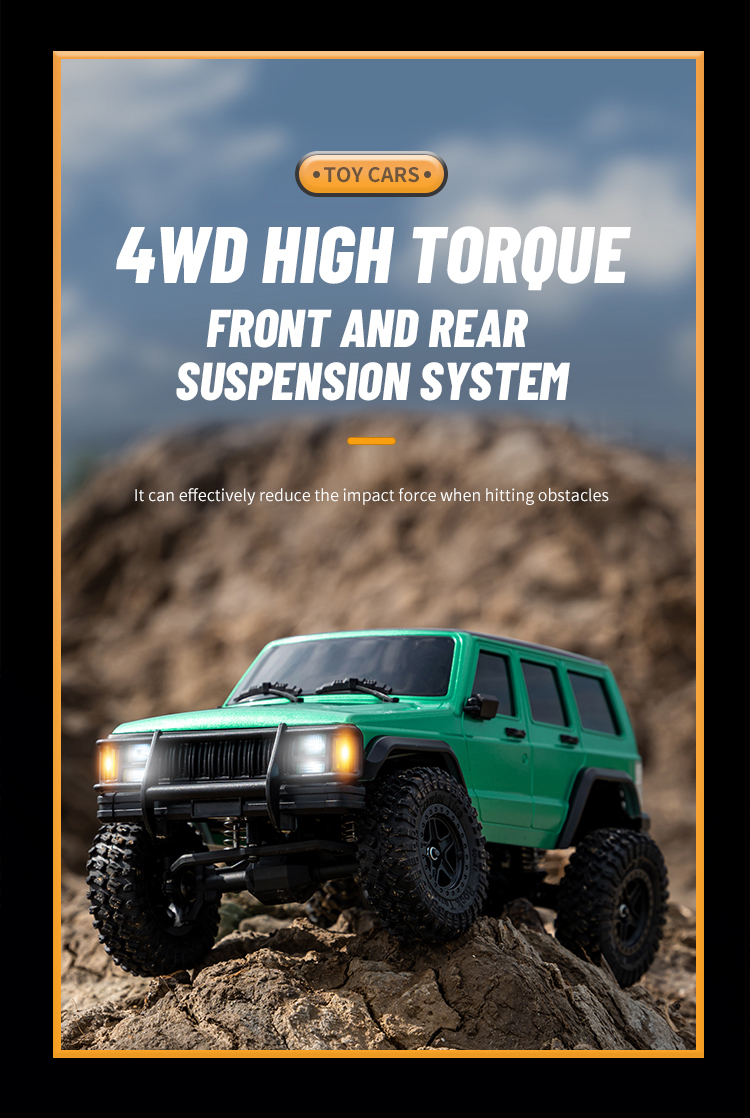

• Front and rear independent suspension shock absorbers, four-link suspension geometry design. When combined with the chassis, it increases articulation and reduces shaft effect, providing excellent walking performance both indoors and outdoors.

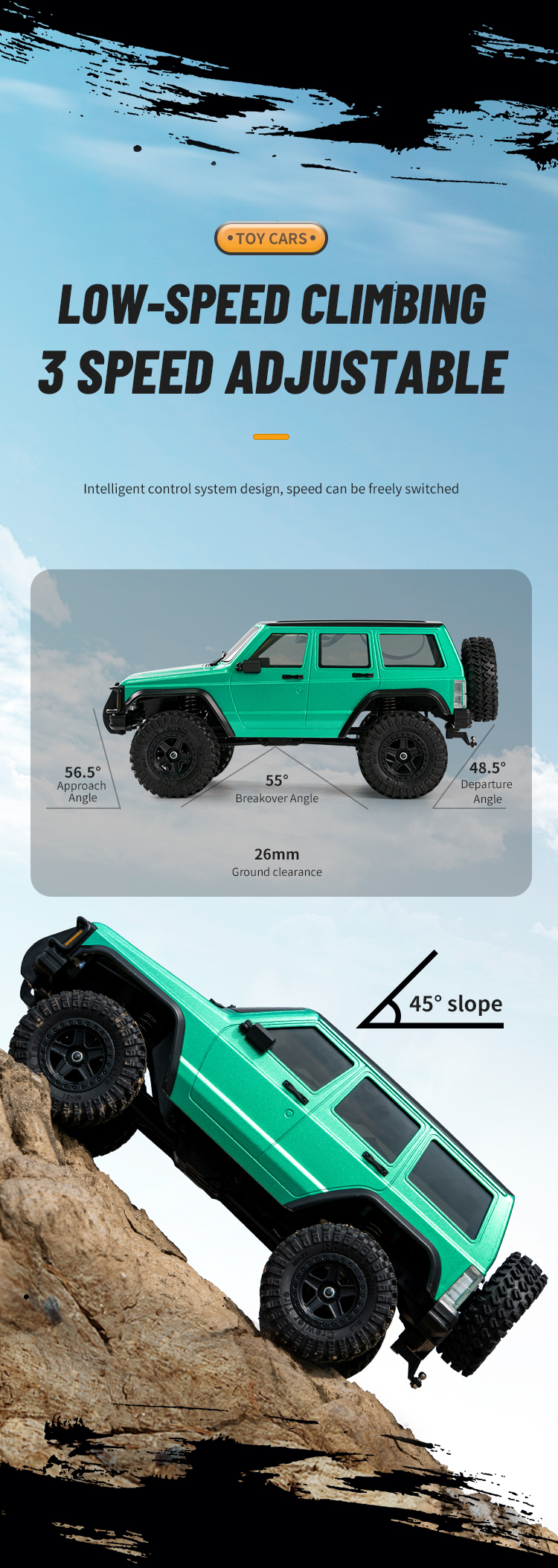

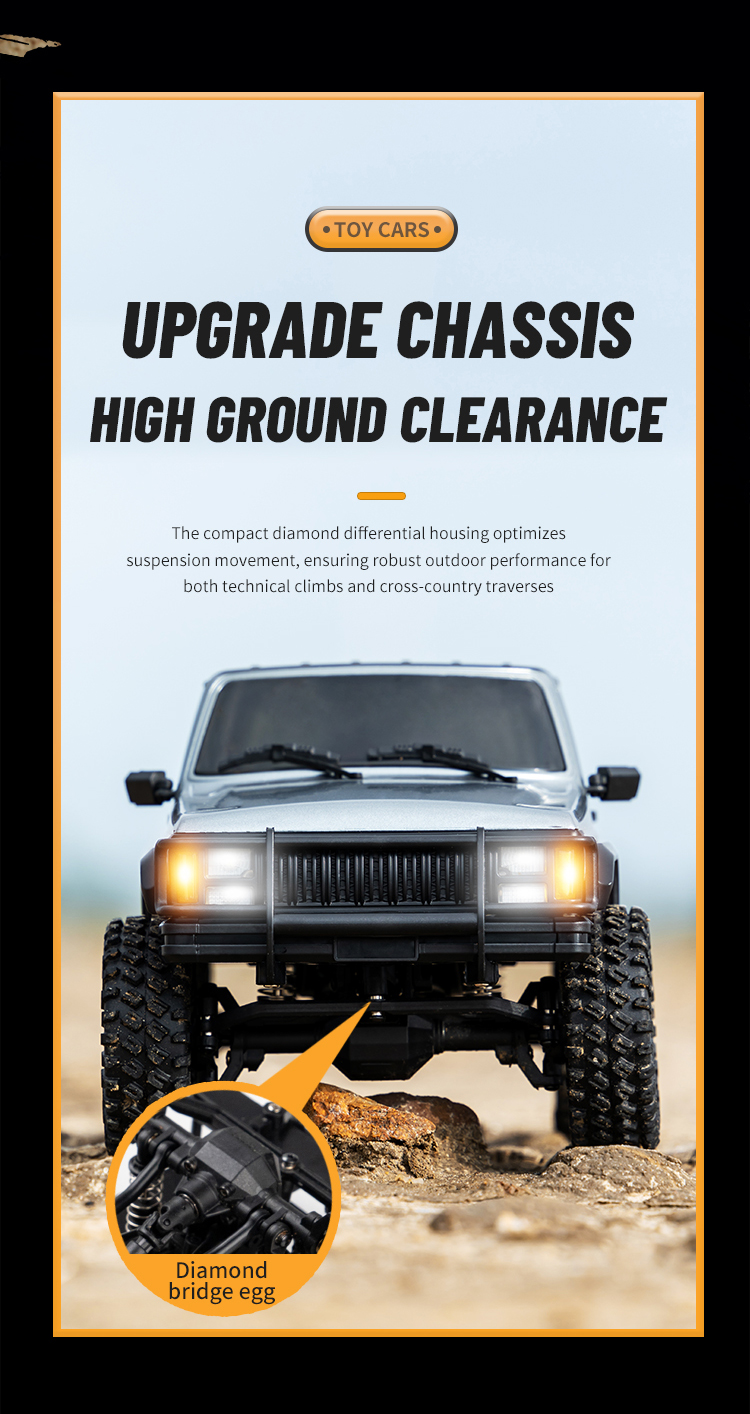

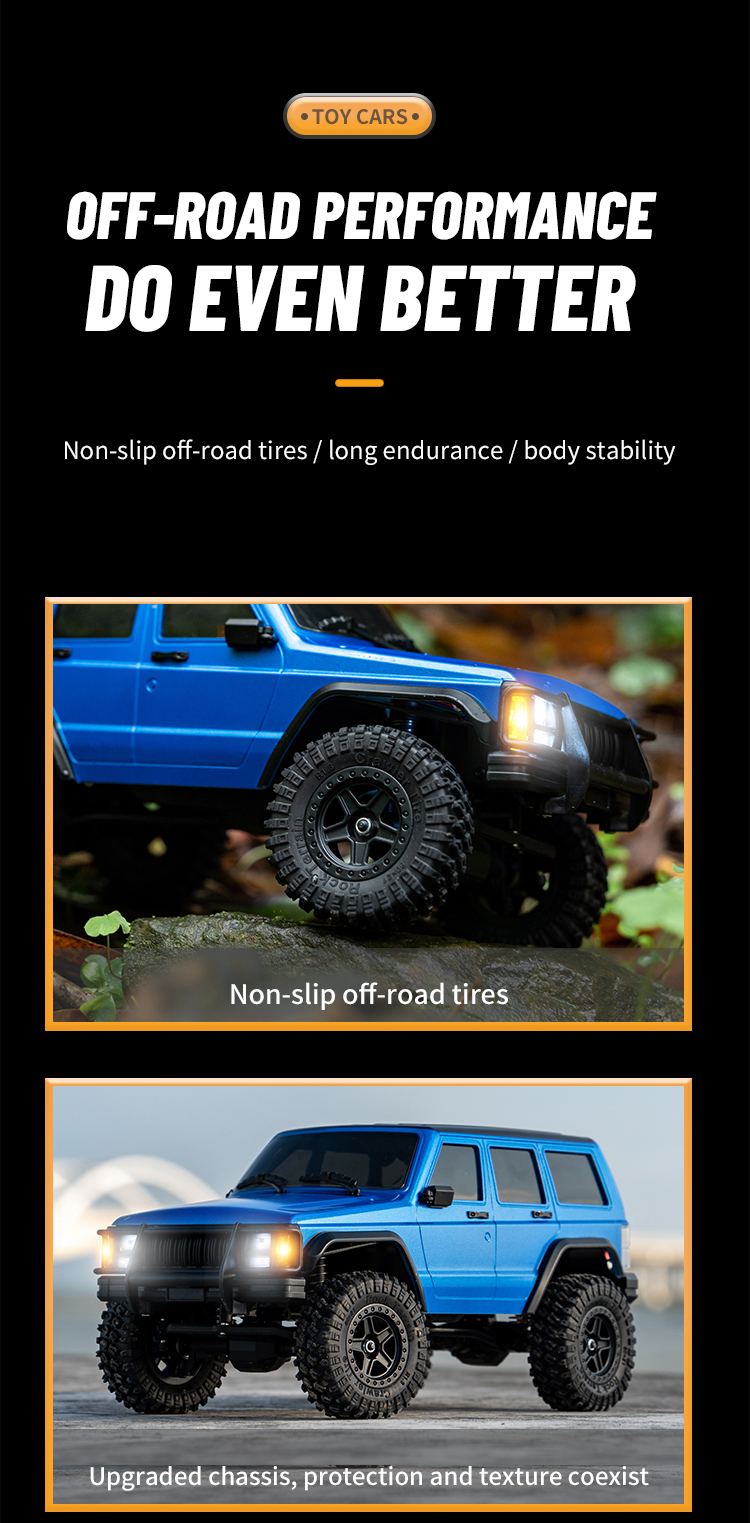

• The chassis has a high ground clearance. Enlarged tires and widened one-piece diamond bridge increase body stability and off-road ability.

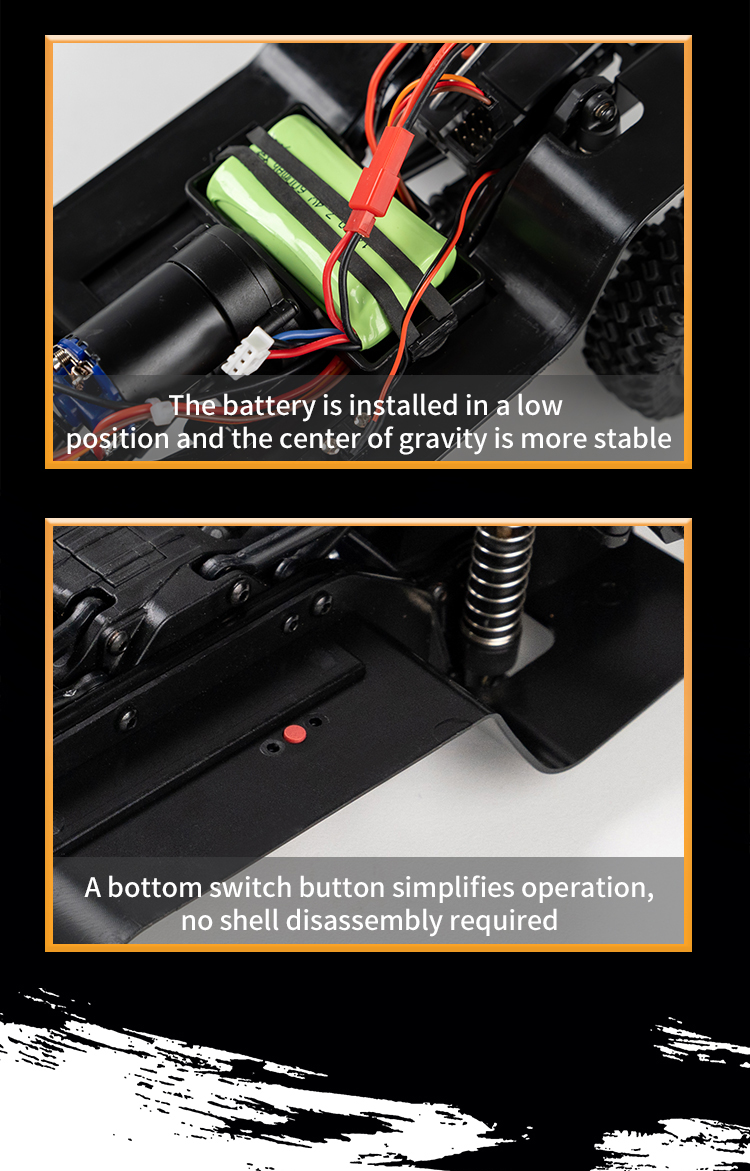

• The low-center-of-gravity battery installation position makes the frame's center of gravity more stable.
• Large front and rear straight axles plus transmission ensure sufficient operating space for the suspension system.

IV. Power System

• 20A brushed electronic speed controller can generate strong output power. With a low-linear attitude, it can run and climb.
• The power uses a high-torque external 370 carbon brush motor, providing appropriate torque to conquer steep slopes and maintaining a minimum height while protecting the gears.

V. Steering and Control System

• 9-gram high-torque metal gear steering gear with a steering angle of up to 45 degrees and sensitive response.

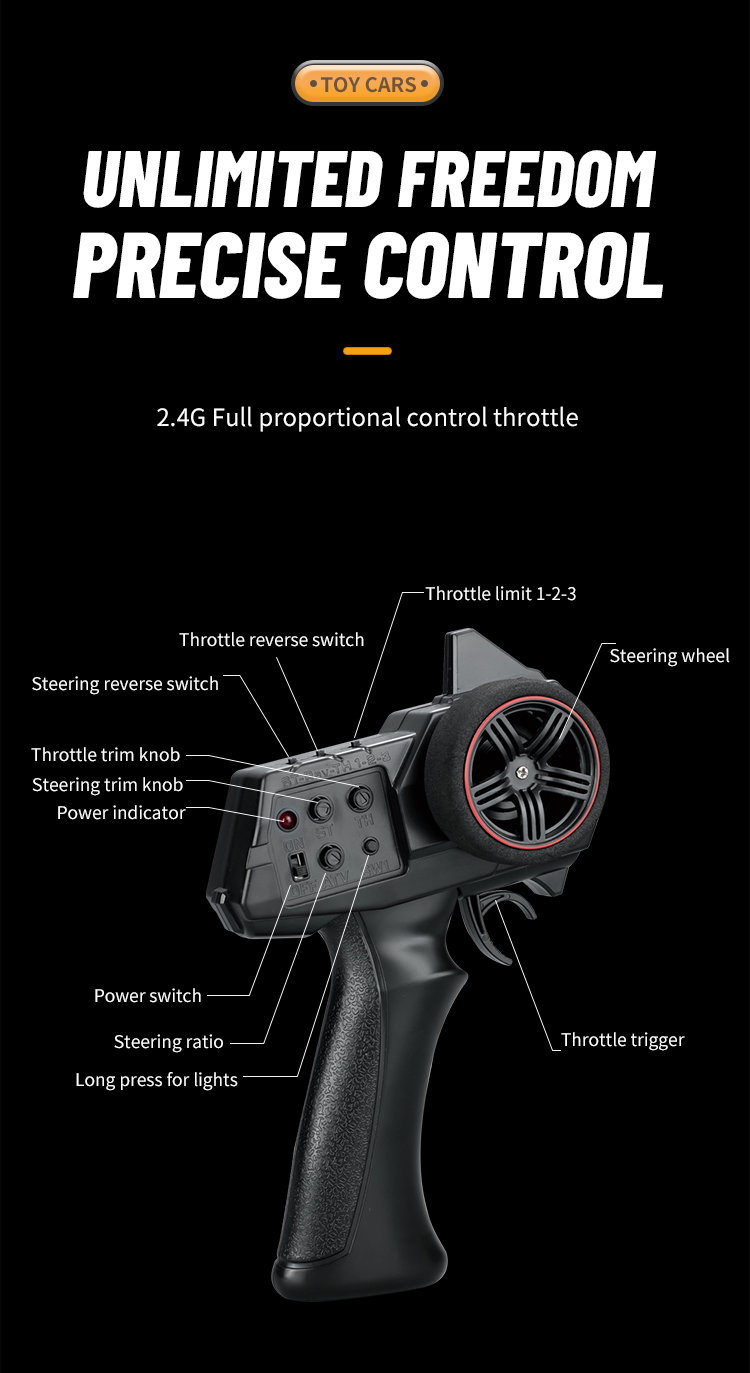

• The remote control panel uses knob-type steering fine-tuning knobs, throttle fine-tuning knobs, and rotation steering ratio knobs for more accurate and delicate adjustment.
• It has smooth throttle control. Stepless speed change plus full proportional steering has a small turning radius and high flexibility.

VI. Remote Control System

• Remote control category: Full proportional synchronous control system (gun control).
• Remote control frequency: 2.4GHz (supports multiple vehicles competing on the same field).
• Remote control distance: Approximately 100 meters.
• Remote control battery: 4 AA batteries (not included).

VII. Vehicle Parameters

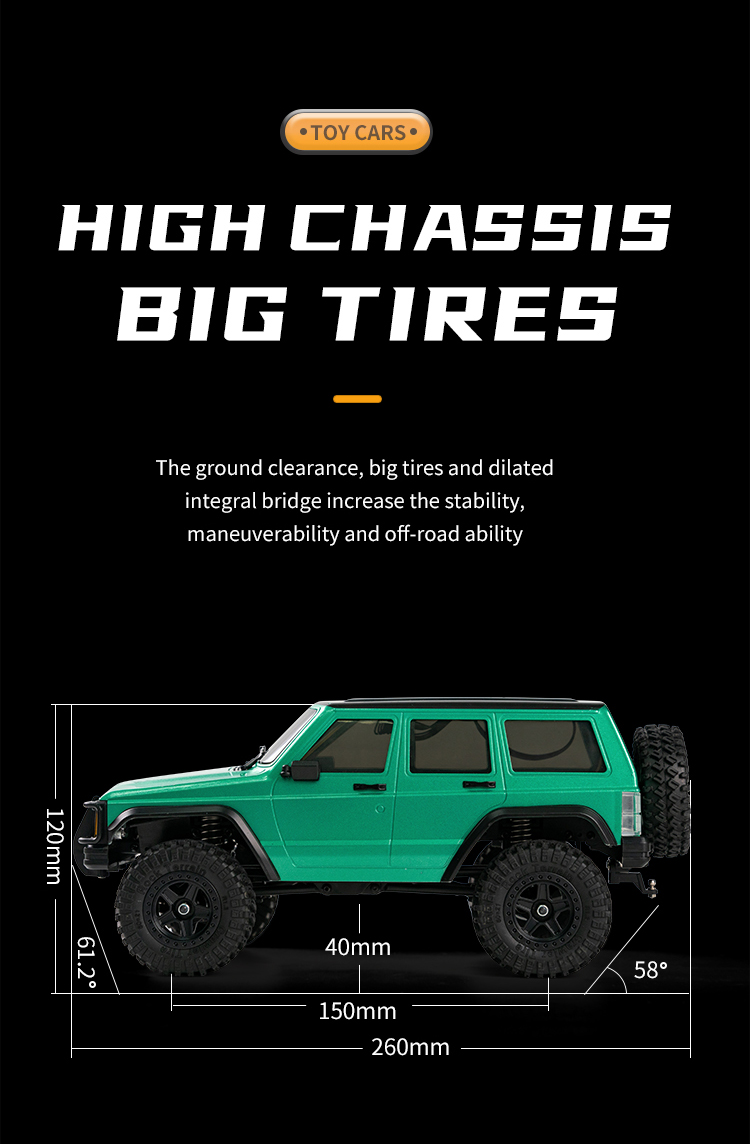

Wheelbase parameters: Wheelbase 150mm, track width 110mm, wheel diameter 60mm.

VIII. Battery and Charging

• Body battery: 7.4V 600mAH lithium-ion battery (JST red head).
• Charging time: 2 hours (USB charging cable).
• Charging method: USB 1000MA charging cable.

IX. Protection Functions

Overcharge protection, stall protection, high temperature protection, and low voltage protection.

X. Complete List

1. Whole vehicle
2. Remote control
3. Instruction manual
4. Lithium battery
5. USB charging cable
6. Stickers
