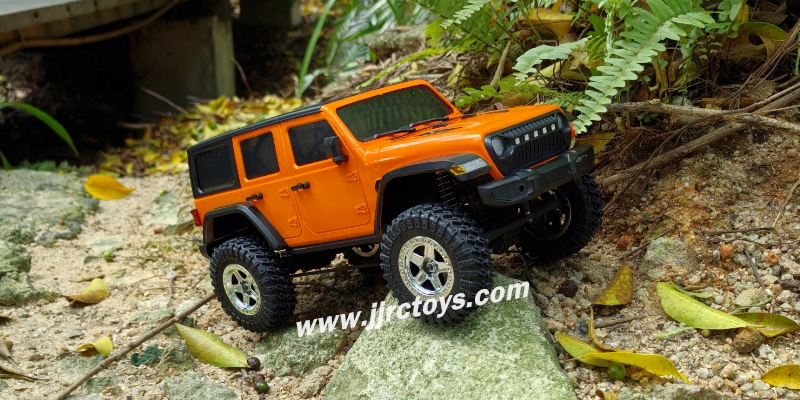

JJRC C8801 1/18 2.4Ghz 4WD Off-road RC Crawler
The JJRC C8801 simulated rc crawler is a remarkable remote-controlled vehicle. It features detailed design, excellent off-road performance, and comes with a full set of accessories.
This vehicle offers a great combination of realism and functionality, making it a must-have for enthusiasts with its various colors, metal structure, and advanced control system.
I. Product Overview
- Brand name: JJRC
- Model: C8801
- Product name: Simulated crawler
- Product materials: hardware, electronics, plastic
- Optional colors: gray, orange, blue, green
II. Size and Weight
- Product size: 26*13*12CM
- Body weight: 490g
III. Lighting Configuration
- Lighting configuration: LED headlights, front turn signals, and rear turn signals. Adopting simulated linked lights. The middle grille spotlight is controlled by the third channel (5 modes: constant light, flowing light, fast flashing, slow flashing, and left-right flashing).
IV. Vehicle Characteristics
- Simulation details: Continuing the simulated details. Having a complete and detailed ABS body shell. Quick-release design without body clips. Including simulated details such as spare tires, tow hooks, rearview mirrors, door handles, and windshield wipers.
- Suspension system: Metal girder structure, front and rear independent suspension shock absorbers. The suspension geometry adopts a 4-link design to increase articulation and reduce axle effect. High ground clearance of the chassis, widened one-piece axle with enlarged tires, and metal gears on the axle. Multi-link design increases body stability and off-road climbing ability.
- Power system: Low center of gravity battery installation position. Large front and rear straight axles plus drive shafts. 20A brushed electronic speed controller. High-torque external 370 carbon brush motor. 9-gram high-torque metal gear servo.
V. Remote Control Characteristics
- Remote control category: Full proportional synchronous control system (gun control)
- Remote control frequency: 2.4GHz (supports multiple vehicles competing on the same field)
- Remote control distance: Approximately 100 meters
- Remote control battery: 4 AA batteries (not included)

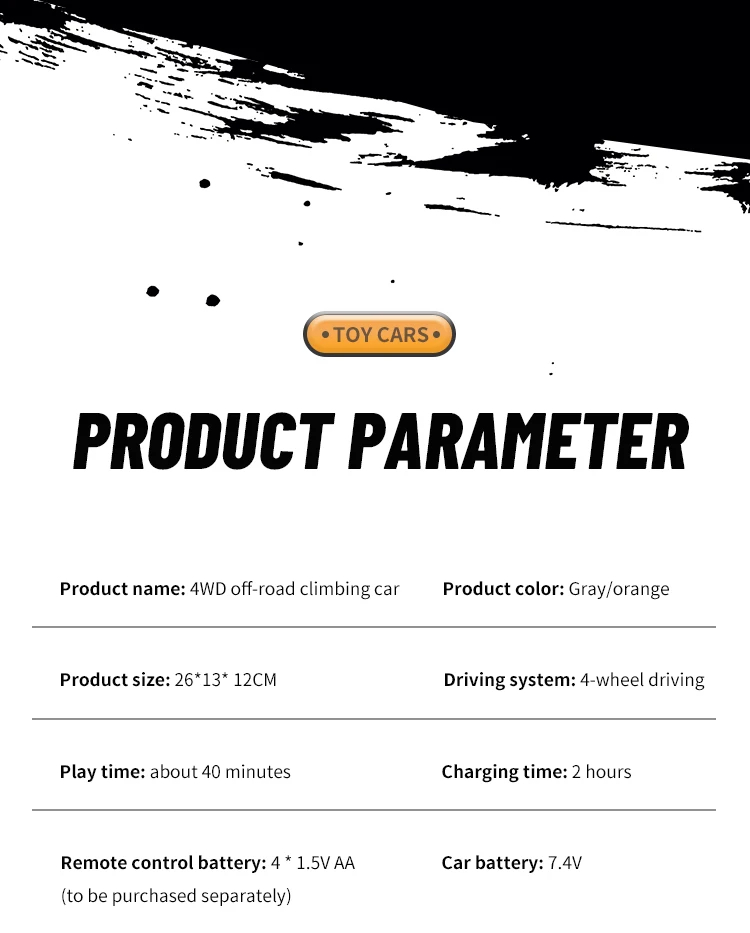

VI. Technical Parameters
- Wheelbase parameters: Wheelbase 150mm, track width 110mm, wheel diameter 60mm.
- Differential structure: Not specified.
- Drive motor: 370 carbon brush black motor (24*38MM, motor shaft 2mm, motor tooth 0.5 module, 10 teeth, middle aperture 2.0).
- Servo: 3-wire 9-gram metal gear servo.
- Electronic speed controller/receiver: 20A electronic speed controller/integrated receiver control.
- Body battery: 7.4V600mAH lithium-ion battery (JST red head).
- Operating time: 10 - 40 minutes.
- Charging time: 2 hours (USB charging cable).
- Charging method: USB1000MA charging cable.
- Protection functions: Overcharge protection, stall protection, high temperature protection, and low voltage protection.
VII. Full Set List
- Whole vehicle, remote control, instruction manual, lithium battery, USB charging cable, stickers.
