I. Basic Product Information

• Brand name: JJRC
• Model: C8808
• Materials: Hardware, electronics, plastic
• Product size: 21*13*11CM
• Body weight: 95.5g
• Remote control weight: 134g
• Optional colors: White, red, taupe

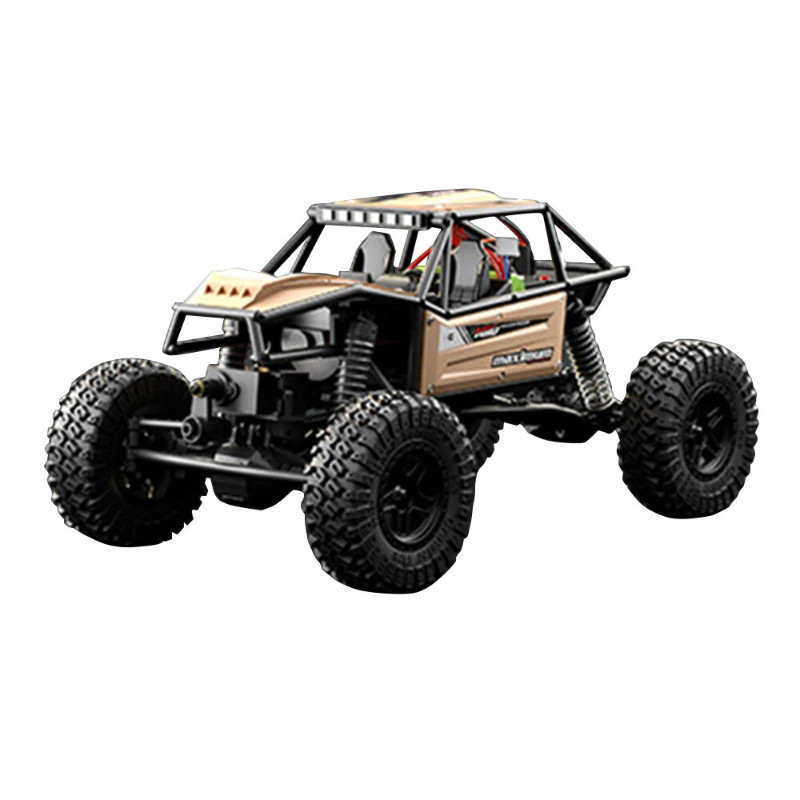

II. Product Appearance Features

• Cage-like structure without departure angle. Four shock absorbers are directly connected to the car body, with larger shock absorption stroke and greater torsion angle, providing obstacle-free off-road climbing.
• The roof is equipped with high-brightness LED spotlights.

III. Product Structure and Performance

• Metal girder structure provides stable support.
• Front and rear independent suspension shock absorbers. The four-link suspension geometry design, when combined with the chassis, increases articulation and reduces shaft effect, providing excellent driving performance both indoors and outdoors.
• High ground clearance of the chassis, enlarged tires and widened one-piece axle. The axle has metal gears. The multi-link design increases body stability and off-road climbing ability.
• The low-center-of-gravity battery installation position makes the frame's center of gravity more stable.
• The large front and rear straight axles combined with transmission ensure sufficient operating space for the suspension system and guarantee outdoor climbing and walking performance.

IV. Power System

• 20A brushed electronic speed controller can generate strong output power. With a low-linear attitude, it can run and climb.
• The power uses a high-torque external 370 carbon brush motor, providing appropriate torque to conquer steep slopes and maintaining a minimum height while protecting the gears.
• The three-wire 9-gram metal gear steering gear is durable, with a steering angle of up to 45 degrees and sensitive response.

V. Remote Control System

• Remote control category: Full proportional synchronous control system (gun control).
• Remote control frequency: 2.4GHz (supports multiple vehicles competing on the same field).
• Remote control distance: Approximately 100 meters.
• Remote control battery: 4 AA batteries (not included).

The remote control panel uses knob-type steering fine-tuning knobs, throttle fine-tuning knobs, and rotation steering ratio knobs for more accurate and delicate adjustment. It has smooth throttle control, stepless speed change plus full proportional steering, and a small turning radius with high flexibility.

VI. Vehicle Parameters

• Wheelbase parameters: Wheelbase 150mm, track width 110mm, wheel diameter 60mm.

VII. Battery and Charging

Body battery: 7.4V 600mAH lithium-ion battery (JST red head).

Charging time: 2 hours (USB charging cable).

Charging method: USB 1000MA charging cable.

VIII. Protection Functions

Overcharge protection, stall protection, high temperature protection, and low voltage protection.

IX. Complete List

1. Whole vehicle.
2. Remote control.
3. Instruction manual.
4. Lithium battery.
5. USB charging cable.
6. Stickers.
