I. Basic Information

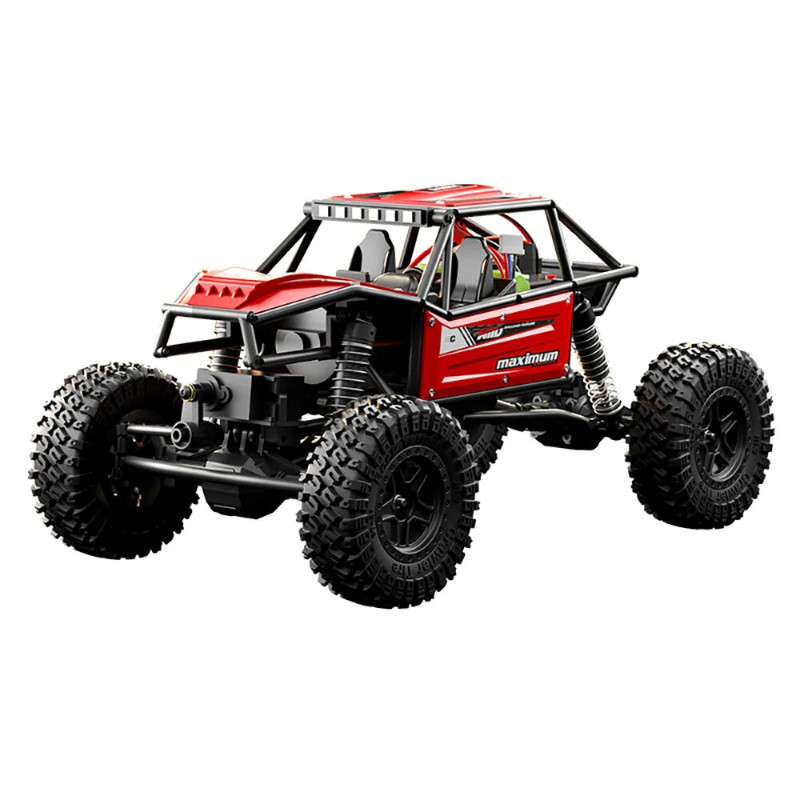

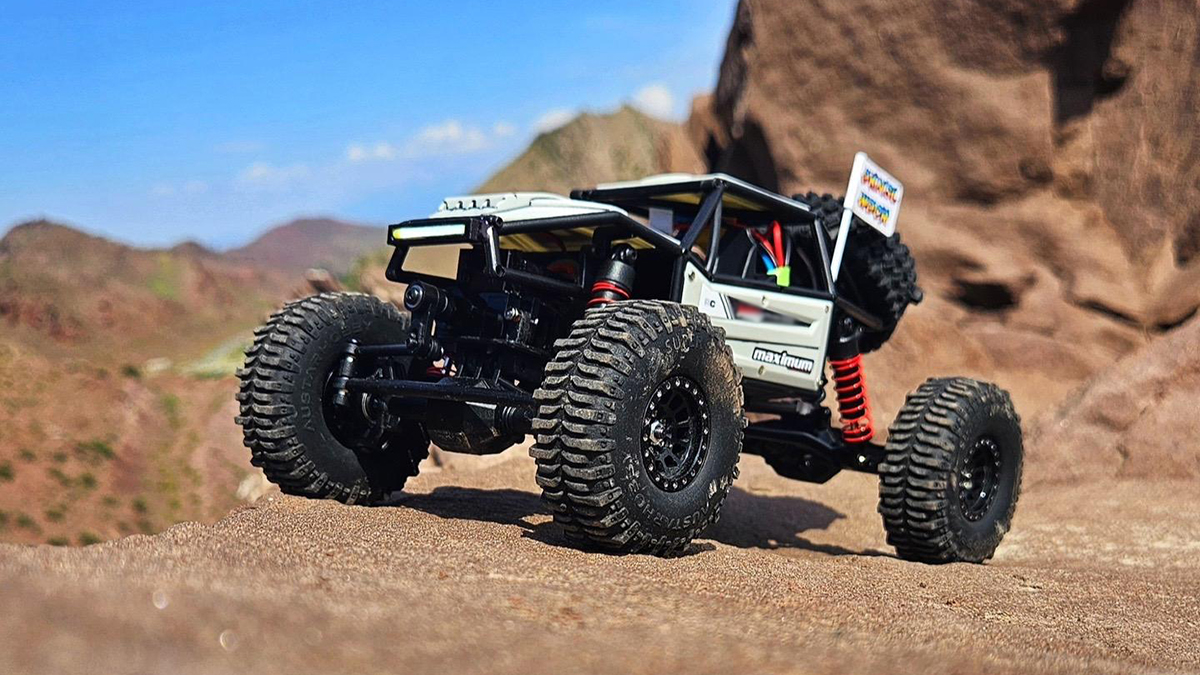

1. Brand/Model: JJRC C8808
2. Materials: Hardware, electronics, plastic

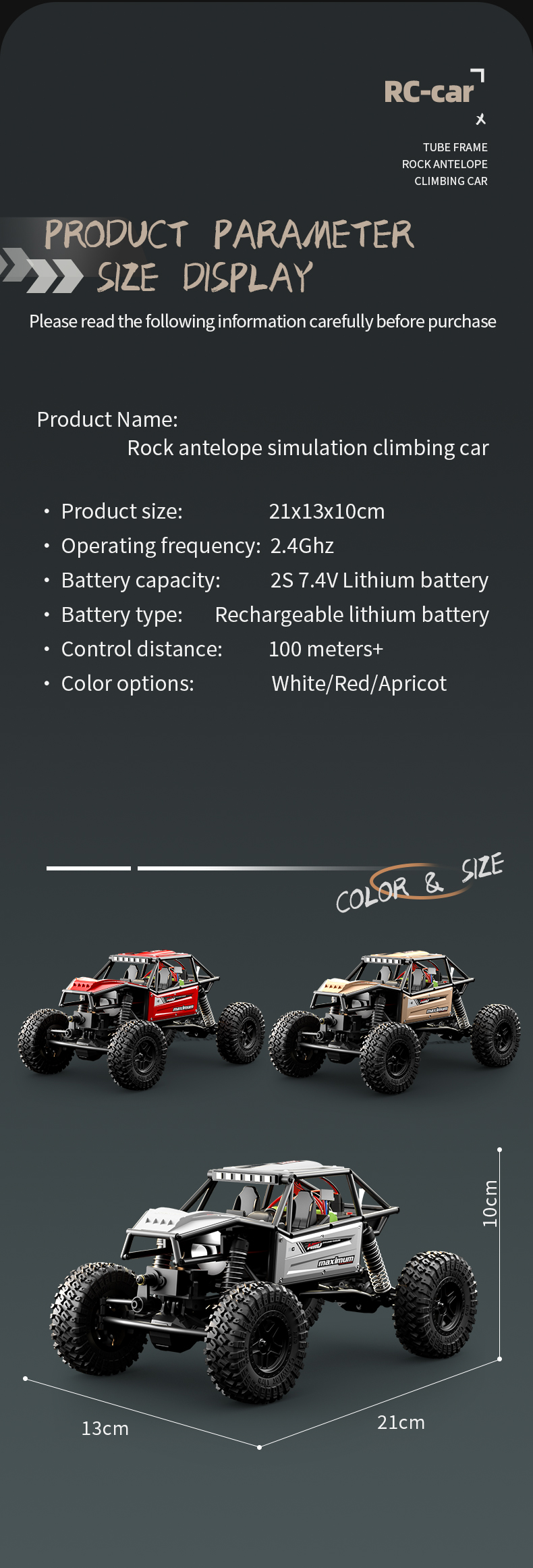

3. Product Size: 21 × 13 × 11 cm
4. Vehicle Weight: 95.5 g
5. Remote Controller Weight: 134 g
6. Available Colors: White, Red, Taupe
7. Wheelbase Parameters:
   • Wheelbase: 150 mm
   • Track Width: 110 mm
   • Wheel Diameter: 60 mm

II. Power & Control System

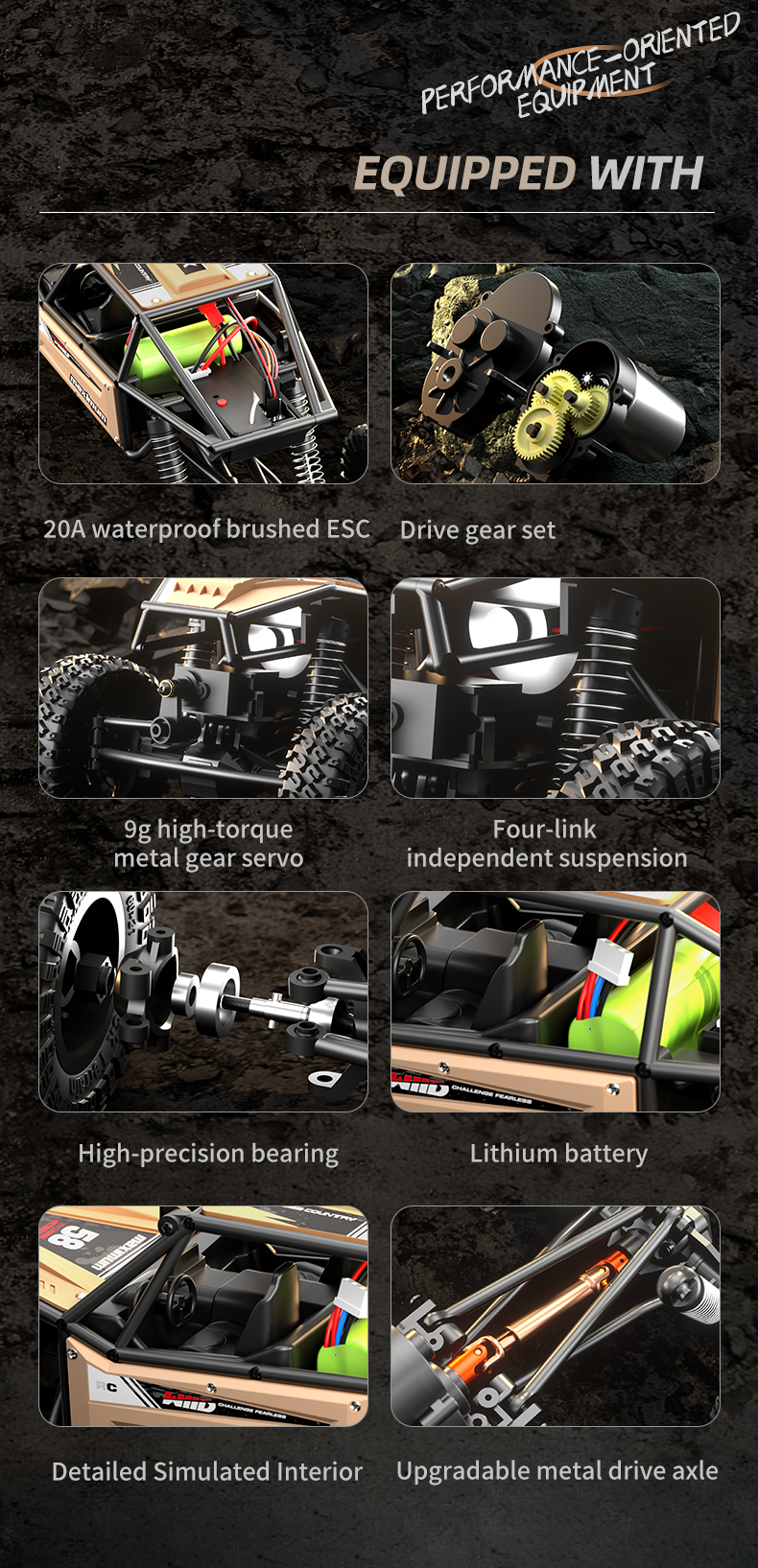

1. Motor: High-torque external 370 brushed motor, delivering strong torque for steep climbing while protecting the transmission gears.
2. ESC:20A brushed electronic speed controller with stable and linear output, suitable for driving and climbing.
3. Servo: 9g three-wire metal gear servo with up to 45° steering angle and quick response.
4. Battery: 7.4V 600mAh Li-ion battery (JST red connector).
5. Remote Control System:
   • Full proportional synchronous control (pistol-style transmitter)
   • Frequency: 2.4GHz (supports multiple vehicles simultaneously)
   • Control Distance: Approx. 100 meters
   • Transmitter Battery: 4 × AA batteries (not included)

III. Functions & Features

1. Cage-style body structure with no departure angle, designed for improved off-road capability.
2. Four shock absorbers directly mounted to the body, offering longer suspension travel and greater articulation for obstacle-free climbing.
3. Metal ladder-frame structure provides strong and stable chassis support.

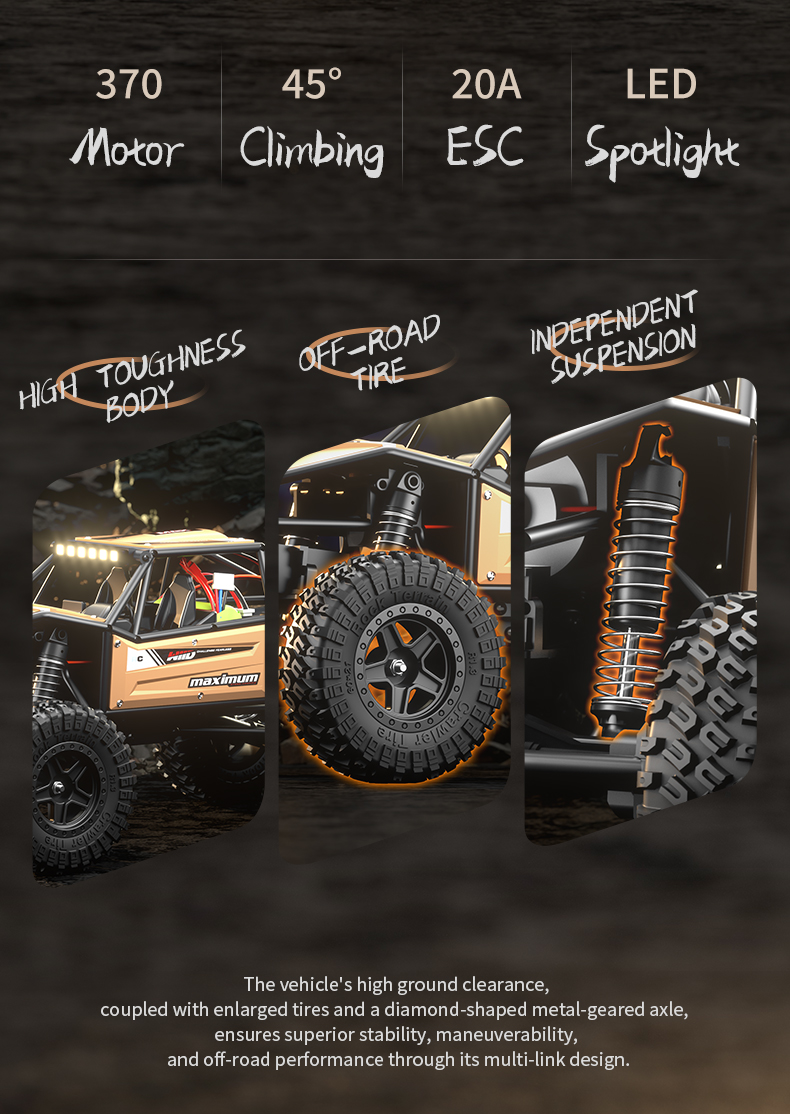

4. Front and rear independent suspension with four-link geometry design, improving articulation and reducing torque twist.
5. High ground clearance chassis combined with enlarged tires and widened one-piece axles for enhanced off-road performance.
6. Axles equipped with metal gears for improved durability.
7. Low center-of-gravity battery mounting position enhances vehicle stability.
8. Large front and rear straight axles with transmission ensure sufficient suspension travel and excellent outdoor climbing performance.
9. Roof-mounted high-brightness LED spotlights.
10. Transmitter features steering trim, throttle trim, and steering ratio adjustment knobs for precise and smooth control, with full proportional throttle and steering and a small turning radius.
11. Built-in protection functions: overcharge protection, stall protection, high-temperature protection, and low-voltage protection.

IV. Package Included

1. JJRC C8808 RC vehicle x1
2. Remote controller x1
3. Instruction manual x1
4. 7.4V lithium battery x1
5. USB charging cable x1
6. Stickers x1
