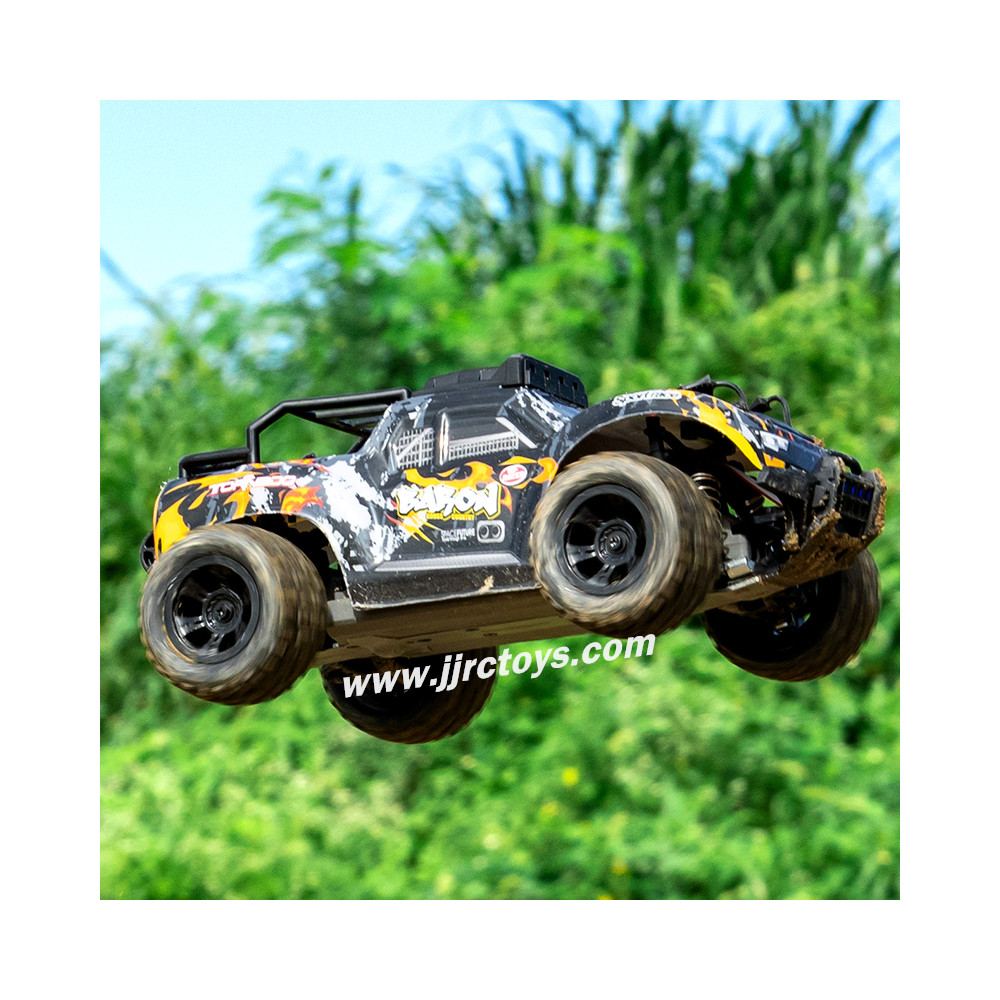

JJRC C8810 1/18 4WD High Speed Off-road Monster RC Car

I. Basic Information

• Brand name: JJRC
• Model: C8810 (Model A) / C8810 (Model B).
• Scale: 1/18.
• Materials: hardware, electronics, plastic.
• Colors:
  • Model A: Available in black color.
  • Model B: Available in black-orange color.
• Sizes and Weights:

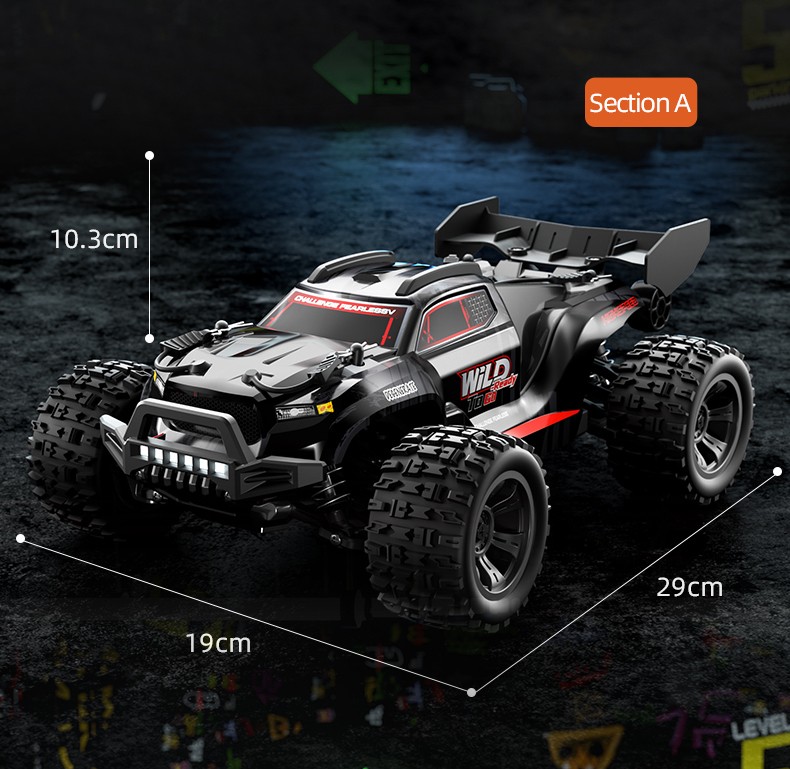

  • Model A: Product size is 29*19*10.3 CM. Remote control specification is 12.6*8.2*18.5 CM. Body weight is 840g. Remote control weight is 190g.

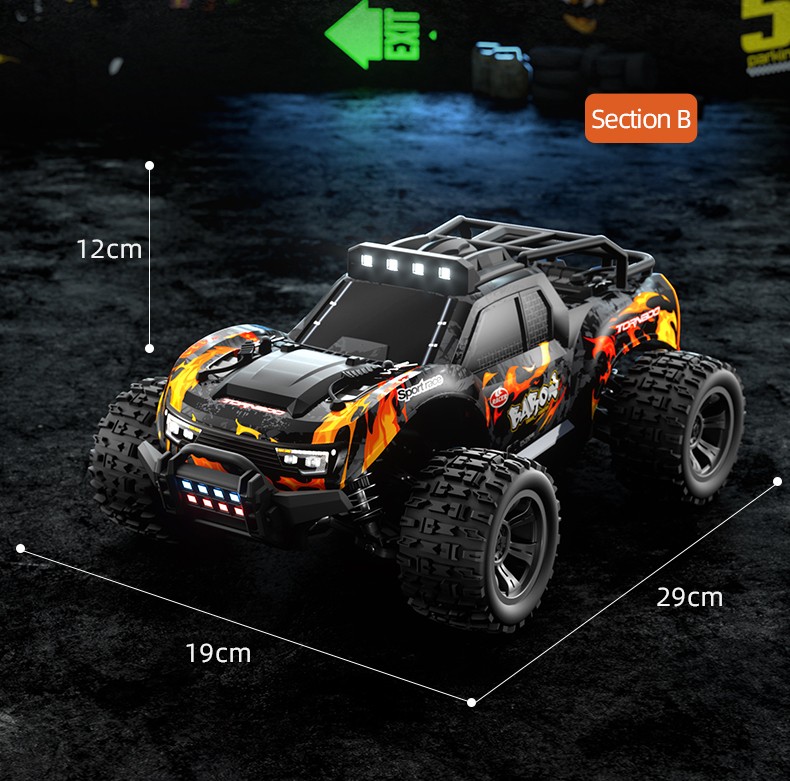

  • Model B: Product size is 29*19*12 CM. Remote control specification is 12.6*8.2*18.5 CM. Body weight is 880g. Remote control weight is 190g.

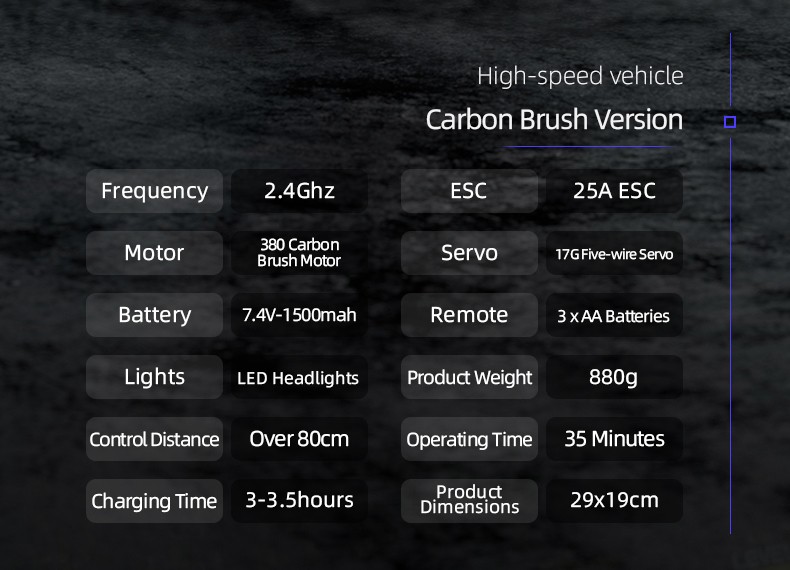

II. Performance Parameters

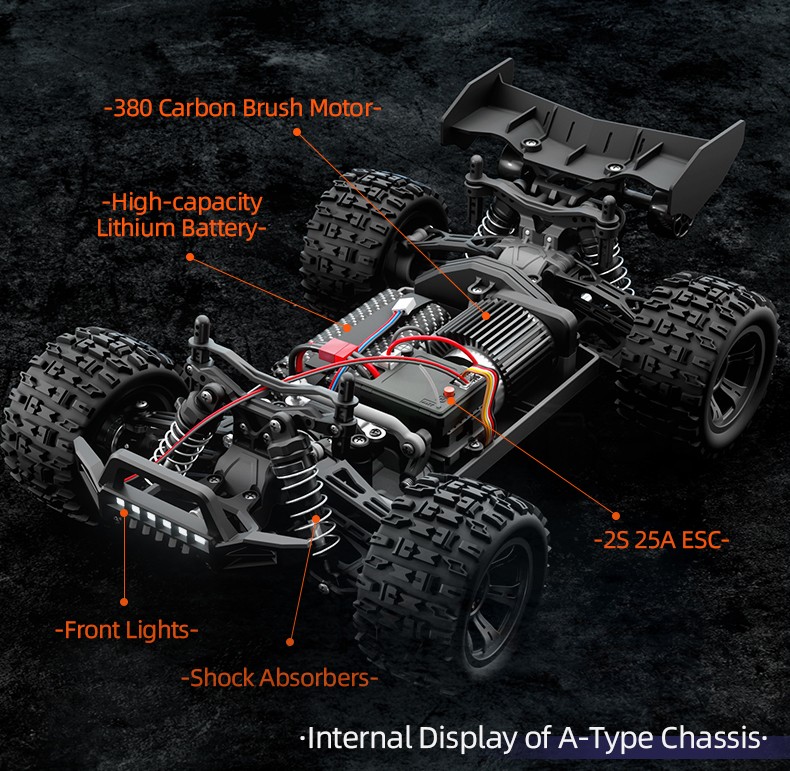

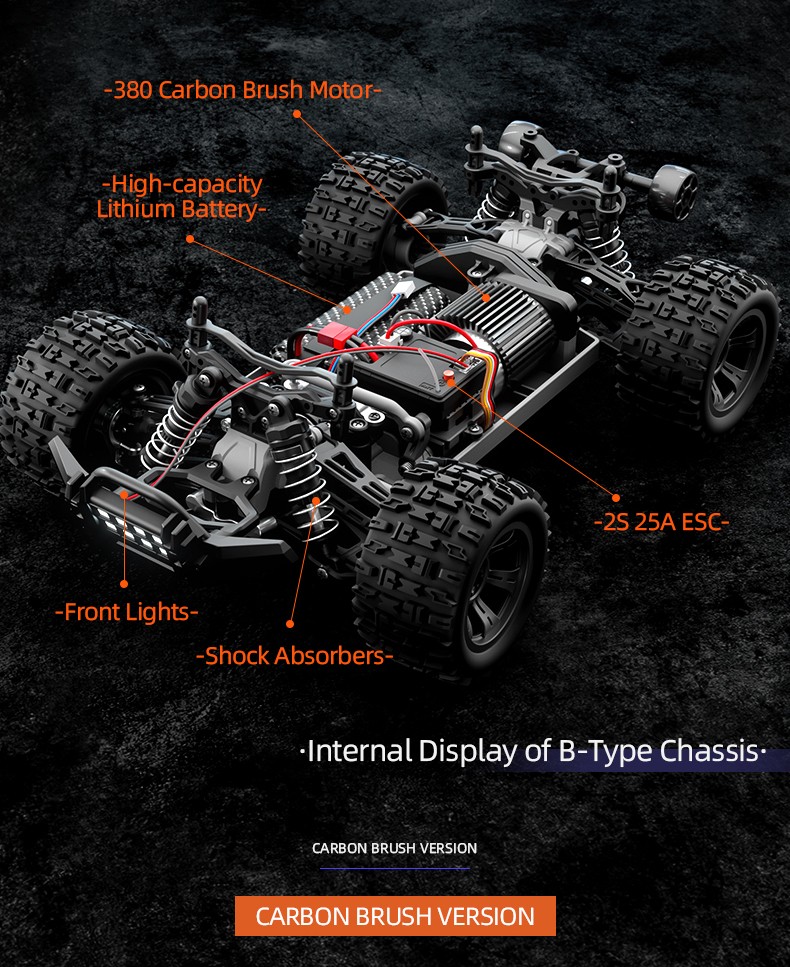

Power System:

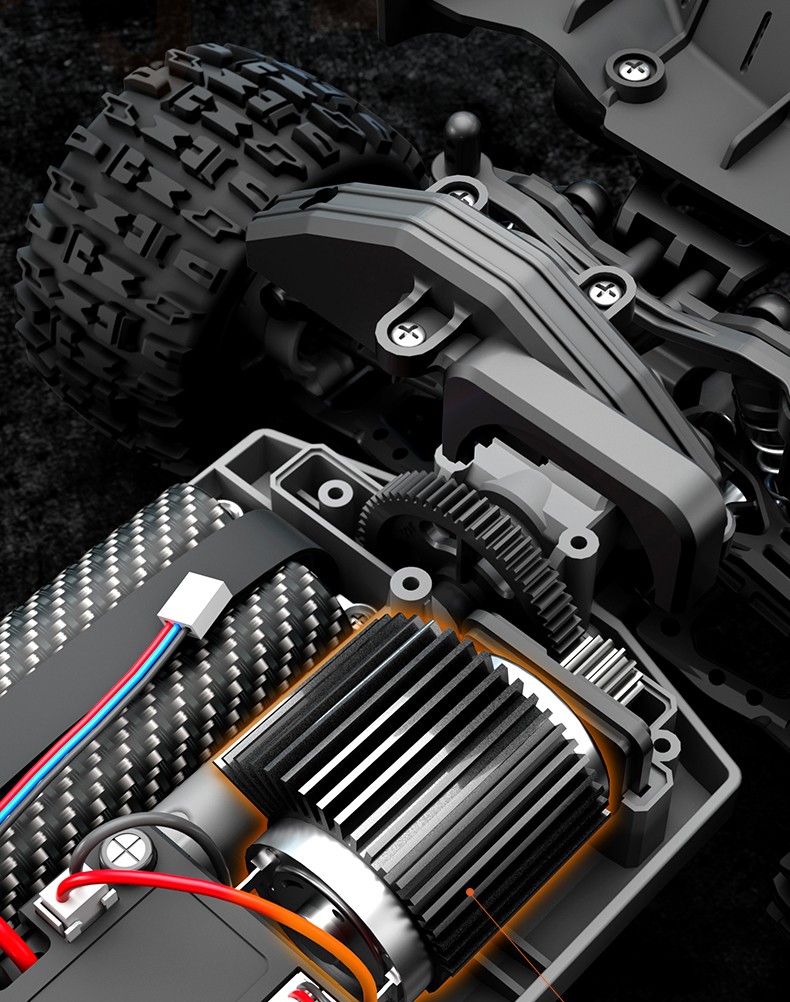

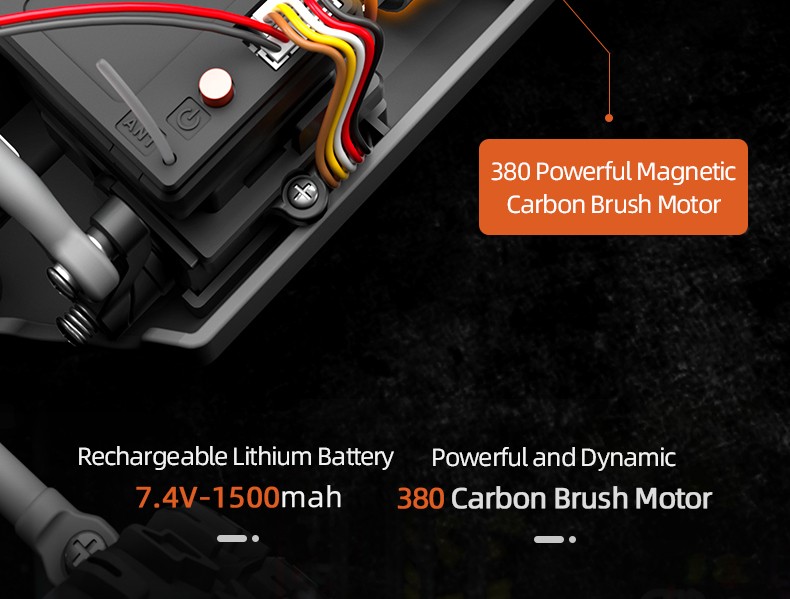

• Motor: RC380 high-speed carbon brush strong magnet (with magnetic protection and heat sink).

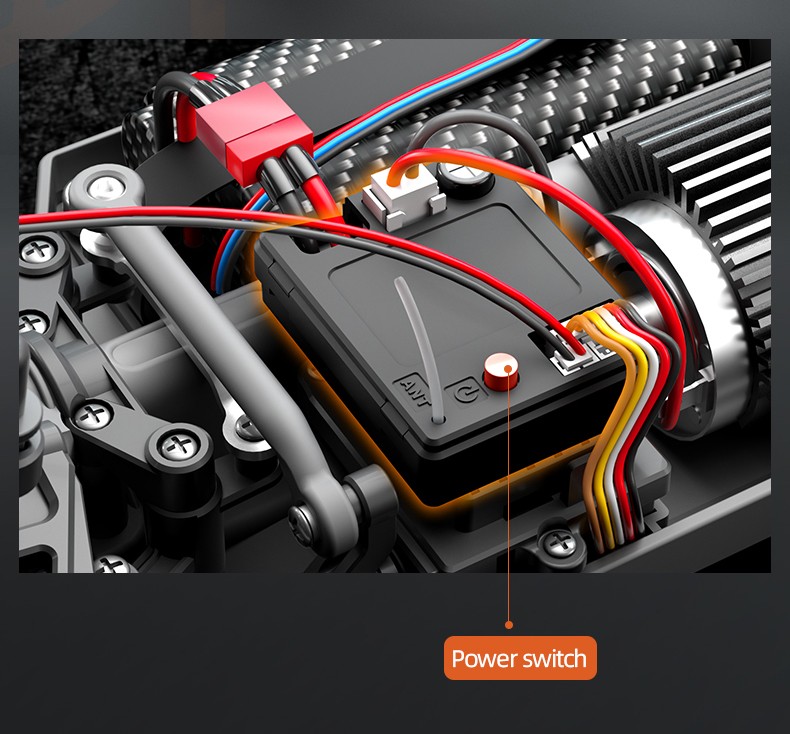

• Electronic speed controller/receiver: 25A 2S integrated control.
• Body battery: 7.4V 1500mAH lithium-ion battery (T plug).

Control Components:

• Servo: 5-wire 17g servo.
• Remote control battery: 3 "AA" batteries (need to be purchased separately).
• Charger: USB charging cable.

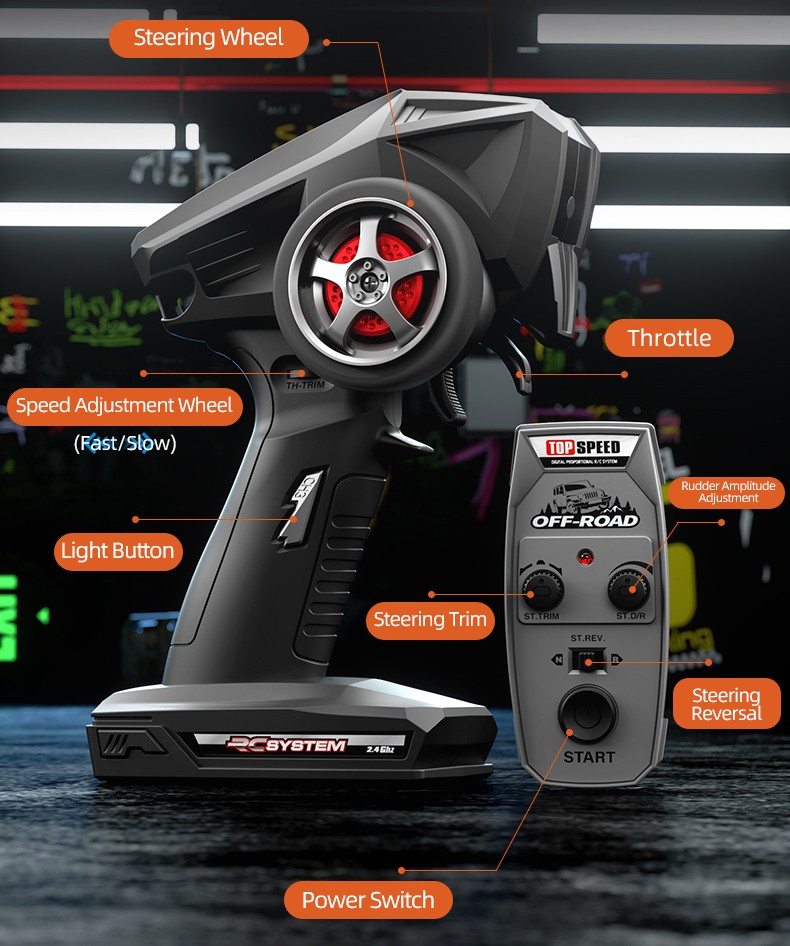

Remote Control Characteristics:

• Frequency: 2.4GHz (supports multiple vehicles competing on the same field).
• Remote control distance: ≥80 meters.
• Remote control category: full proportional synchronous control system (gun control).

Driving Performance:

• Battery life: 10 - 30 minutes (depending on driving speed).
• Charging time: 3 - 3.5 hours (USB charging cable).
• Wheelbase parameters: Wheelbase 165mm, track width 155mm, wheel diameter 67mm.
• Speed: 40 km/h.

Protection Functions:

Charging protection, jam protection, high temperature protection, and low voltage protection.

III. Product Features

• Simulated Control Experience:
  • Adopts simulated structure design, has the handling feeling of a real car, realizes full proportional stepless speed change, high-speed driving, rapid acceleration, deceleration, braking, reversing, left turning, and right turning.

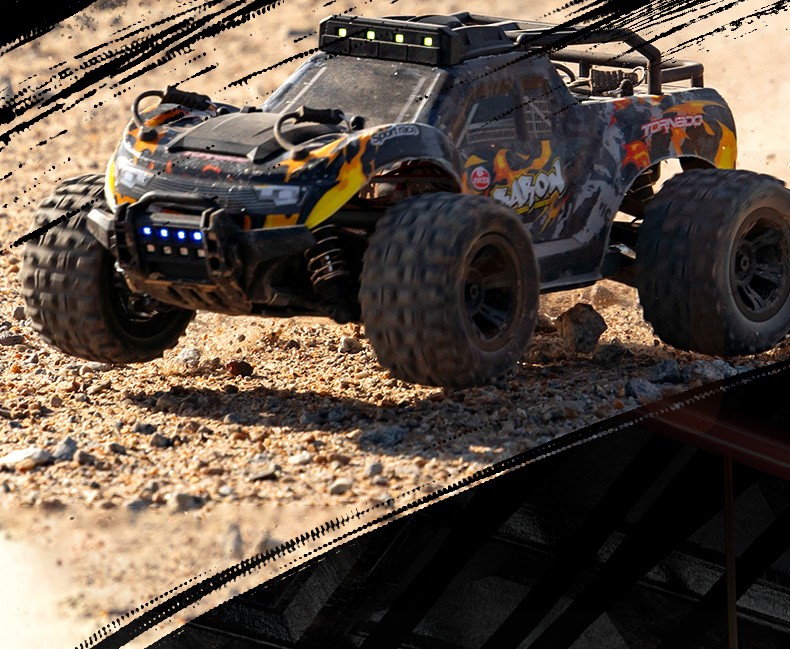

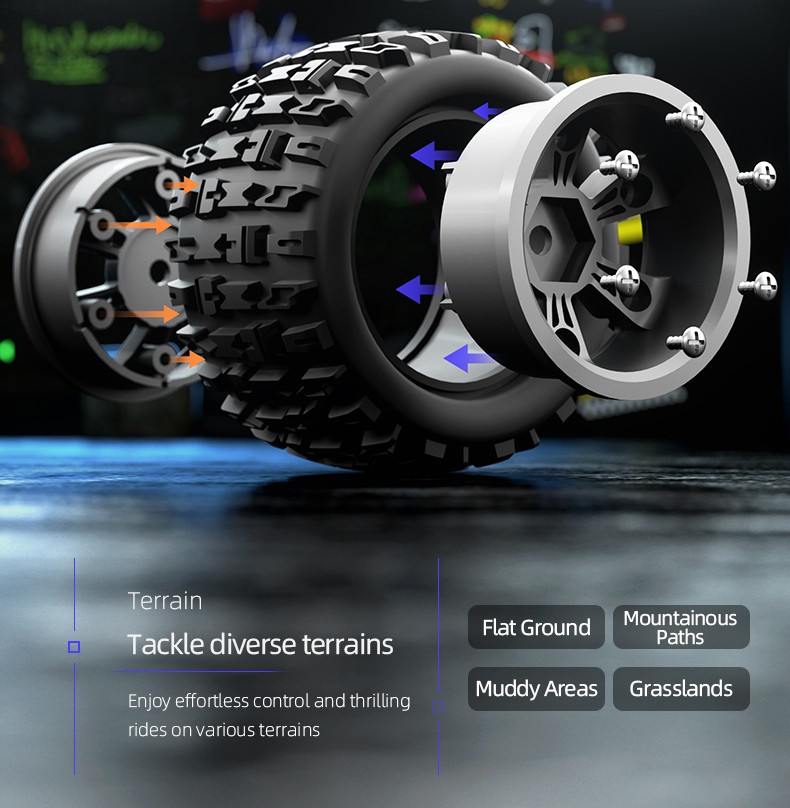

• Applicable to Multiple Venues:

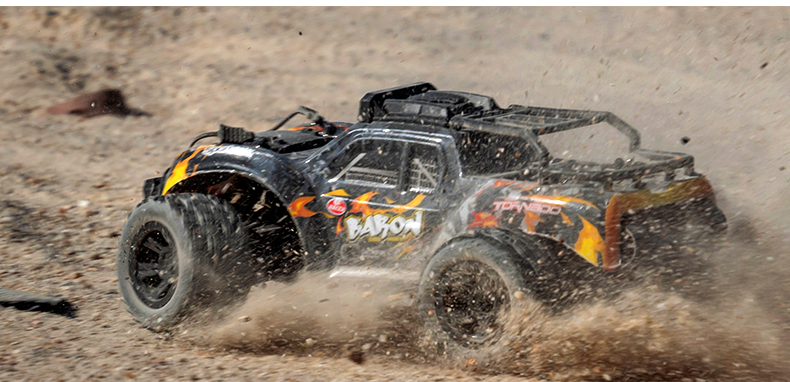

  • Applicable venues include flat ground, sand, mud, and grass.
• Four-wheel Drive and Suspension:

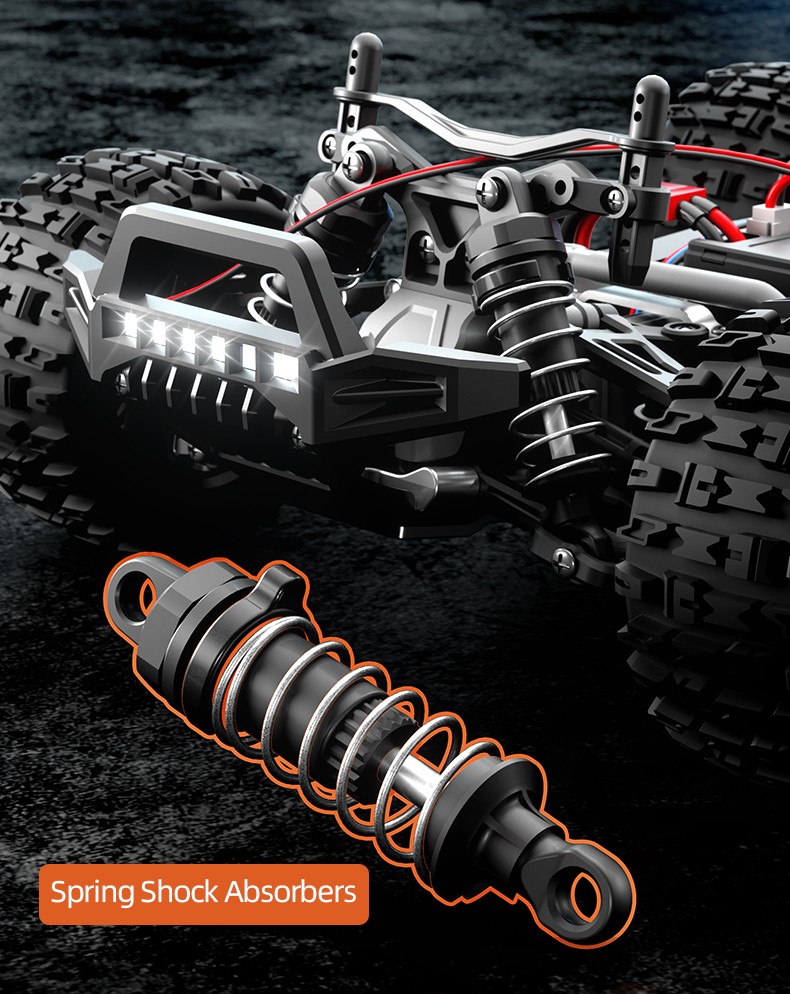

  • Four-wheel drive, front and rear upright spring shock absorption, double wishbone independent suspension system.
• Advanced Remote Control System:
  • 2.4G full proportional synchronous remote control system, full proportional throttle/steering; 2.4G splash-proof four-way 30A integrated electronic speed controller/receiver.
• Transmission Structure:
  • Front wheel cross ball joint universal joint drive shaft, rear split dog bone drive shaft.
• Ball Bearings and Metal Components:
  • The whole vehicle uses 15 ball bearings.

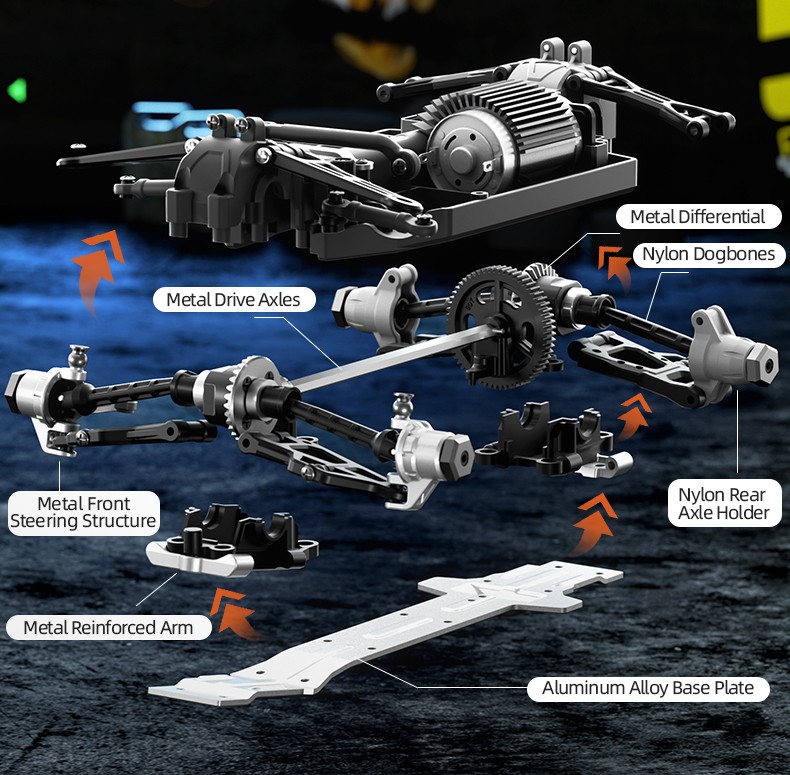

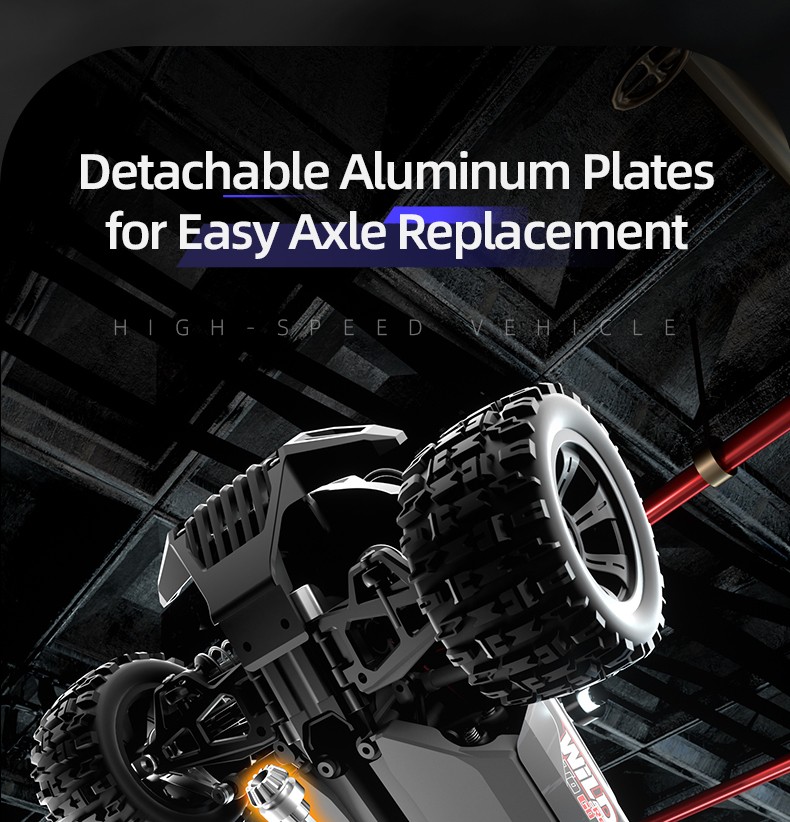

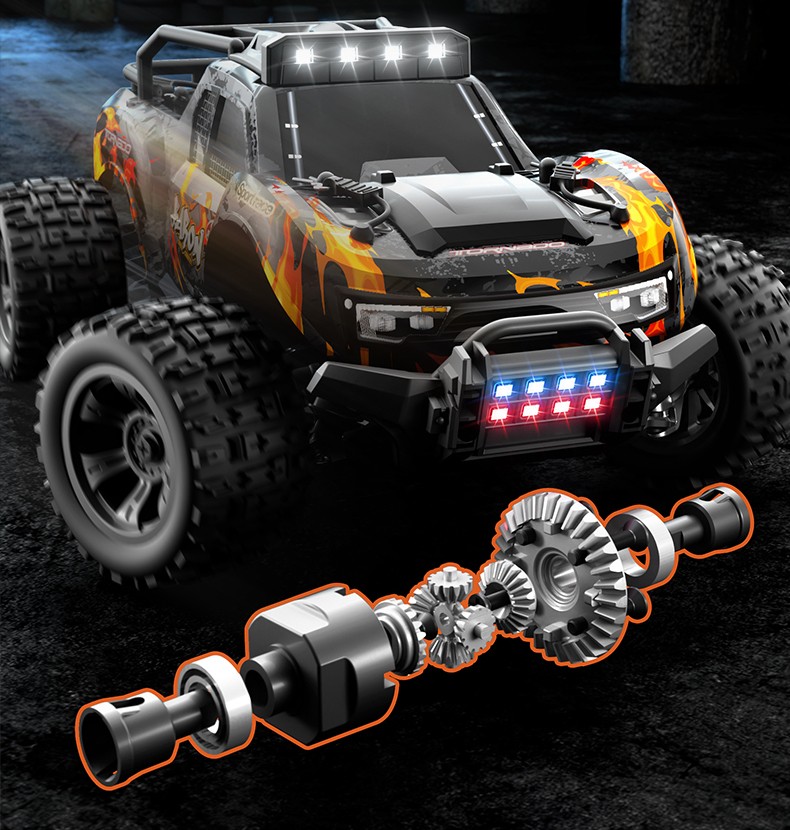

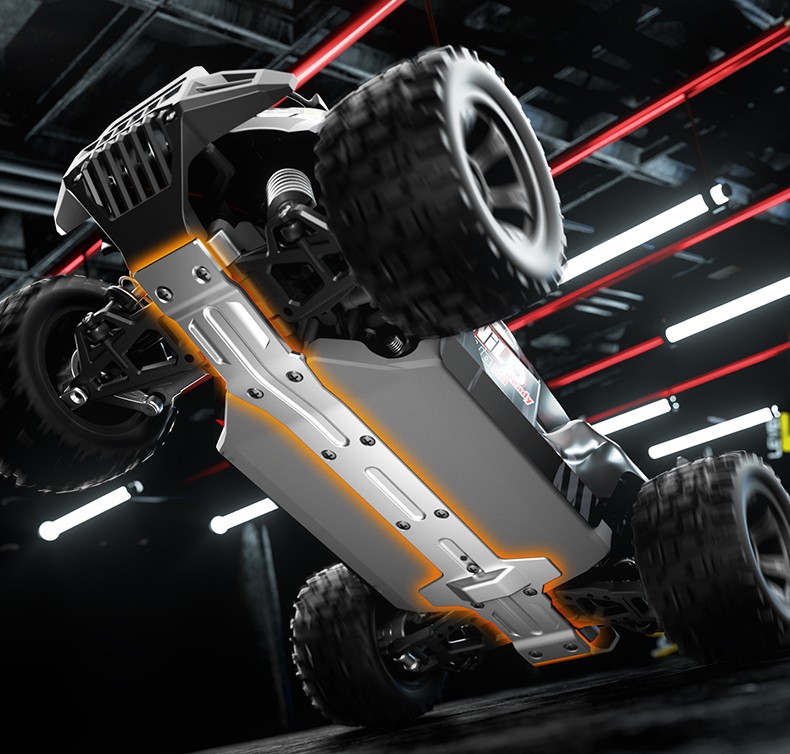

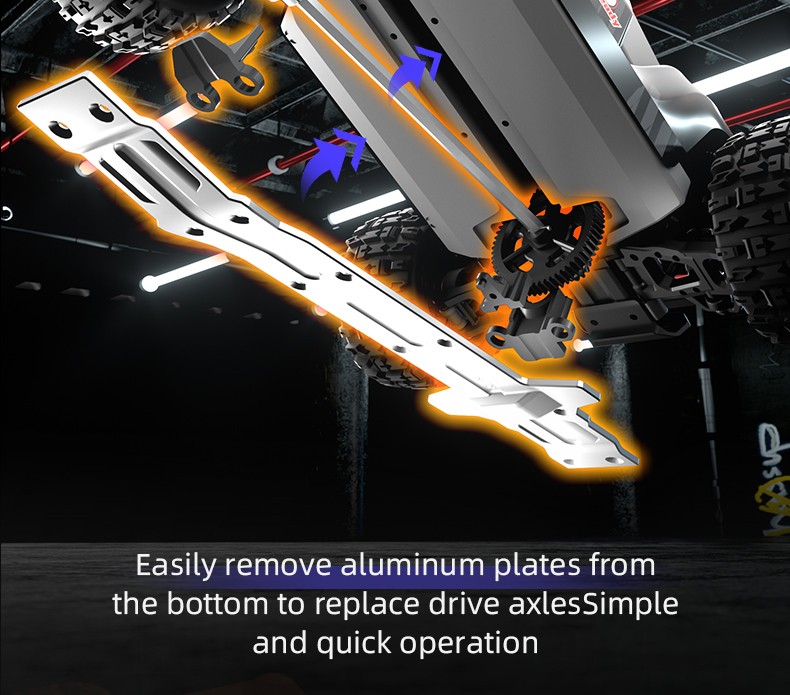

  • Metal chassis reinforcement plate, metal differential, metal gear, metal steering knuckle, metal front and rear arm codes, metal central drive shaft.
• Car Shell Characteristics:
  • The car shell is made of high-toughness explosion-proof PVC car shell and comes with anti-loss silicone buckles.

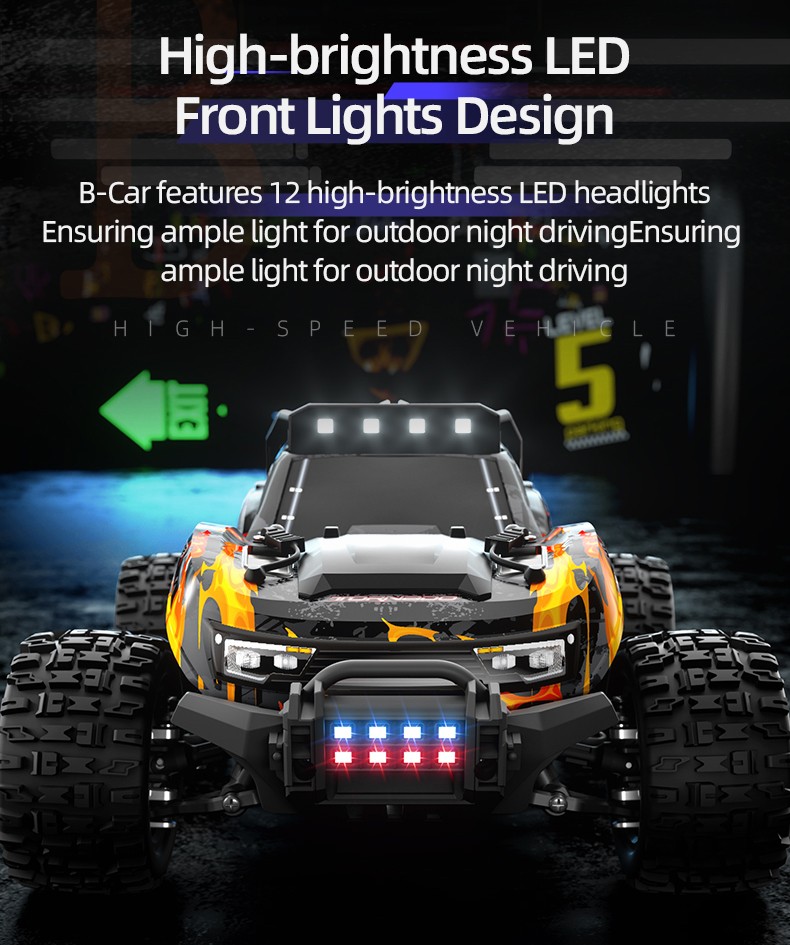

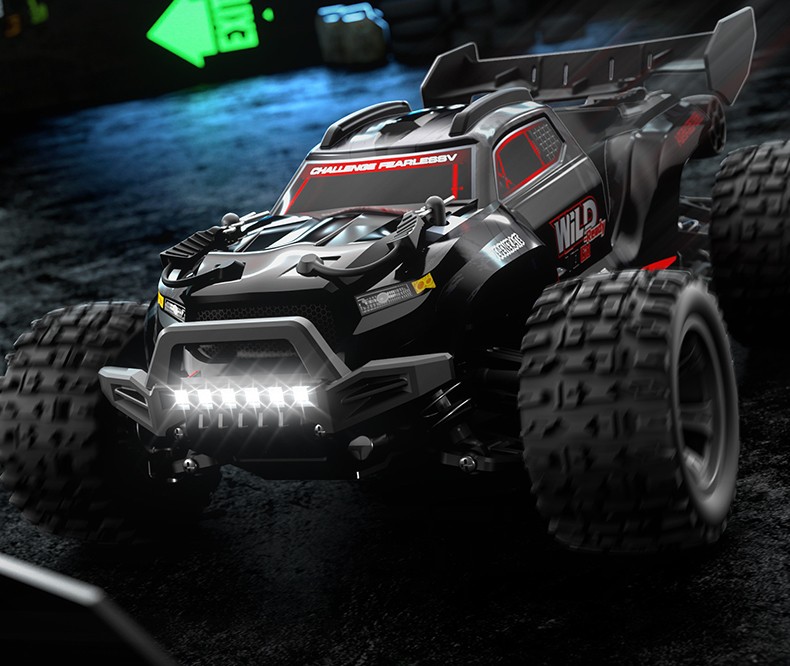

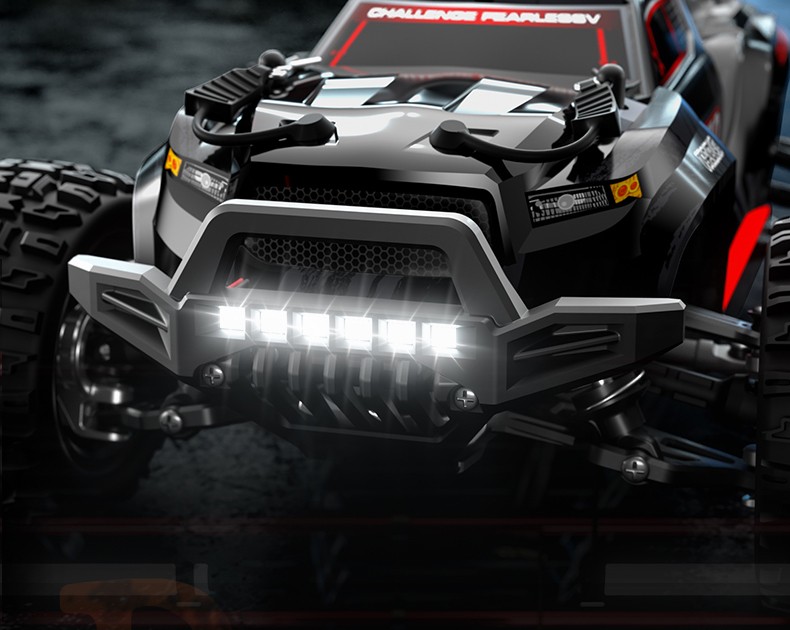

• Lighting Configuration:
  • Equipped with LED headlights in different modes. For example, Model A is equipped with LED front white lights, and Model B is equipped with LED front warning lights and roof white lights, and there are three modes (constant on, slow flashing, and fast flashing).
• Other Accessories:

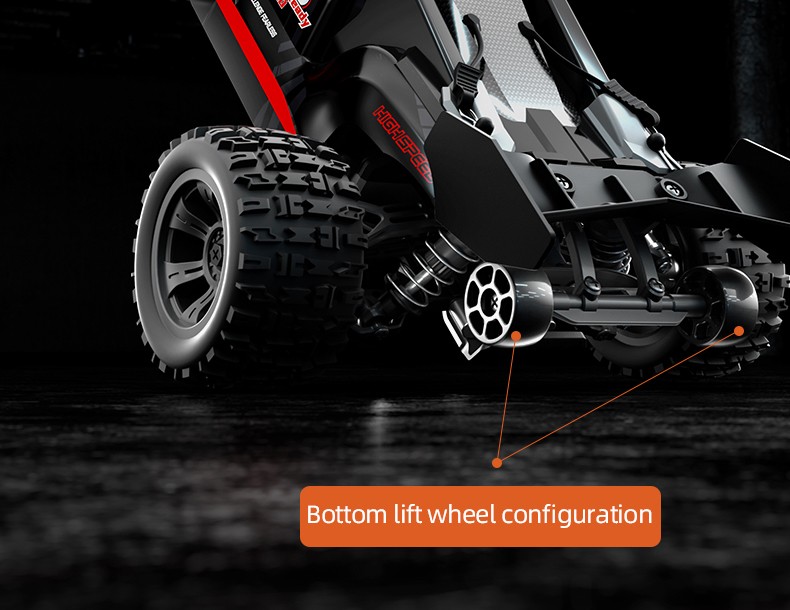

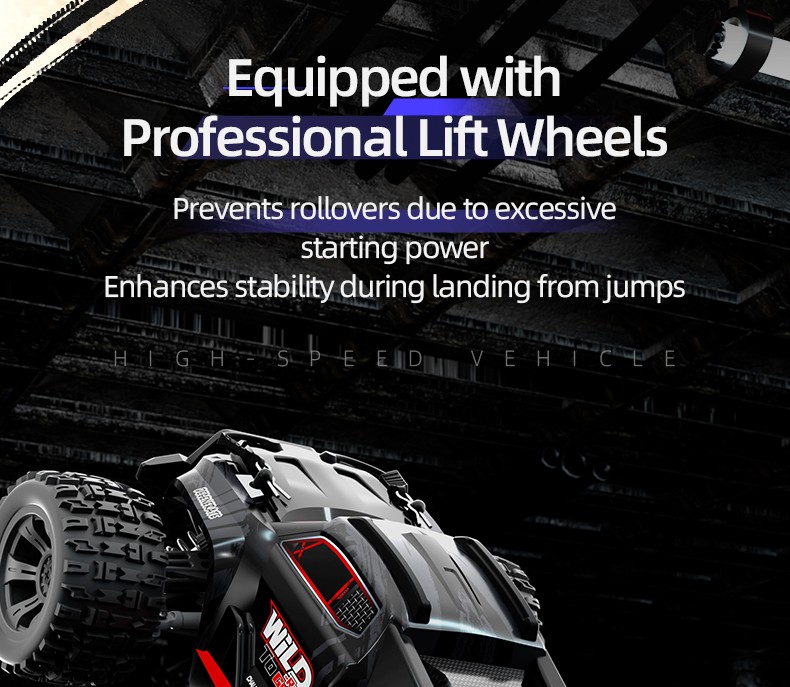

  • Equipped with a head-up wheel and simulated large-foot tires with strong grip.

IV. Packaging Contents

1. Whole vehicle.
2. Remote control.
3. Chinese and English instruction manuals.
4. Lithium battery.
5. USB charger.
6. Shock absorber adjustment buckle.
7. Metal bolt.
8. Anti-loss silicone buckle.
9. Cross screwdriver.
