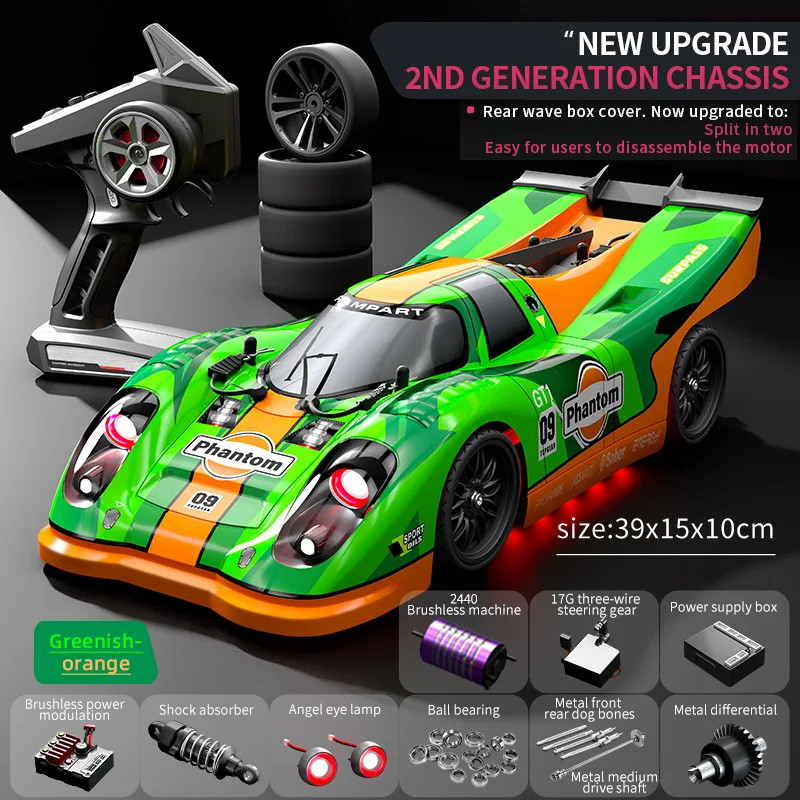

I. Product overview

• Brand name: JJRC
• Model: C8806
• Scale: 1/16
• Product size: 39*15*10CM.
• Remote control size: 13*7.5*21CM.
• Body weight: 920G.
• Remote control weight: 170G.
• Color: blue/pink/green/orange.

II. Product Performance Parameters

• Operating time: 15 - 18 minutes (continuous full-speed running).
• Charger: USB cable charger.
• Charging time: 3 - 3.5 hours (USB balanced charging).
• Frequency: 2.4GHz (supports multiple vehicles competing on the same field).
• Remote control distance: >80 meters.
• Remote control category: full proportional synchronous control system.
• Brushless motor: 2440 brushless motor (4000KV value).
• Electronic speed controller/receiver: 35A 2S electronic speed controller and receiver in one (splash-proof).
• Servo: three-wire 17G digital servo.
• Speed: 52 km/h (top speed).
• Light configuration: devil angel eye headlights (seven modes), taillights.

III. Control Experience in Product Features and Selling Points

• The simulation structure design has the handling feeling of a real car, full proportional stepless speed change, high-speed driving, rapid acceleration, deceleration, braking, reversing, left turning, and right turning.
• Applicable to various venues: flat roads, cement roads, asphalt roads, and race tracks.

IV. Lighting Effect in Product Features and Selling Points

The devil angel eye has seven modes, including devil angel eye flowing lights, devil angel eye constant lighting, devil eye constant lighting, angel eye constant lighting, devil flowing lights, devil angel eye breathing lights, and turn signals (flashing at the same time in the front and rear).

V. Drive and Suspension System in Product Features and Selling Points

• Four-wheel drive, front and rear upright springs, double wishbone independent suspension system.
• 2.4G full proportional synchronous remote control system, full proportional throttle/steering; 2.4G splash-proof four-way 30A integrated electronic speed controller/receiver.
• Front wheel cross ball joint universal joint drive shaft, rear split dog bone drive shaft.

VI. Power and Transmission in Product Features and Selling Points

• Battery power: 7.4V, 18650 - 1500mAh Li-ion battery, discharge rate 15C (T plug).
• The whole vehicle uses 16 ball bearings.
• Metal second floor plate, metal front and rear arm codes, metal central drive shaft.
• Metal differential, metal differential cup, powder planetary gear, powder driving gear, powder main gear.
• Metal CVD front drive shaft, metal rear dog bone, metal wheel cup.

VII. Other Features in Product Features and Selling Points

1. High-toughness explosion-proof PVC car shell.
2. Simulated sports car tires with strong grip.
3. Equipped with a set of drift wheels for players to enjoy the fun of drifting.
4. Two power connection ports are reserved on the power board for consumers to upgrade other accessories.
5. The plug connecting the electronic speed controller and the battery is a model-level T-shaped plug, making the current output more stable.
6. The car shell has a full-surround structure, which can better buffer when the car is hit head-on and avoid damage to the wheel components caused by strong impact.
7. The remote control panel uses knob-type steering fine-tuning knobs and rudder volume adjustment knobs for more accurate and delicate adjustment.
8. The steering angle is larger, and the car is more flexible in steering, providing a better experience of pointing and hitting.

VIII. Protection Functions

• Charging protection: constant current and constant voltage balanced charging, with protection functions for overcharging and overcurrent of the battery.
• Motor anti-jamming protection: When overloaded, the motor stops.
• High temperature protection: When the working temperature is higher than the set value, the drive control circuit stops working and resumes after the temperature drops to a safe value.
• Low voltage cut-off function of the electronic speed controller: When the battery voltage is lower than about 6.3 - 6.4V, it cuts off automatically to prevent damage caused by over-discharge of the battery.

IX. Product Accessories

1. Whole vehicle.
2. Remote control.
3. Product English instruction manual.
4. Lithium battery.
5. USB charger.
6. Drift wheels.
7. Shock absorber adjustment buckle.
8. Metal bolt.
9. Small cross screwdriver.
