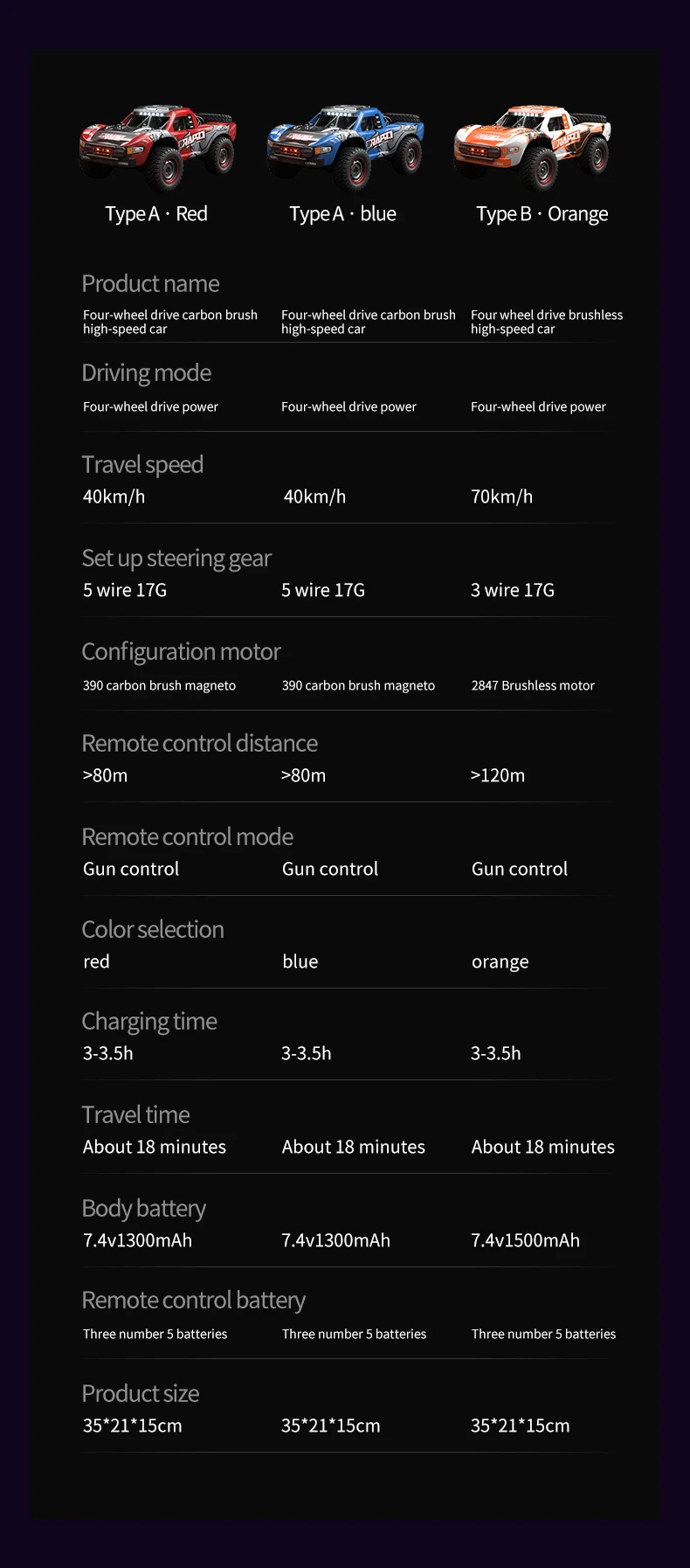

I. Product Overview

• Brand: JJRC
• Model: Q130A/Q130B/Q130C
• Scale: 1/14
• Color：red/blue / orange / bluish purple

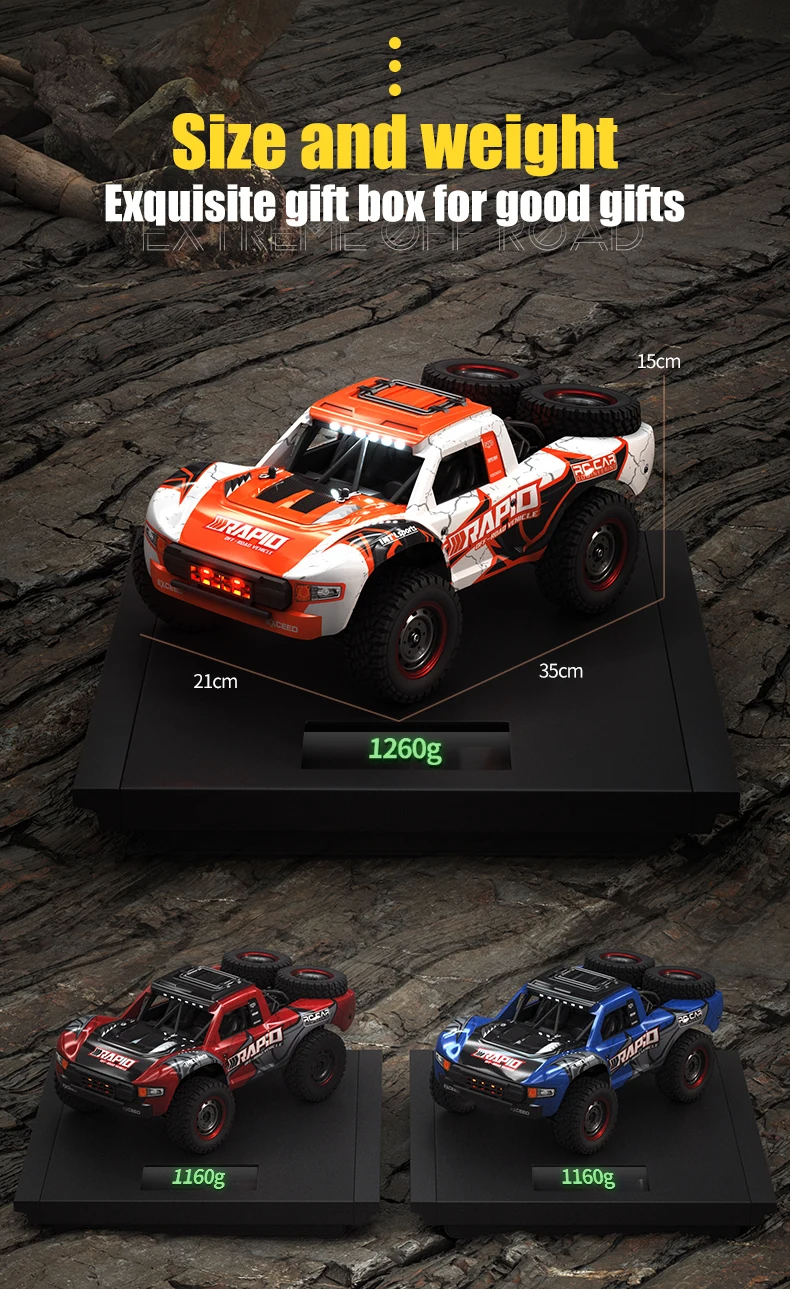

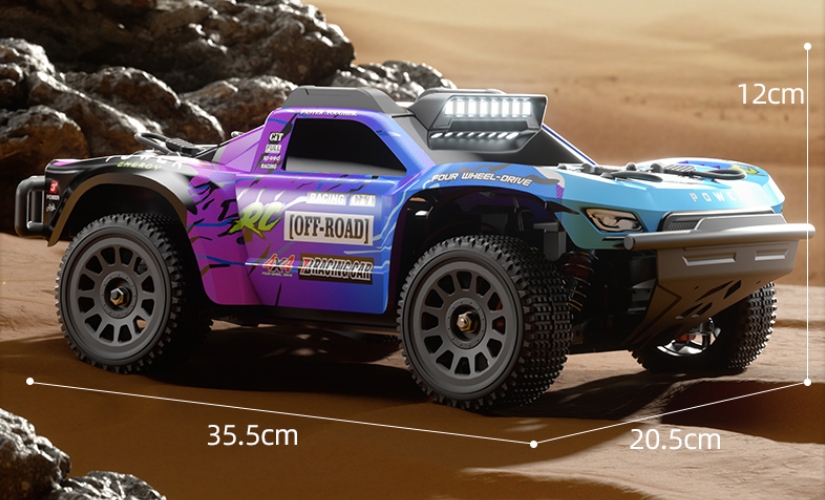

• Product size: 35*21*15cm / 35*21*15cm / 35.5*20.5*12cm

II. Power System

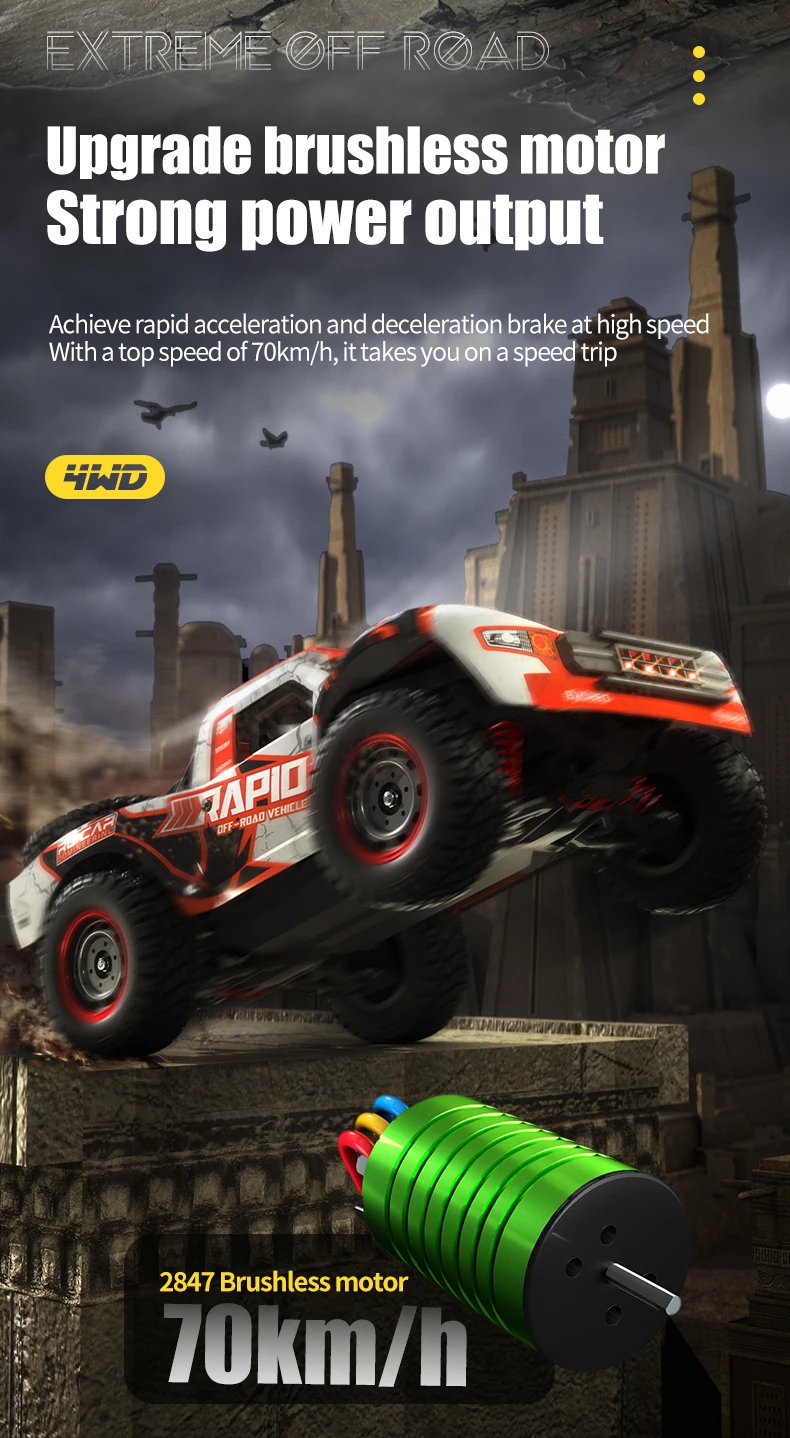

• Motor: 390 carbon brush magneto motor / 2847 brushless motor / 2847 brushless motor
• Servo: 5-wire 17G servo / 3-wire 17G servo / 3-wire 17G servo
• Body battery: 7.4v 1300mAh / 7.4v 1500mAh / 7.4v 1500mAh

III. Electronic Speed Controller and Receiver

• Q130A: 30A electronic speed controller
• Q130B: 35A 2S electronic speed controller with PX4 level splash-proof
• Q130C: 45A waterproof heat dissipation ESC

IV. Transmission System

• Top speed: 40km/h / 70km/h / 70km/h
• Remote control distance: 80 meters / 120meters /120meters
• Remote control category: full proportional synchronous control system
• Charging time: 3 - 3.5 hours
• Play time: about 18 minutes
• Remote control battery: 3 AA batteries

V. Transmission System

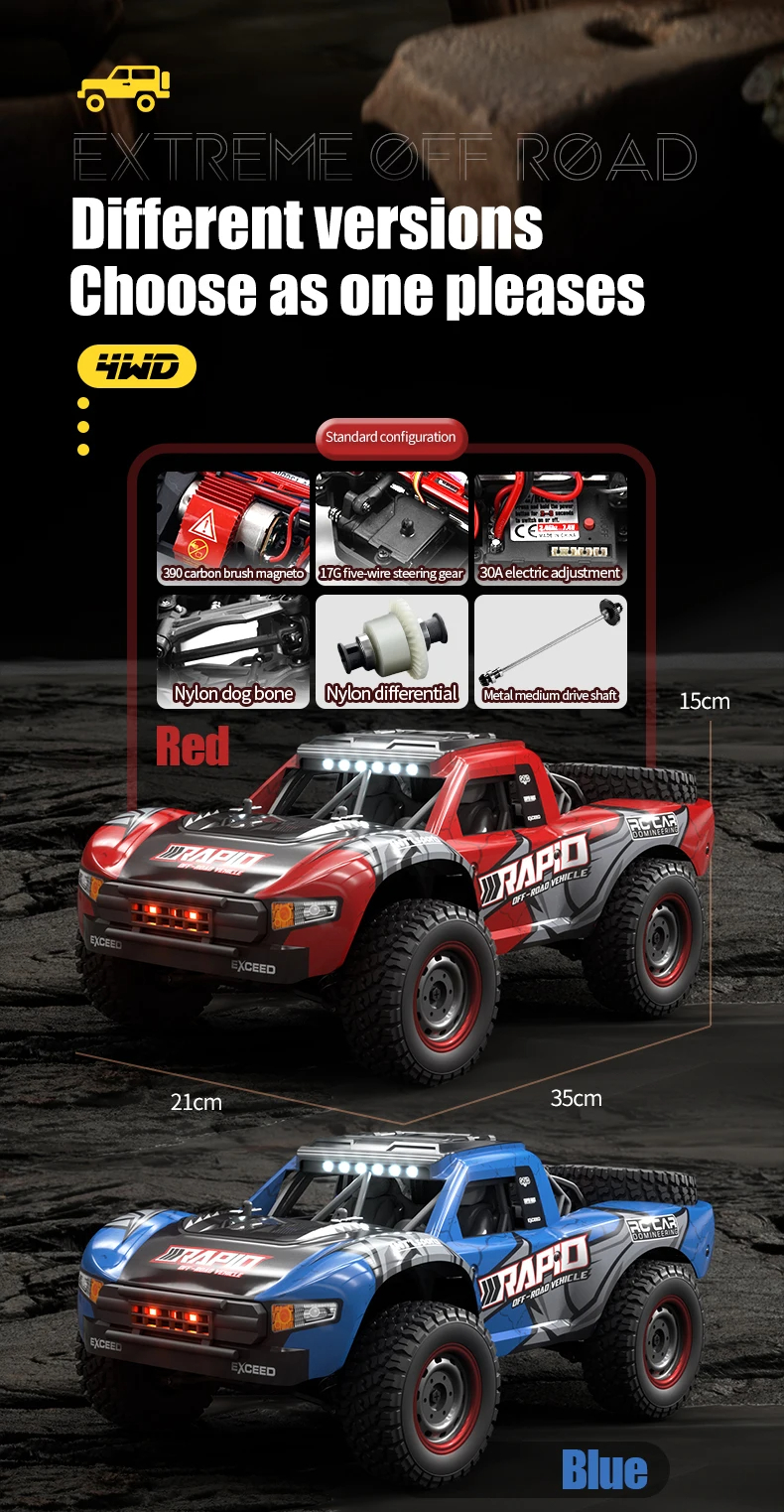

• Q130A: Nylon dog bone, nylon differential, metal central drive shaft.

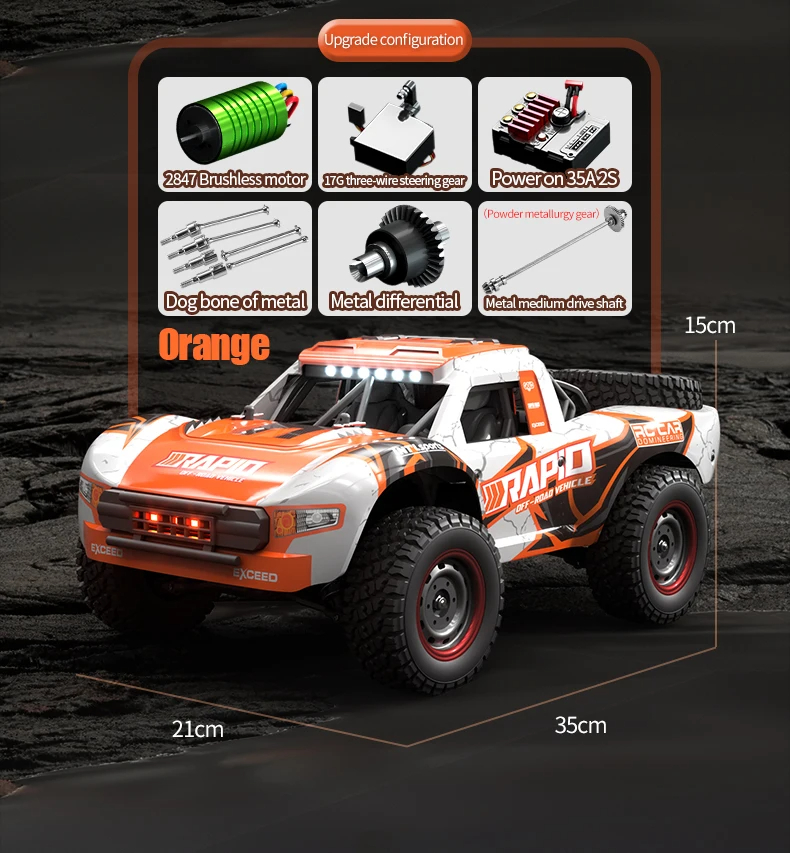

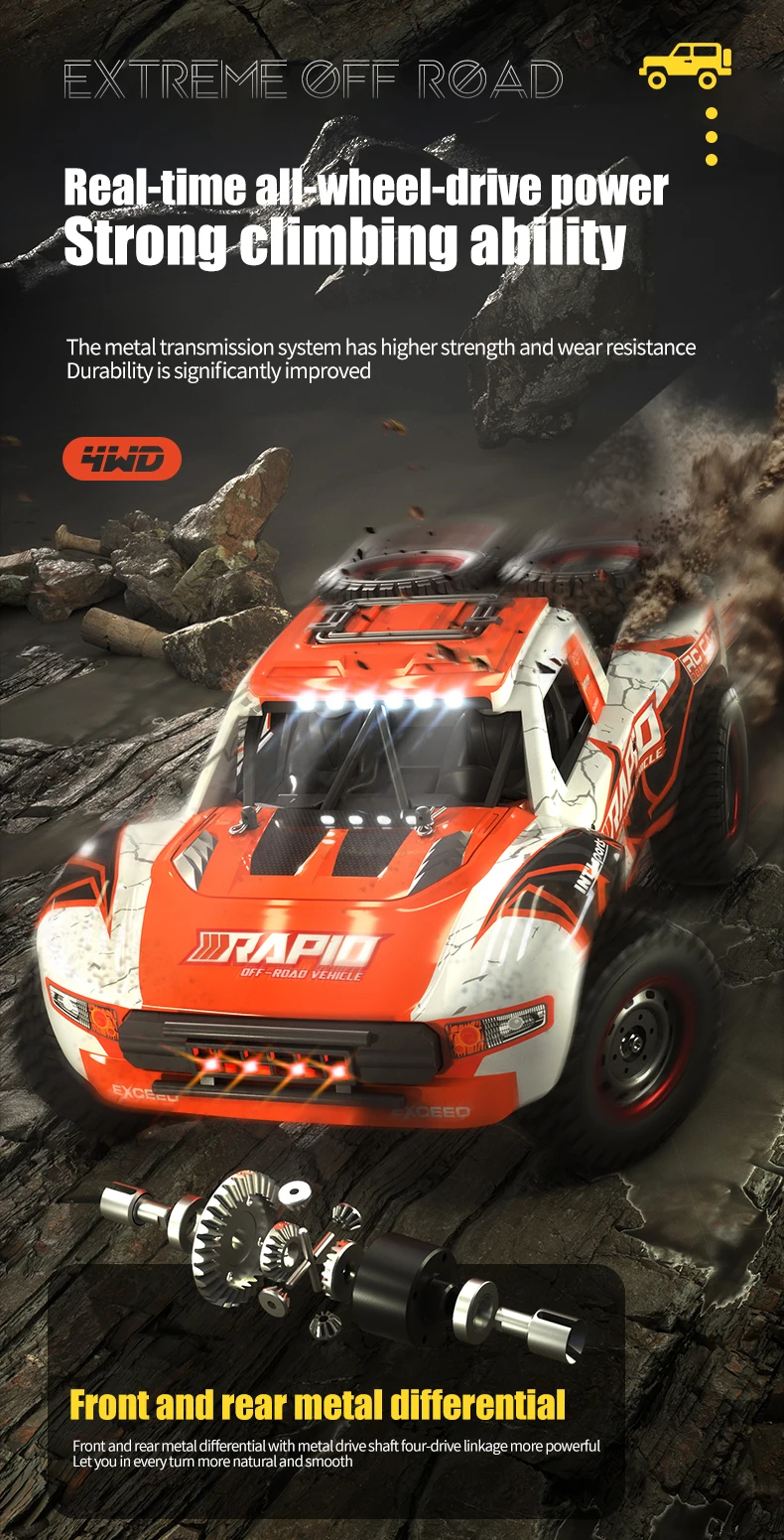

• Q130B: Metal dog bone, powder metallurgy gear, metal differential, metal central drive shaft. Four-wheel drive linkage of front and rear metal differentials and metal drive shafts for stronger power.
• Q130C: Metal dog bone, powder metallurgy gear, metal differential, metal central drive shaft. Four-wheel drive linkage of front and rear metal differentials and metal drive shafts for stronger power.

VI. Chassis Structure

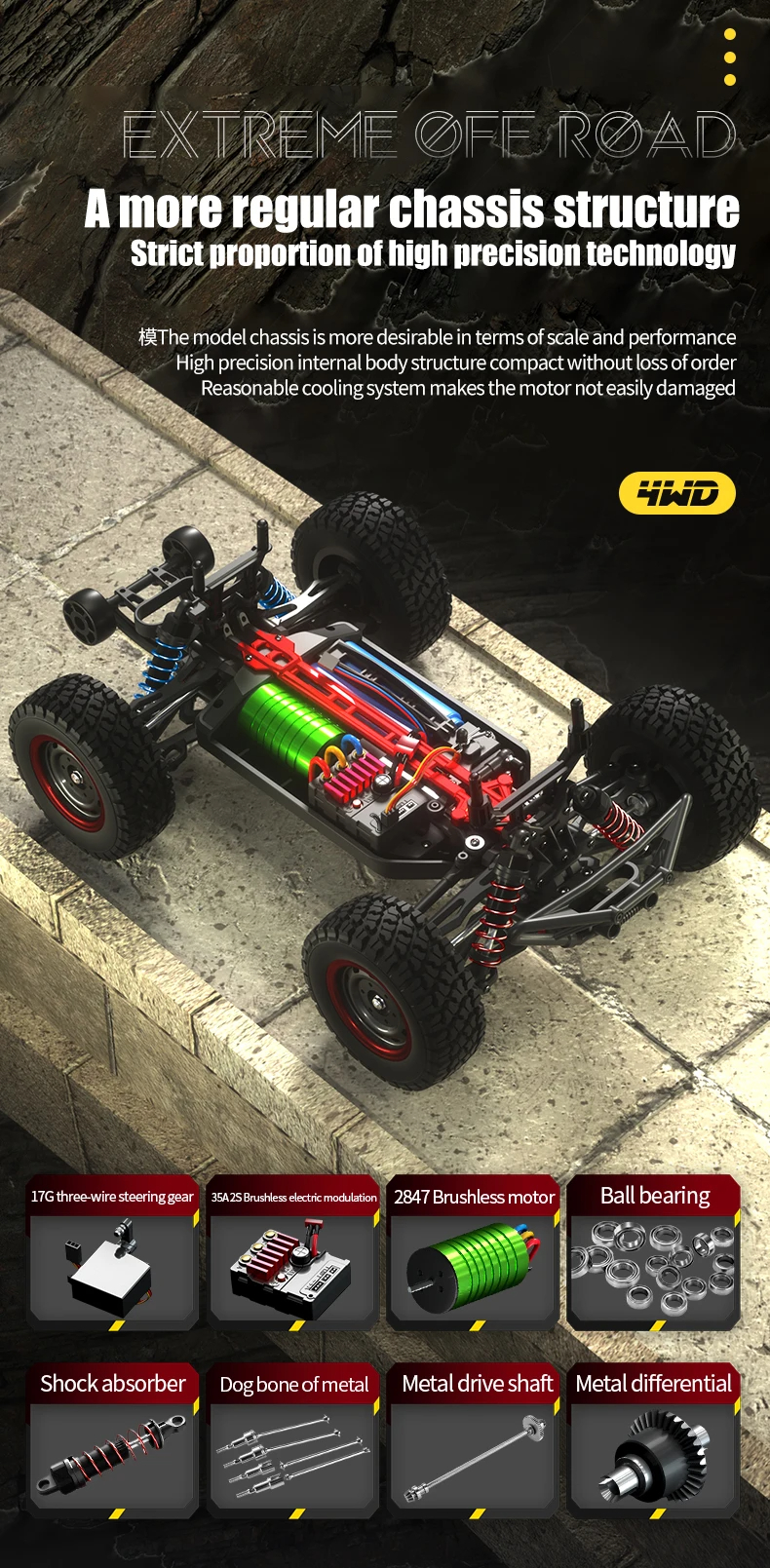

A more regular chassis structure with strict proportional high-precision technology. The model chassis is more excellent in terms of proportion and performance. The high-precision internal body structure is compact and orderly. A reasonable cooling system makes the motor not easily damaged. Aluminum Chassis.

VII. Lighting and Tires

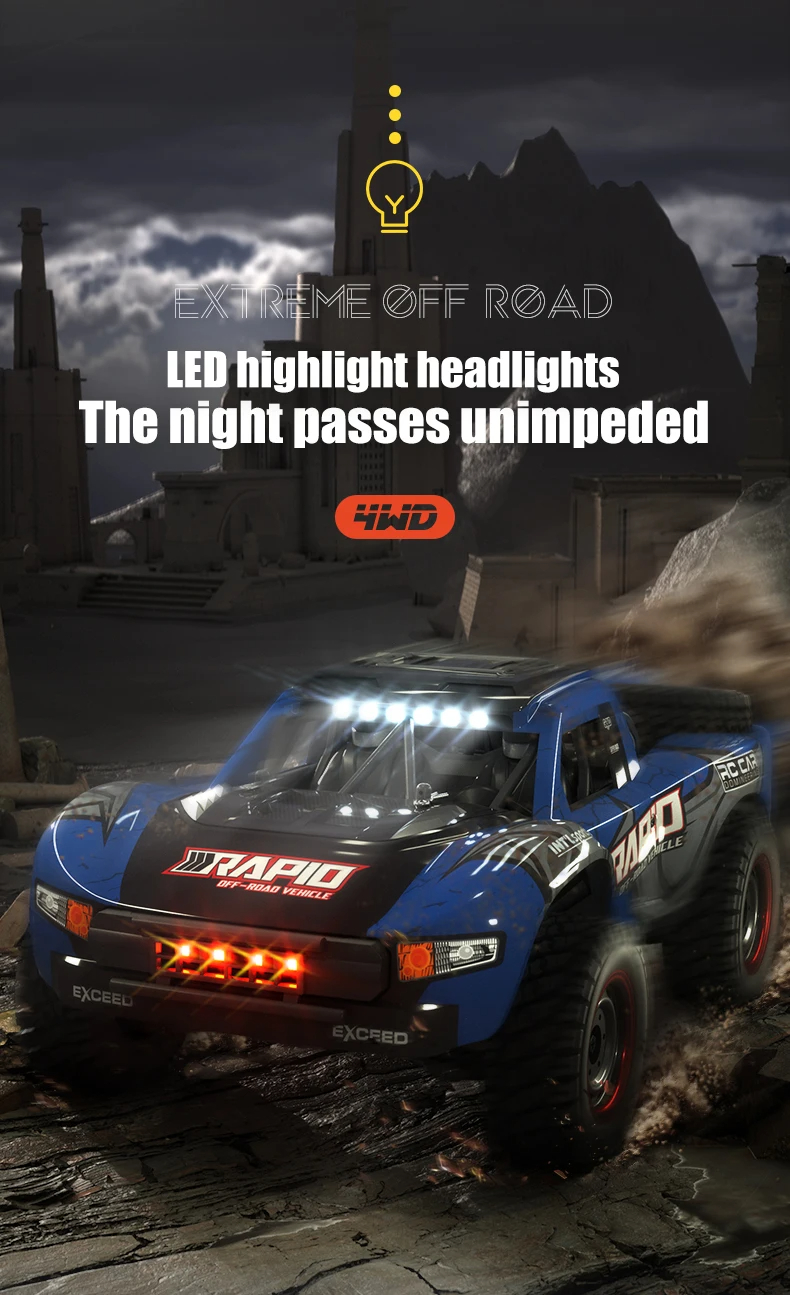

• Three models are equipped with high-brightness LED headlights for unimpeded night driving.

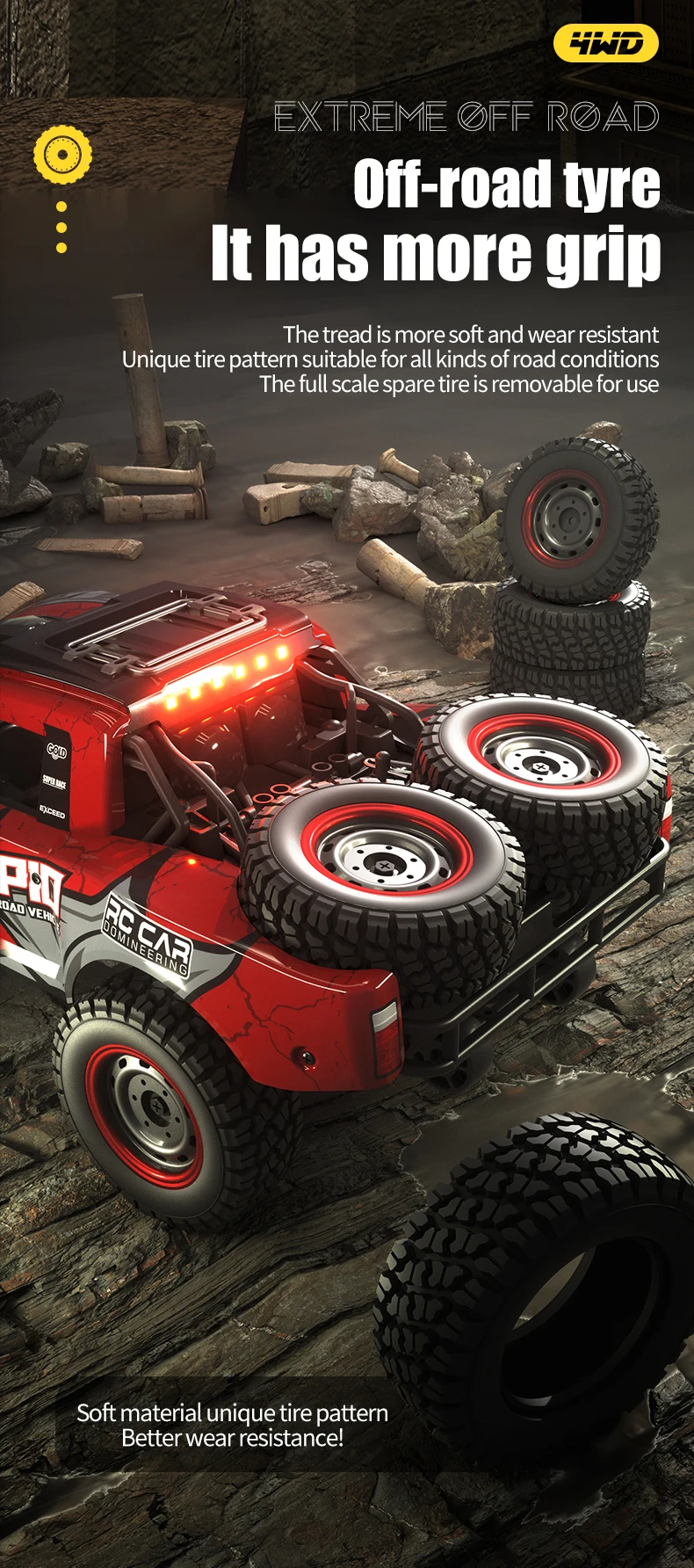

• Three models are off-road tires with unique treads, softer and more wear-resistant, strong grip, suitable for various road conditions. The full-size spare tire is removable for use.

VIII. Shock Absorption System

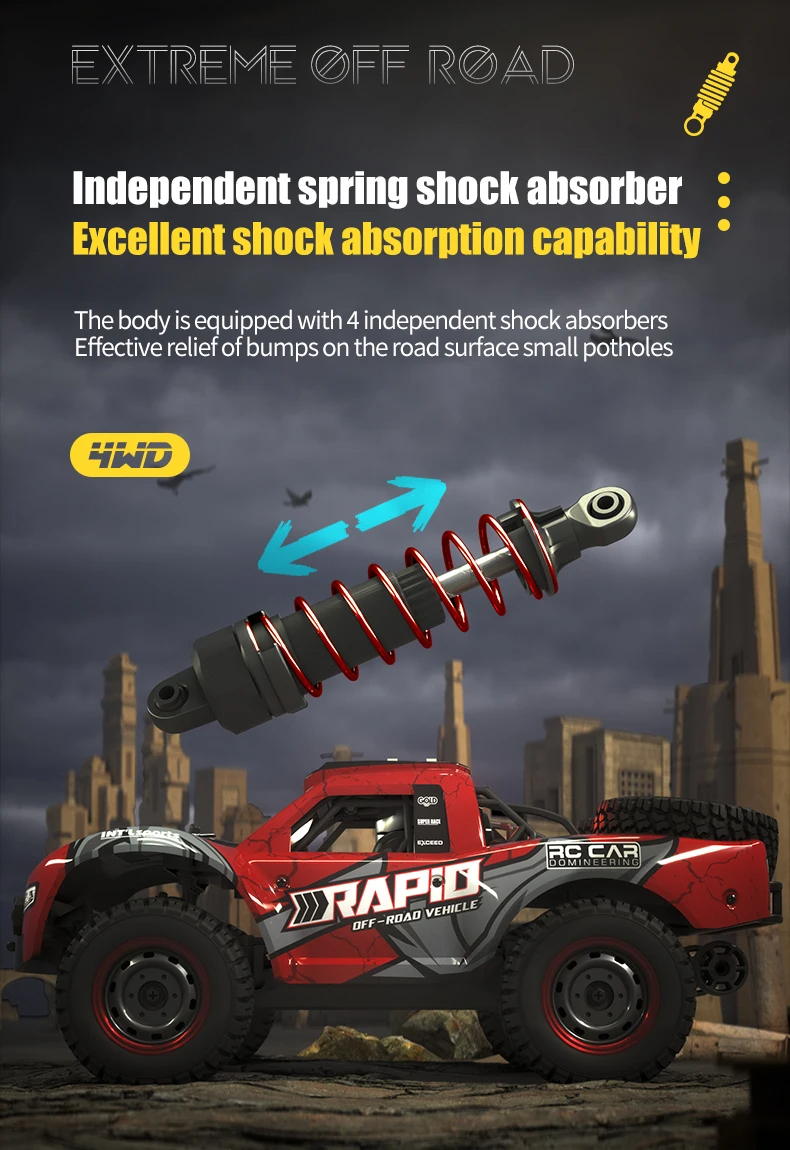

The body is equipped with four independent shock absorbers, effectively relieving road bumps and small potholes with excellent shock absorption ability.

IX. Other Equipment

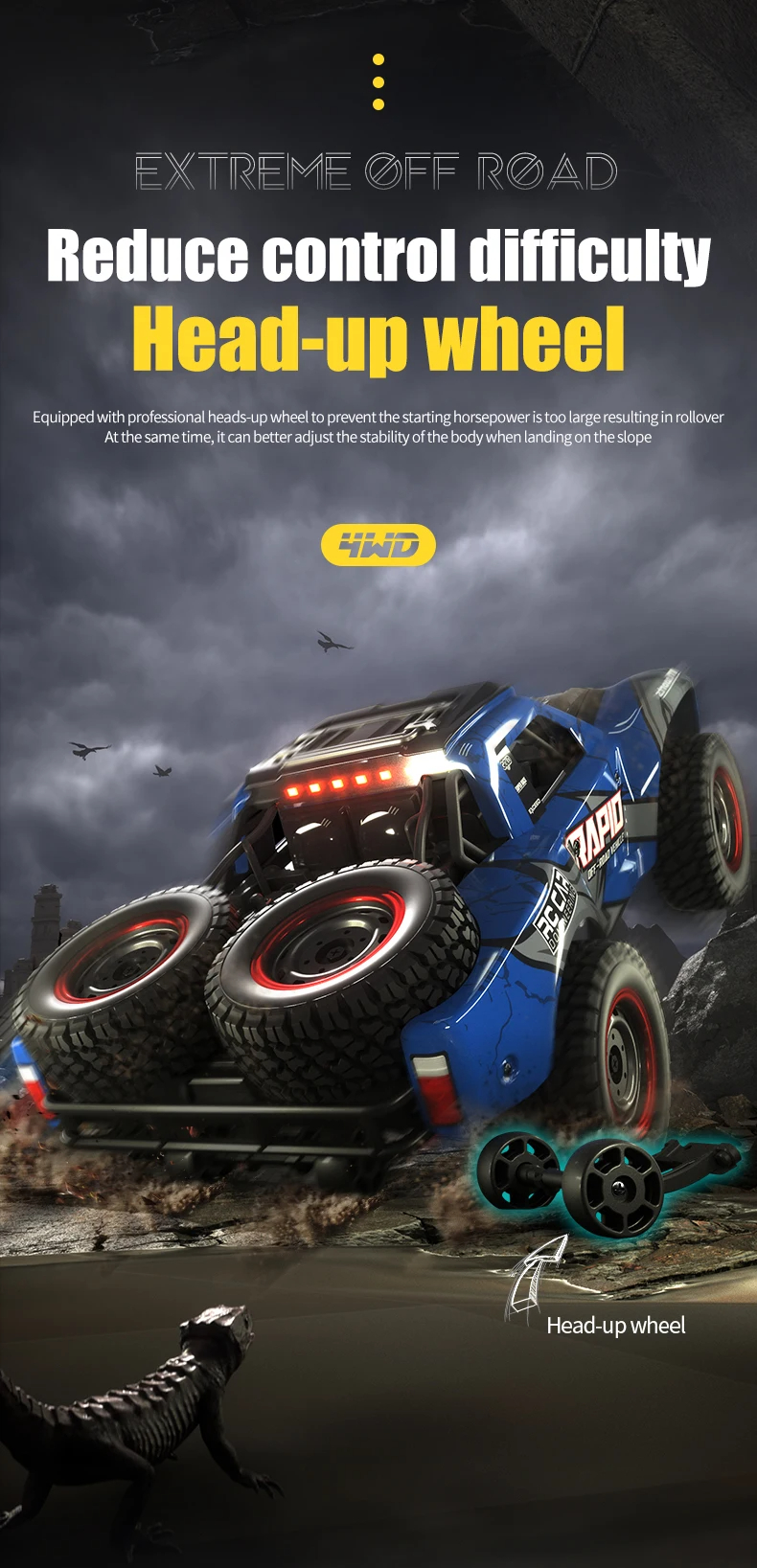

• Head-up wheel: Equipped with a professional head-up wheel to prevent rollover due to excessive starting horsepower. At the same time, it can better adjust the stability of the body when landing on a slope.

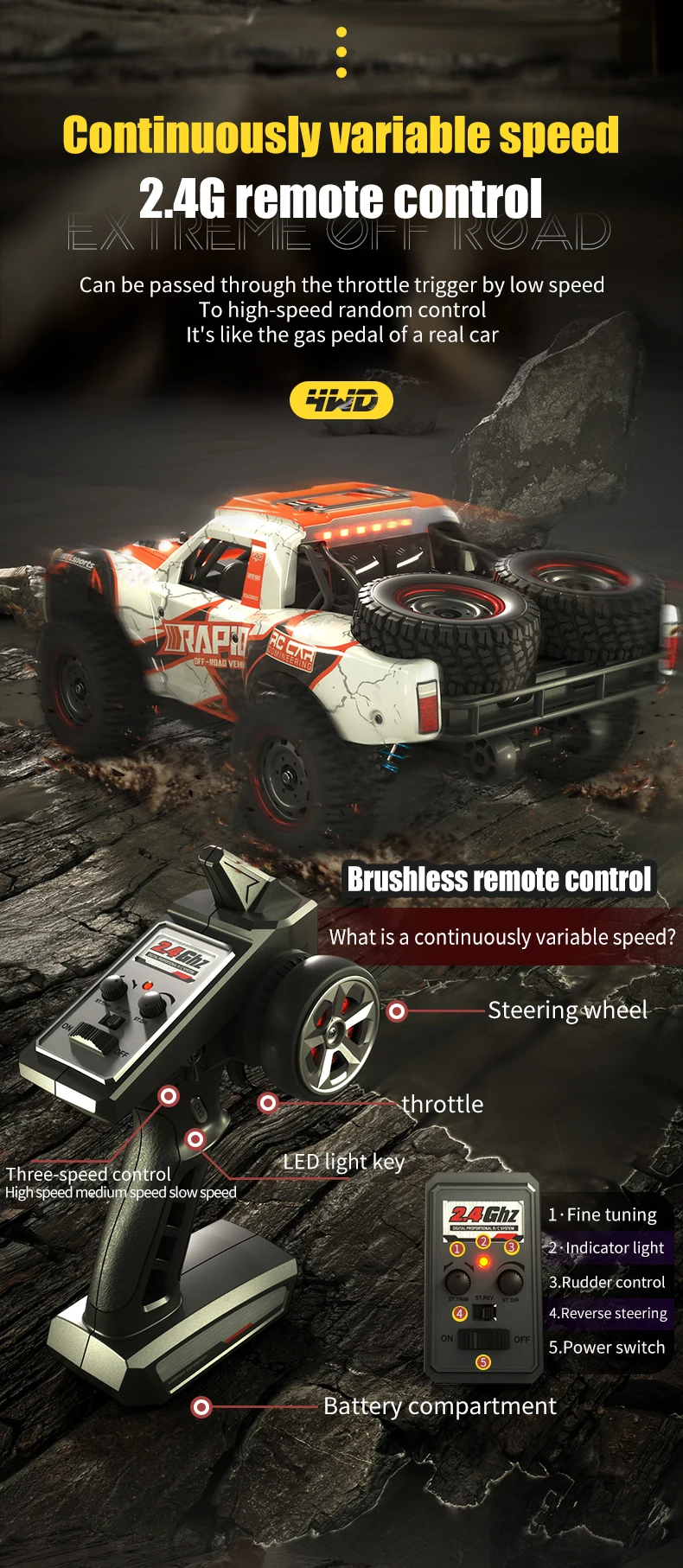

• Remote control system: 2.4G remote control. It can be randomly controlled from low speed to high speed through the throttle trigger, just like the accelerator pedal of a real car. It has three-speed control (high speed, medium speed, low speed), fine-tuning, indicator light, rudder control, reverse steering, power switch and other functions.
