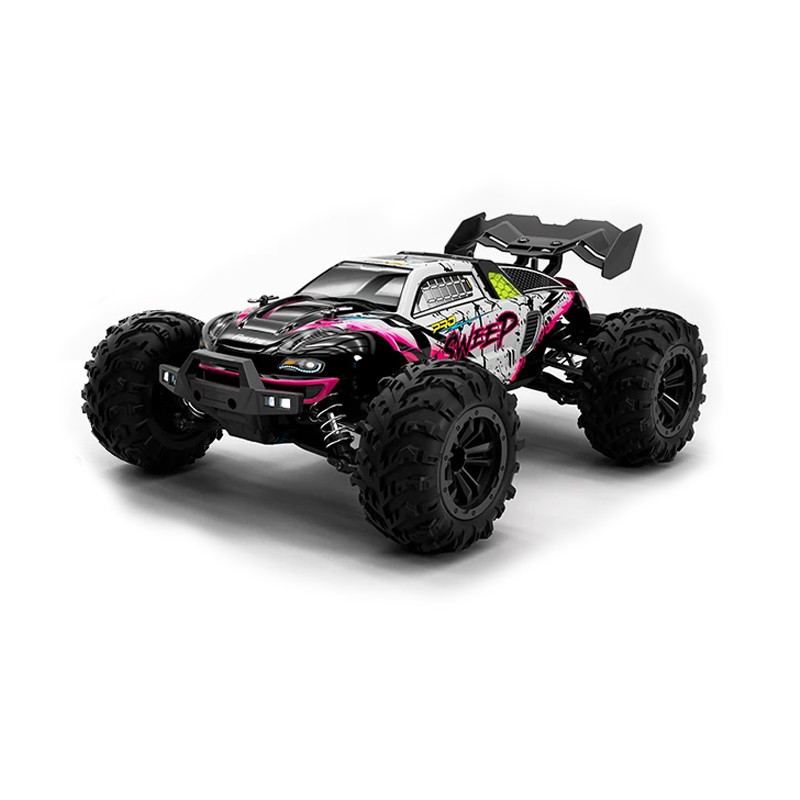

I. Product Basic Information

• Brand name: JJRC
• Model: Q117 A/B
• Material: hardware, electronics, plastic
• Size: 30*23*11.5 CM
• Weight: 1000g
• Colors: green/red (Model A), blue/orange (Model B)
• Notes: Includes descriptions of charging protection, motor anti-jamming protection, high temperature protection, and low voltage cut-off function of the electronic speed controller.

II. Performance Parameters

1. Body battery: 7.4V 1500mAH 15C lithium-ion battery (T plug)
2. Operating time: 15 - 18 minutes (continuous full-speed running)
3. Charger: USB balance charger
4. Protection functions: charging, jamming, high temperature, and low voltage protection
5. Brushless motor: 2840 brushless motor (4000KV value)
6. Servo: 3-wire 17G digital servo
7. Wheelbase parameters: wheelbase 185mm, track width 188mm, wheel diameter 85mm
8. Differential structure: planetary gear differential
9. Charging time: 3 - 3.5 hours (USB balance charger)
10. Frequency: 2.4GHz (supports multiple vehicles competing on the same field)
11. Remote control category: full proportional synchronous control system
12. Remote control distance: >120 meters
13. Electronic speed controller/receiver: 35A electronic speed controller/receiver integrated control (splash-proof)
14. Speed: 70 kilometers per hour (top speed).

III. Product Features and Selling Points

1. Simulated control: Adopts simulated structure design, has the handling feeling of a real car, full proportional stepless speed change, and various functions such as high-speed driving.
2. Versatile applicable venues: flat ground, sand, mud, and grassland.
3. Four-wheel drive and suspension system: Four-wheel drive, front and rear upright spring shock absorption, double wishbone independent suspension system.
4. Remote control system: 2.4G full proportional synchronous remote control system, full proportional throttle/steering.
5. Transmission and differential components: Metal differential and other metal components and powder gears. Metal CVD front drive shaft, metal rear dog bone, metal wheel cup.
6. Servo and battery: Three-wire 17G digital servo, 7.4V 18650 - 1500mAh Li-ion battery (T plug), discharge rate 15C.
7. New function: New remote control panel function, which can adjust the rudder volume.
8. Ball bearings and metal components: The whole vehicle uses 16 ball bearings, metal second floor plate, metal front and rear arm codes, metal central drive shaft.
9. Car shell and lighting: The car shell is made of high-toughness explosion-proof PVC and is equipped with an LED headlight (three modes).
10. Other accessories: Equipped with a head-up wheel, simulated large-foot tires (with strong grip), and a tail wing.

IV. Product Accessories

1. Whole vehicle
2. Remote controllelr
3. Chinese and English instruction manuals
4. Lithium battery
5. USB balance charger
6. Tail wing, head-up wheel
7. Shock absorber adjustment buckle
8. Metal bolt
9. Hexagon socket
10. Insert page of brushless version instruction manual
