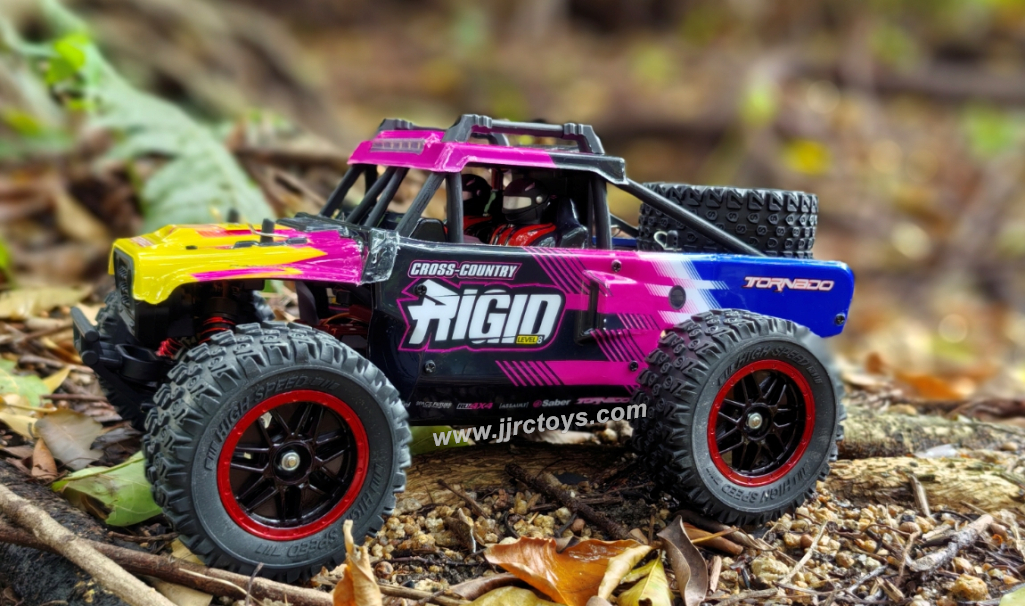

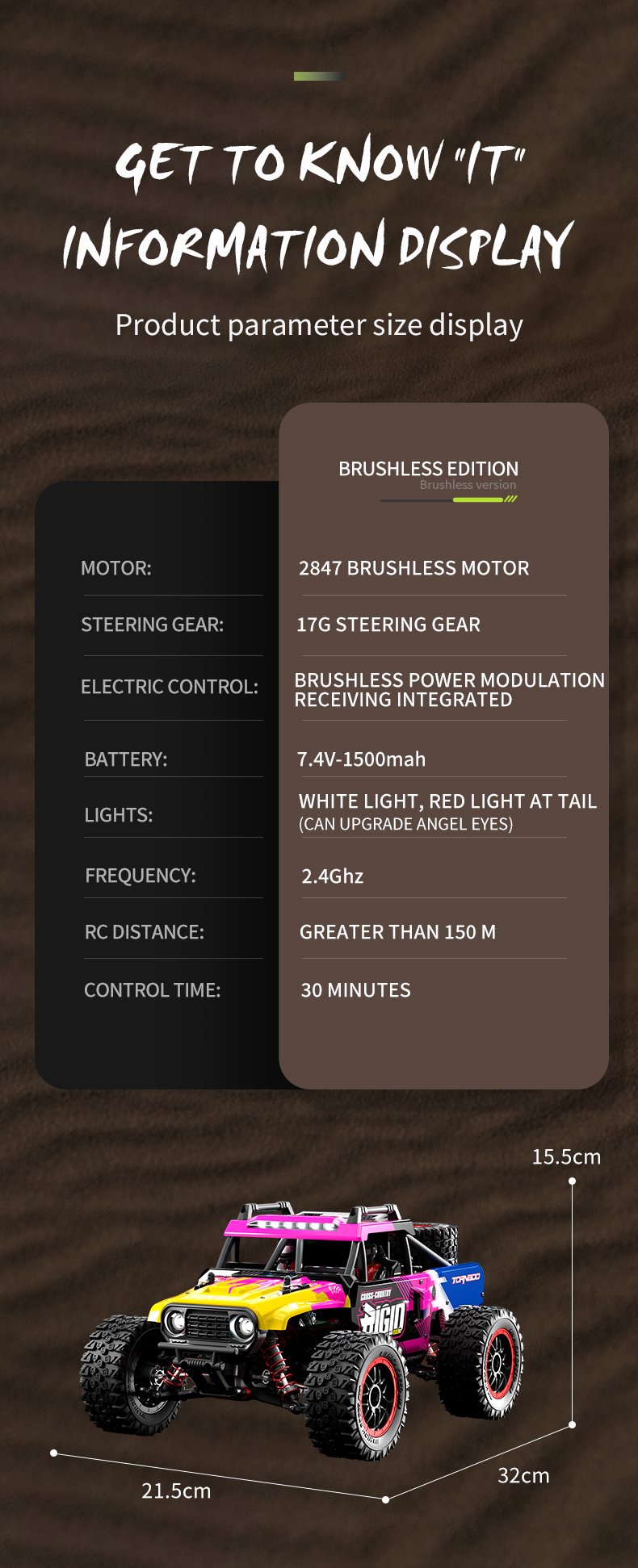

I. Basic information

• Brand Name: JJRC;
• Model: C8805 (Brushless Model B);
• Materials: Hardware, electronics, plastic;
• Product Size: 34.5*20.5*14.8 CM;
• Remote Control Size: 13*7.5*21 CM;
• Body Weight: 1268g;
• Remote Control Weight: 180g;
• Color: Pink;

II. Power System

• Body Battery: 7.4V, 18650 - 1500mAh Li-ion battery (T plug, discharge rate 15C);

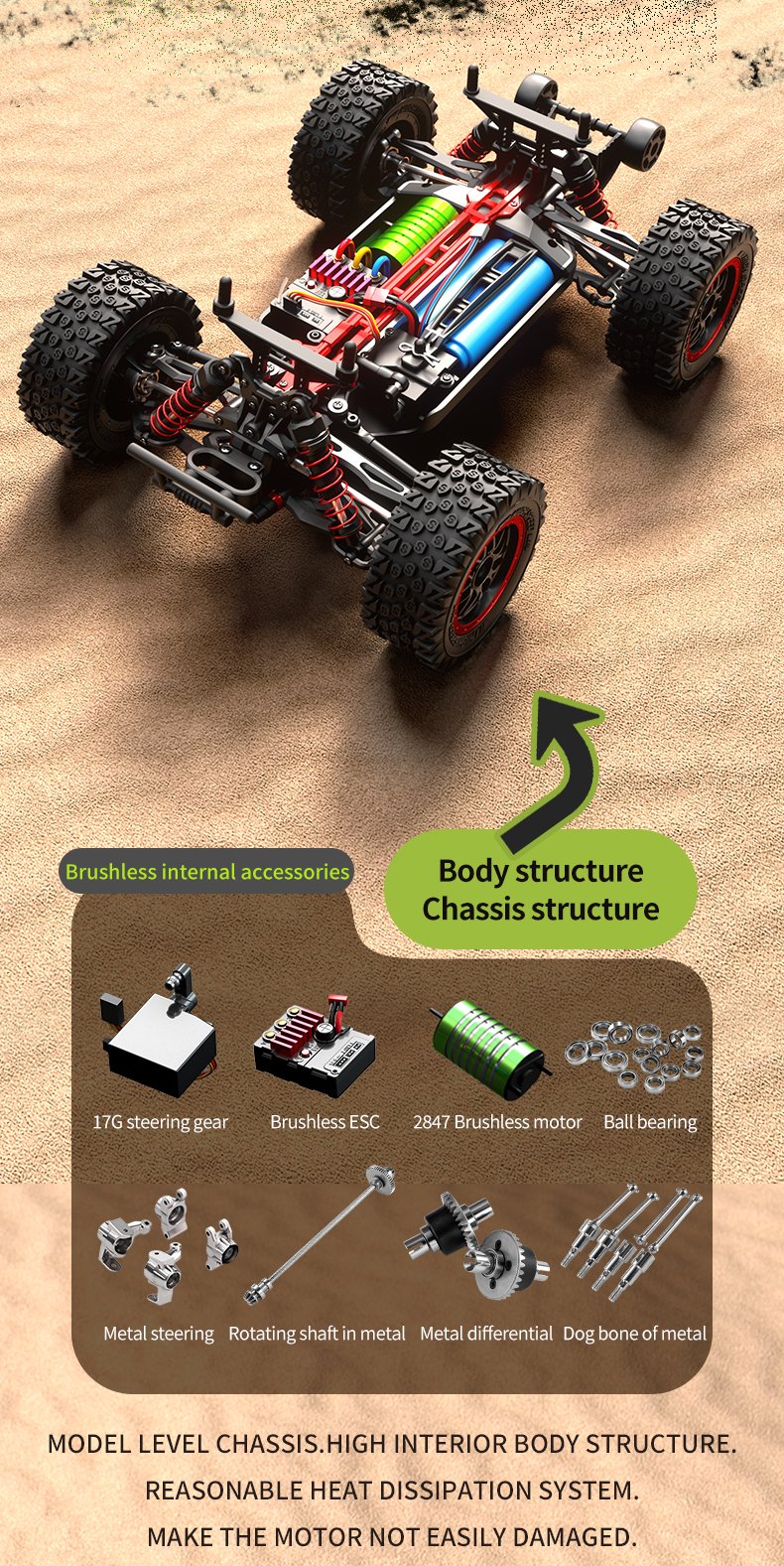

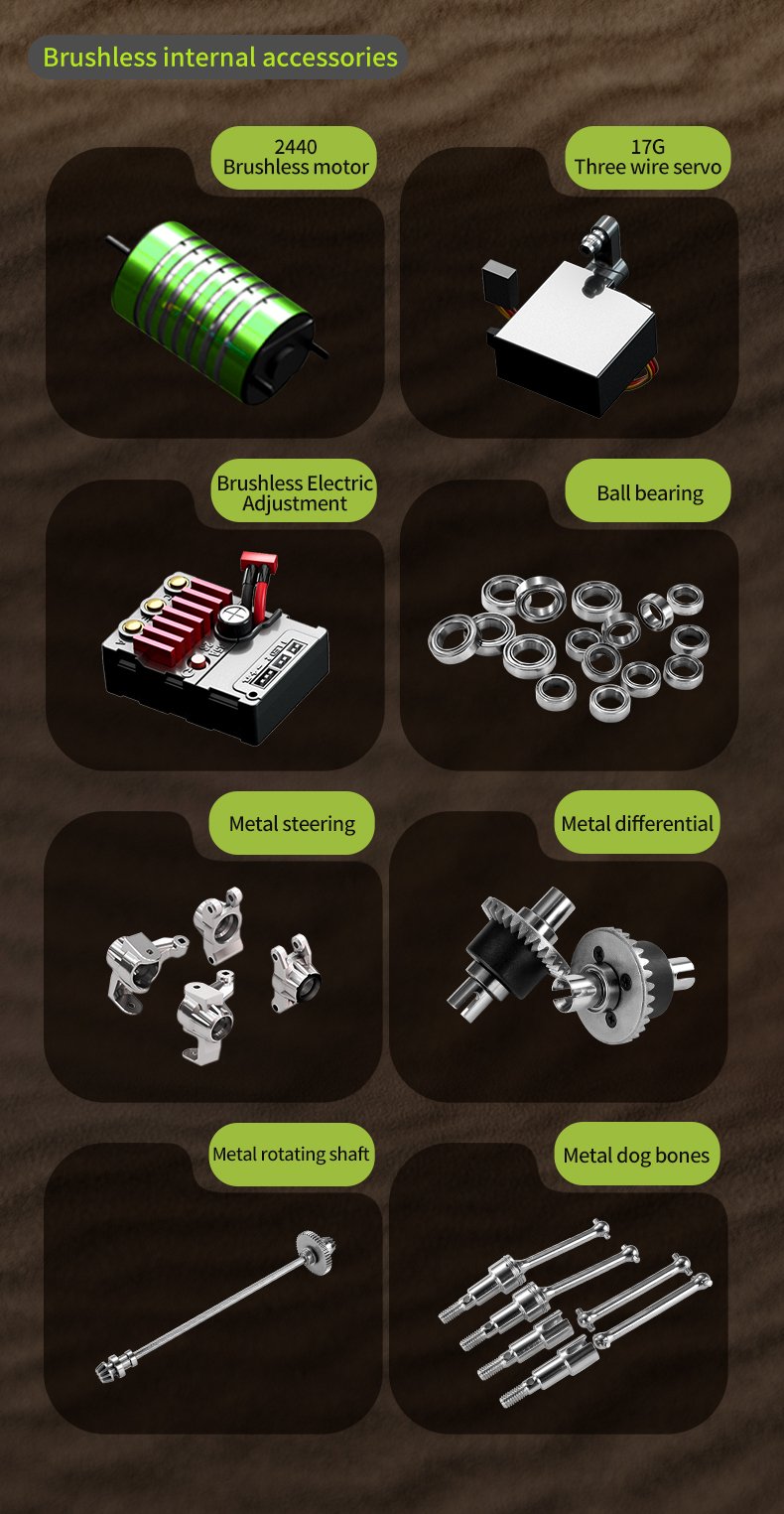

• Brushless Motor: 2847 brushless motor (4000KV value);
• Servo: Three-wire 17G digital servo;

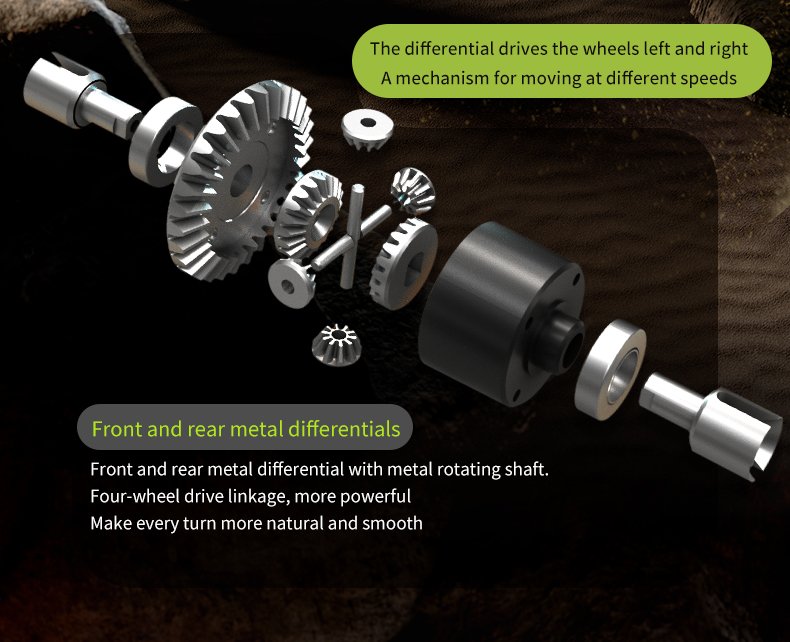

• Differential Structure: Planetary gear differential;

III. Performance Parameters

• Operating Time: 15 - 18 minutes (continuous full-speed running);
• Charger: USB balance charger;
• Remote Control Distance: ≥120 meters;

IV. Control Characteristics

• Simulated structure design, real car handling feeling, full proportional stepless speed change, high-speed driving, functions such as rapid acceleration, deceleration, braking, reversing, left turning, and right turning.

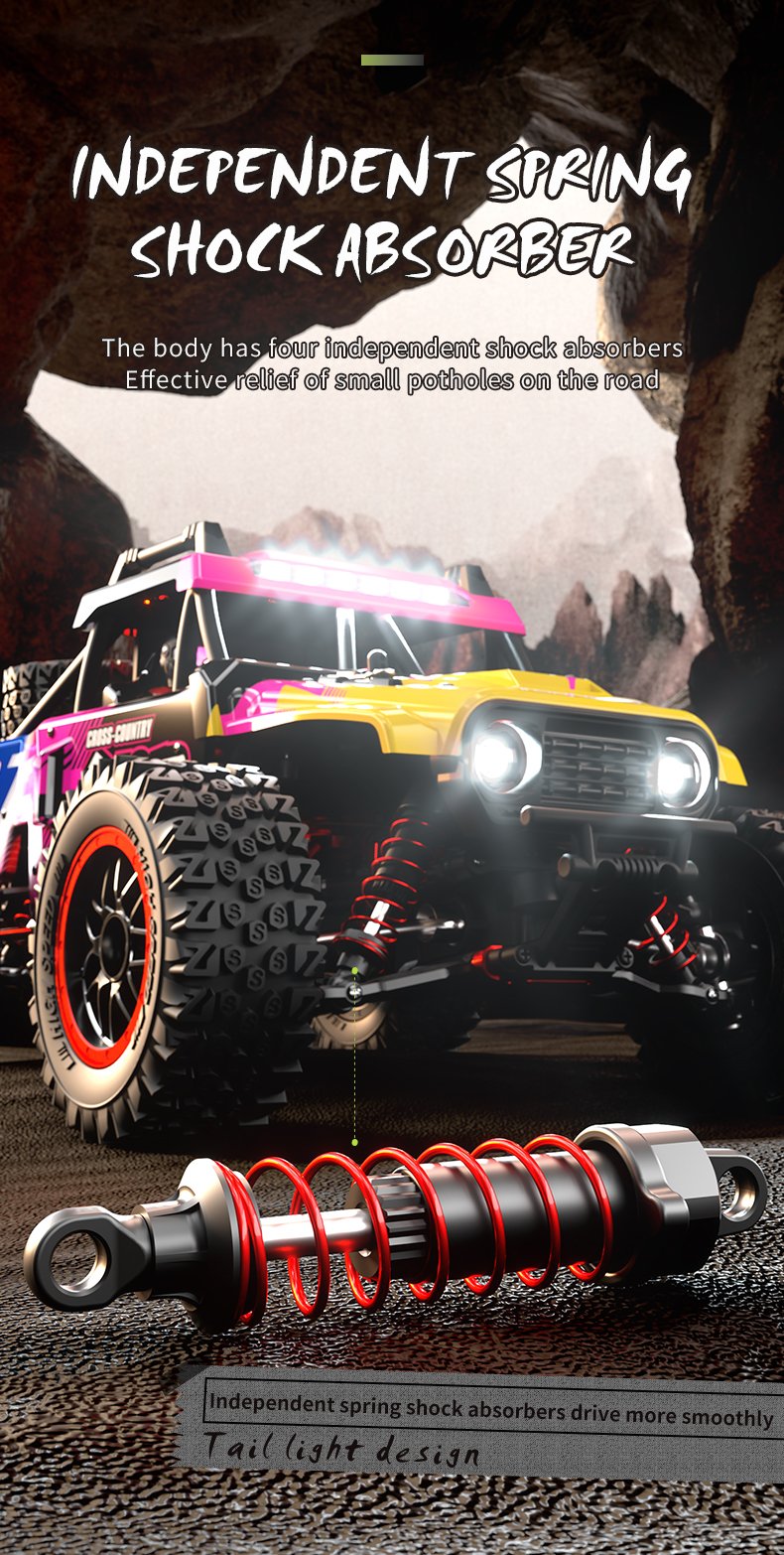

• Four-wheel drive, front and rear upright spring shock absorption, double wishbone independent suspension system.

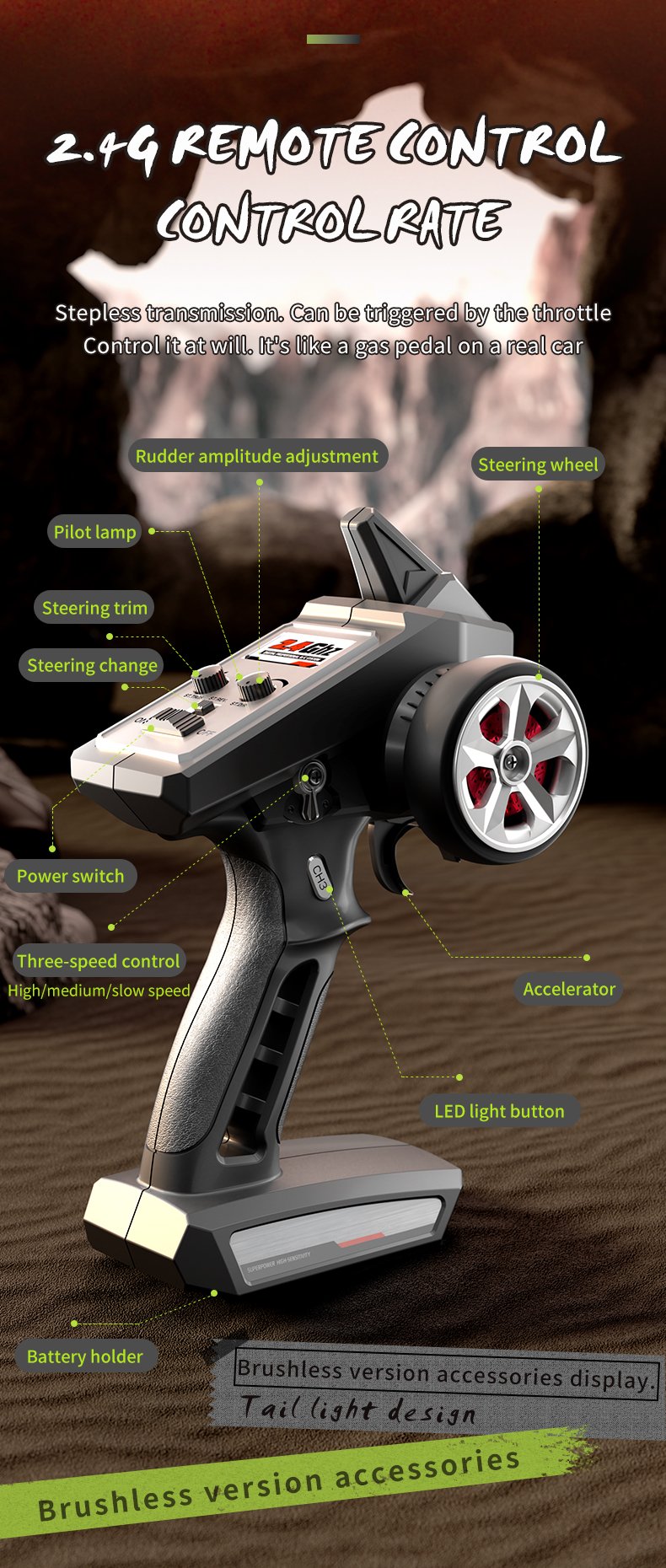

• 2.4G full proportional synchronous remote control system, full proportional throttle/steering.

V. Special Features

1. The whole vehicle uses 16 ball bearings.
2. Metal second floor plate, metal front and rear codes, metal central drive shaft.
3. The car shell is made of high-toughness explosion-proof PVC.

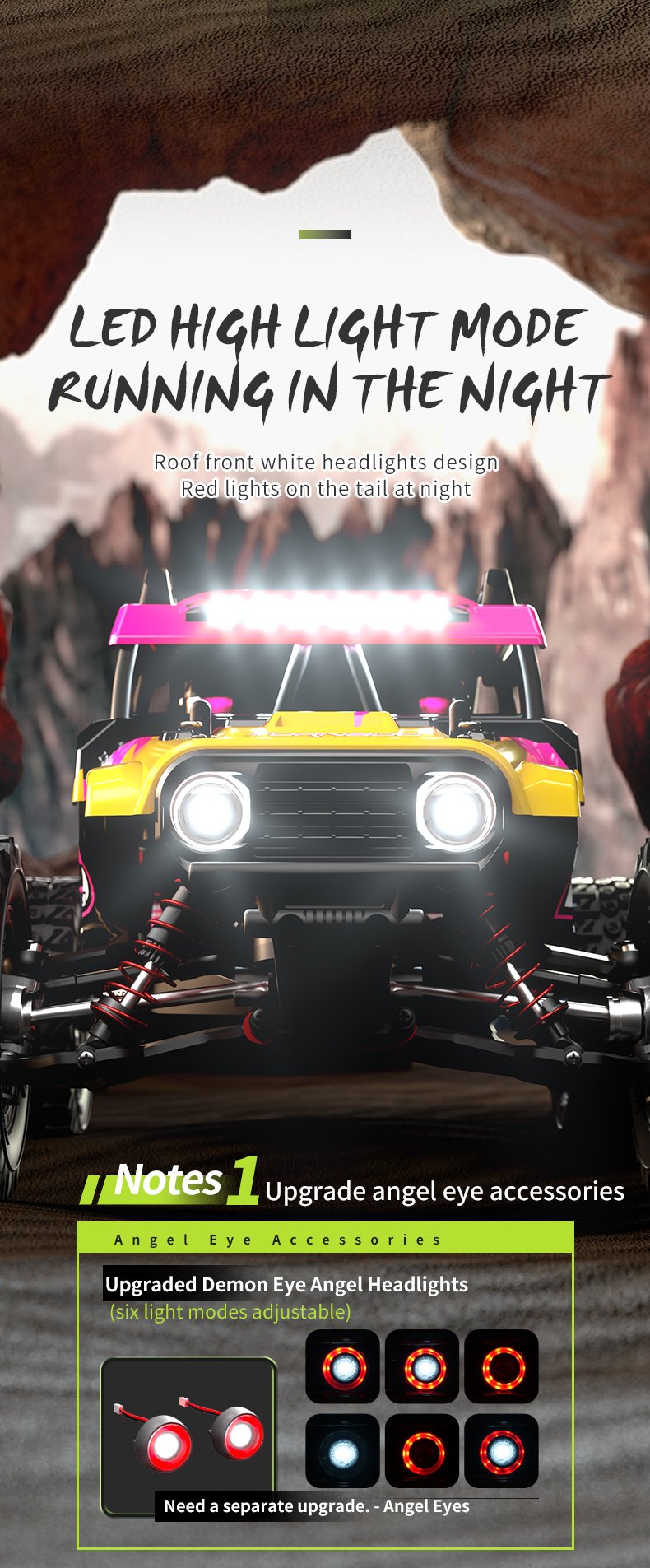

4. The car shell is equipped with LED headlights, LED roof lights, and LED tail lights (three modes: constant on, slow flashing, and fast flashing).
5. Simulated off-road tires with strong grip.
6. The car shell has a full-surround structure, which buffers when the vehicle is hit head-on and protects the wheel components.

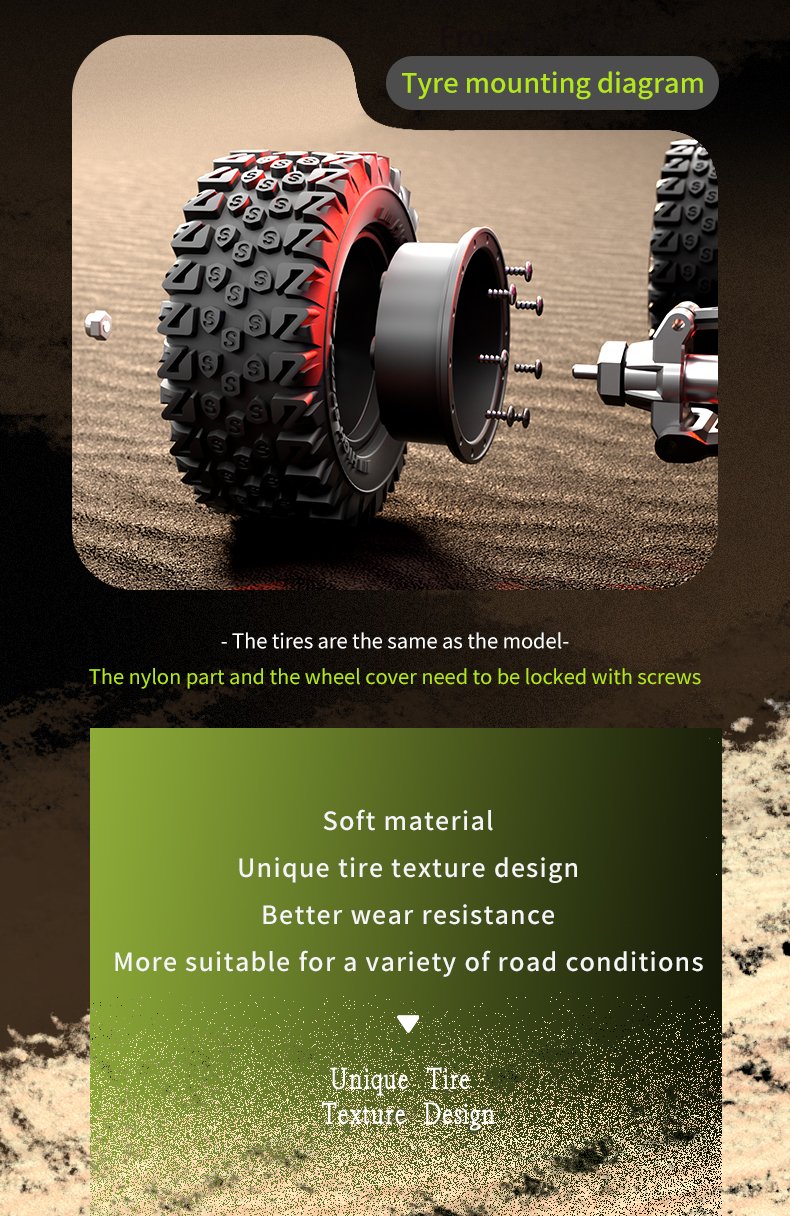

7. Adopts 3.2-inch off-road wheels and raises the chassis to improve passability.
8. The remote control panel uses knob-type steering fine-tuning knobs and rudder adjustment knobs for more accurate and delicate adjustment.
9. The steering angle is larger, and the vehicle is more flexible in driving and turning, providing a better experience.

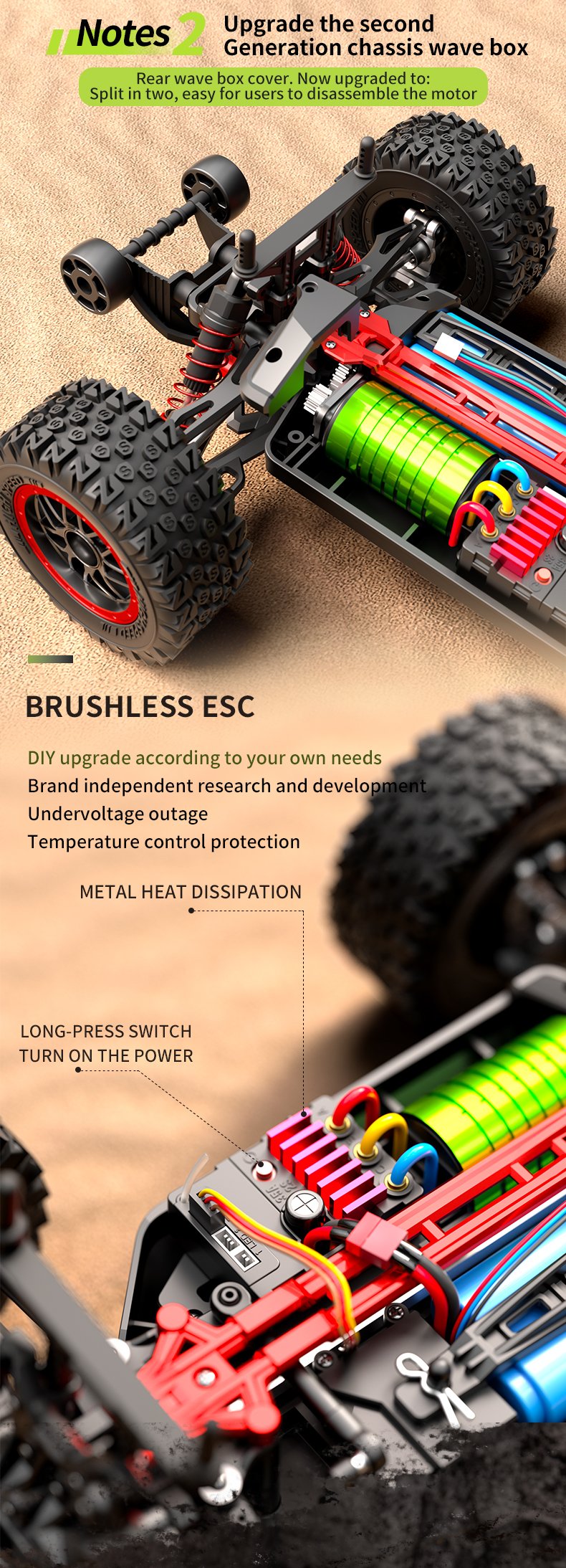

10. The connection between the electronic speed controller and the battery uses a model-level T-shaped plug for more stable current output.

VI. Protection Functions

• Motor anti-jamming protection: When overloaded, the motor stops working.
• High temperature protection: When the temperature is too high, the drive control circuit stops working and resumes after the temperature drops to a safe value.
• Low voltage cutoff function of the ESC: When the battery voltage is lower than a specific voltage, the motor cuts off power to prevent over-discharge damage.

VII. Accessories

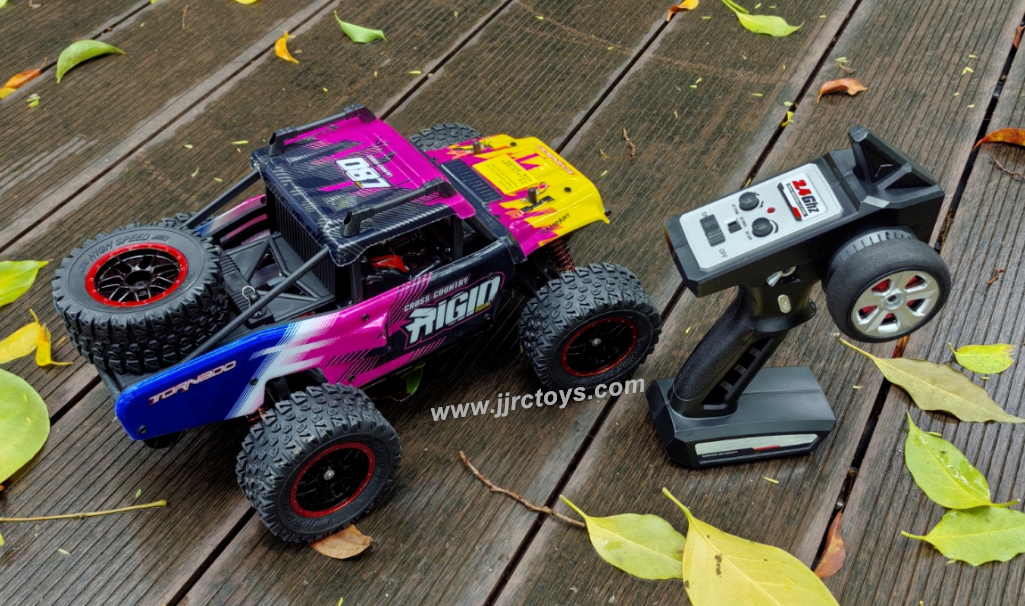

1. Whole vehicle.
2. Remote control.
3. Chinese and English instruction manuals.
4. Lithium battery.
5. USB balance charger.
6. DIY self-adhesive stickers for both sides of the door.
7. Shock absorber adjustment buckle.
8. Metal bolt.
9. Hexagonal socket.
10. Instruction booklet insert for brushless version.

Click here to view the brushed version of JJRC C8805 rc car.
