I. Basic Information

• Brand Name: JJRC
• Model: C8805 A (Brushed)
• Materials: Hardware, electronics, plastic

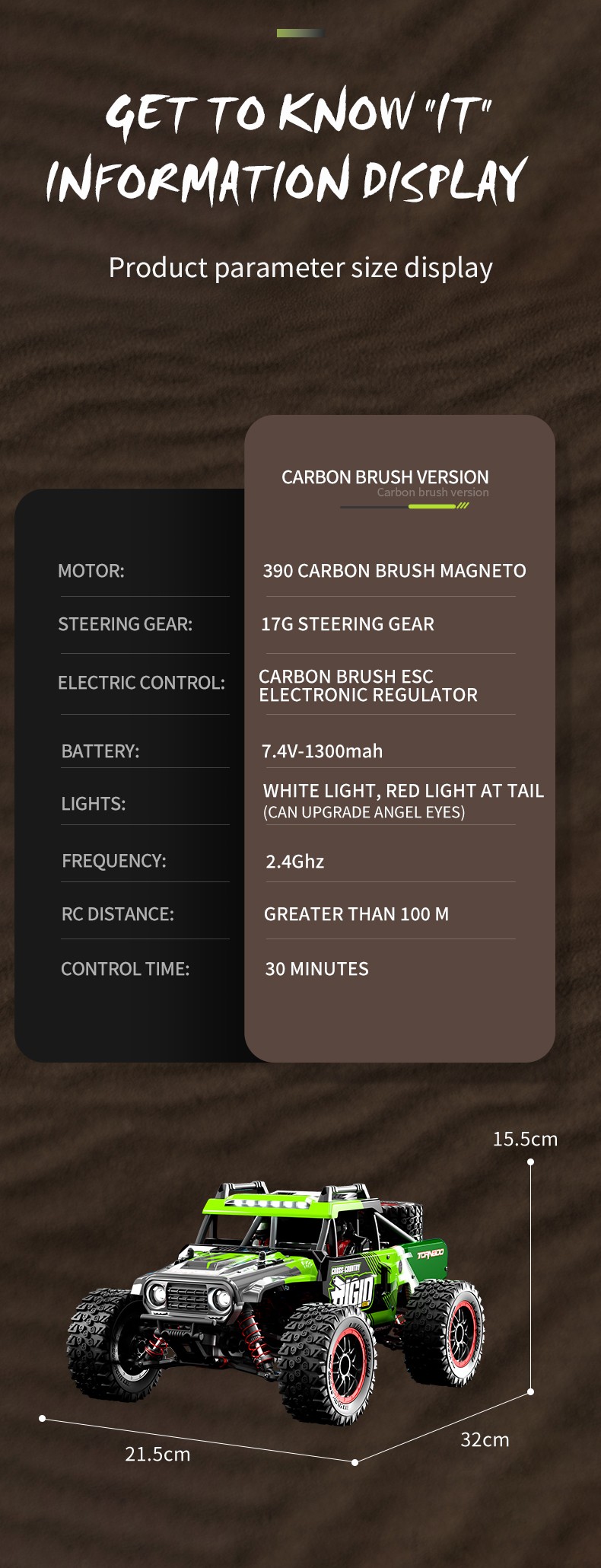

• Product Size: 34.5*20.5*14.8 CM
• Remote Control Size: 13*7.5*21 CM
• Body Weight: 1168g
• Remote Control Weight: 180g
• Color: Green/Red (Model A)

II. Power System

• Body Battery: 7.4V 1300 mAH 10C lithium-ion battery (T plug)

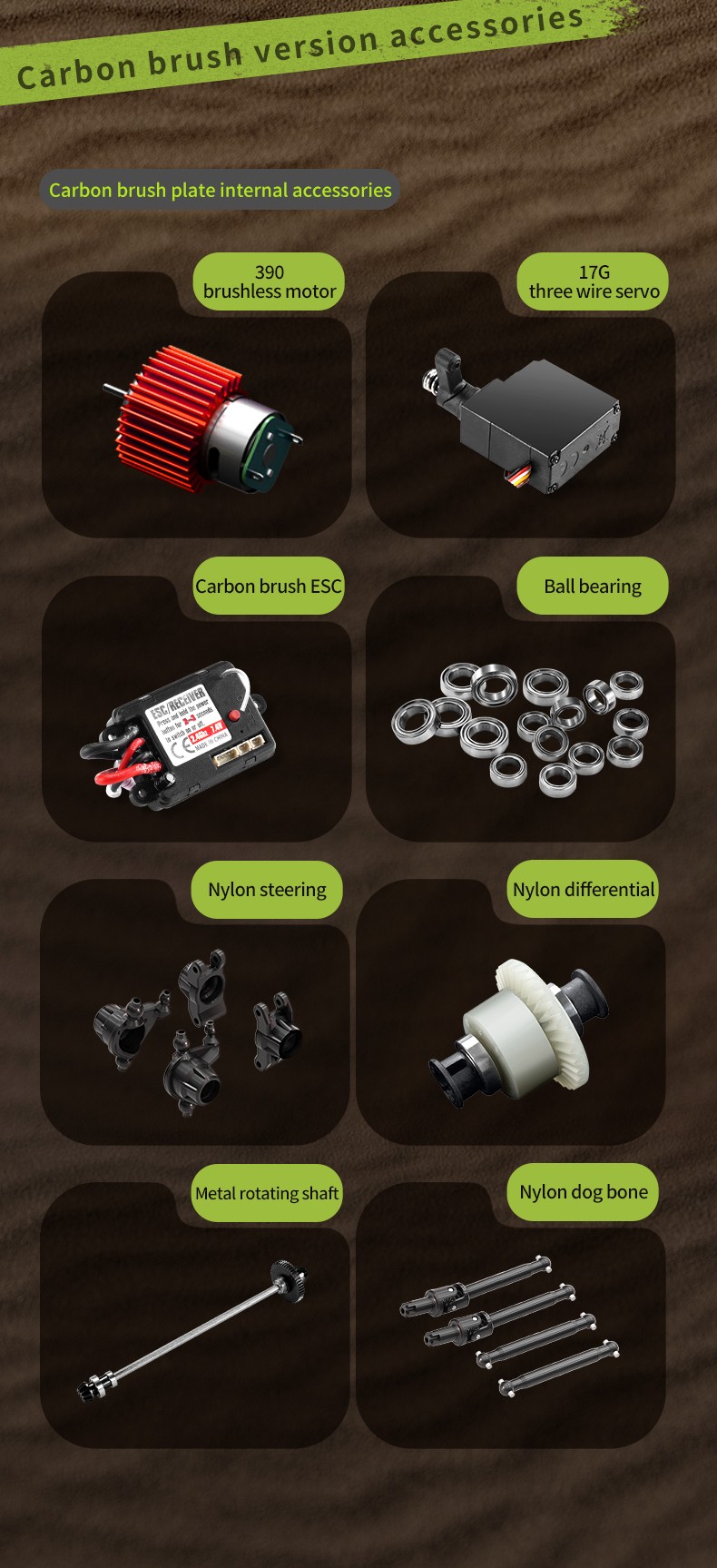

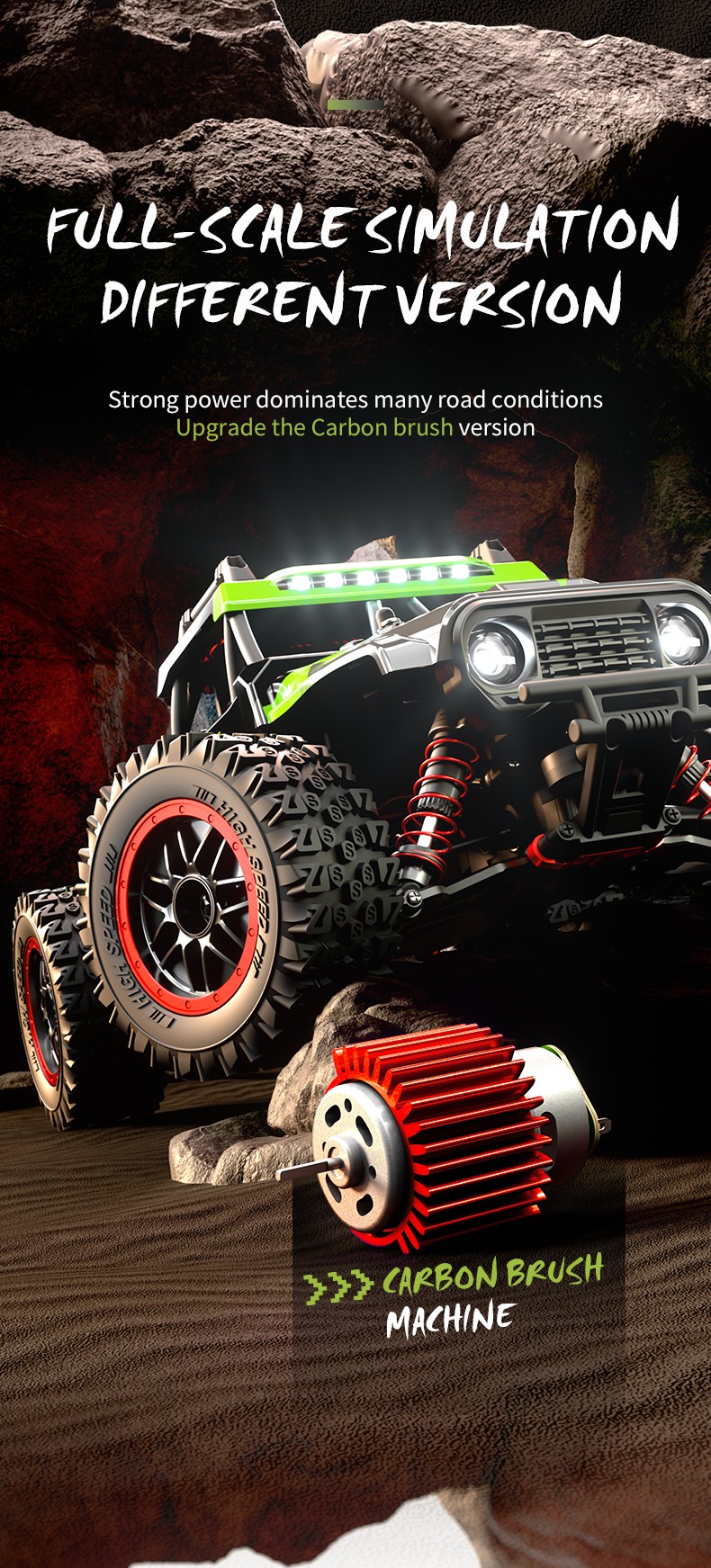

• Motor: RC390 high-speed carbon brush strong magnet (with magnetic protection and heat sink)

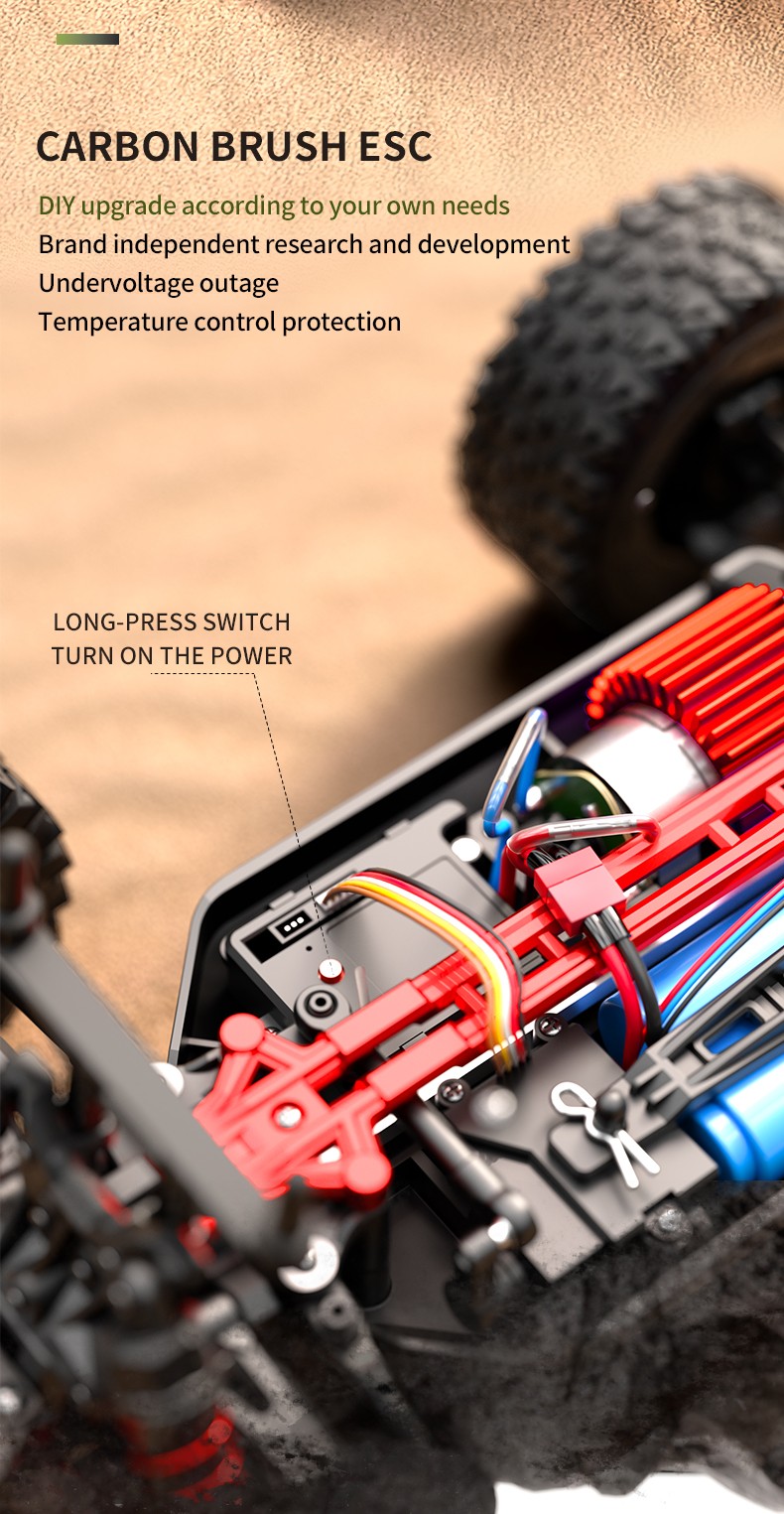

• Electronic Speed Controller/Receiver: 35A 2S electronic speed controller and receiver in one (splash-proof)

III. Performance Parameters

• Operating Time: 15 - 18 minutes (continuous full-speed running)
• Charger: USB balance charger
• Charging Time: 3 - 3.5 hours (USB balance charging)
• Remote Control Distance: ≥120 meters
• Frequency: 2.4GHz (supports multiple vehicles competing on the same field)
• Remote Control Category: Full proportional synchronous control system (gun control)
• Speed: 48 kilometers per hour (top speed)
• Wheelbase Parameters: Wheelbase 185mm, track width 188mm, wheel diameter 85mm

IV. Special Features

• Ball Bearings: The whole vehicle uses 16 ball bearings.
• Metal Components: Metal second floor plate, metal front and rear codes, metal central drive shaft.
• Car Shell: The car shell is made of high-toughness explosion-proof PVC.

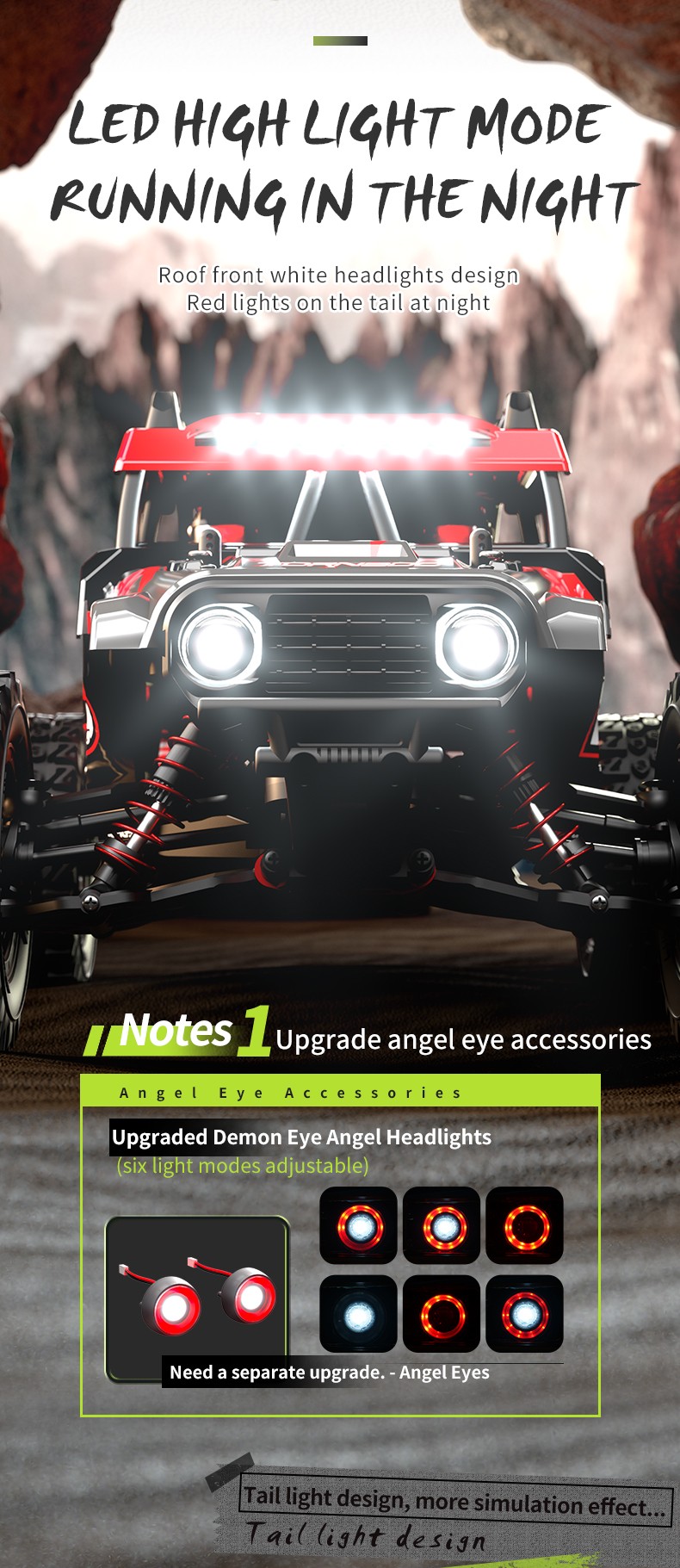

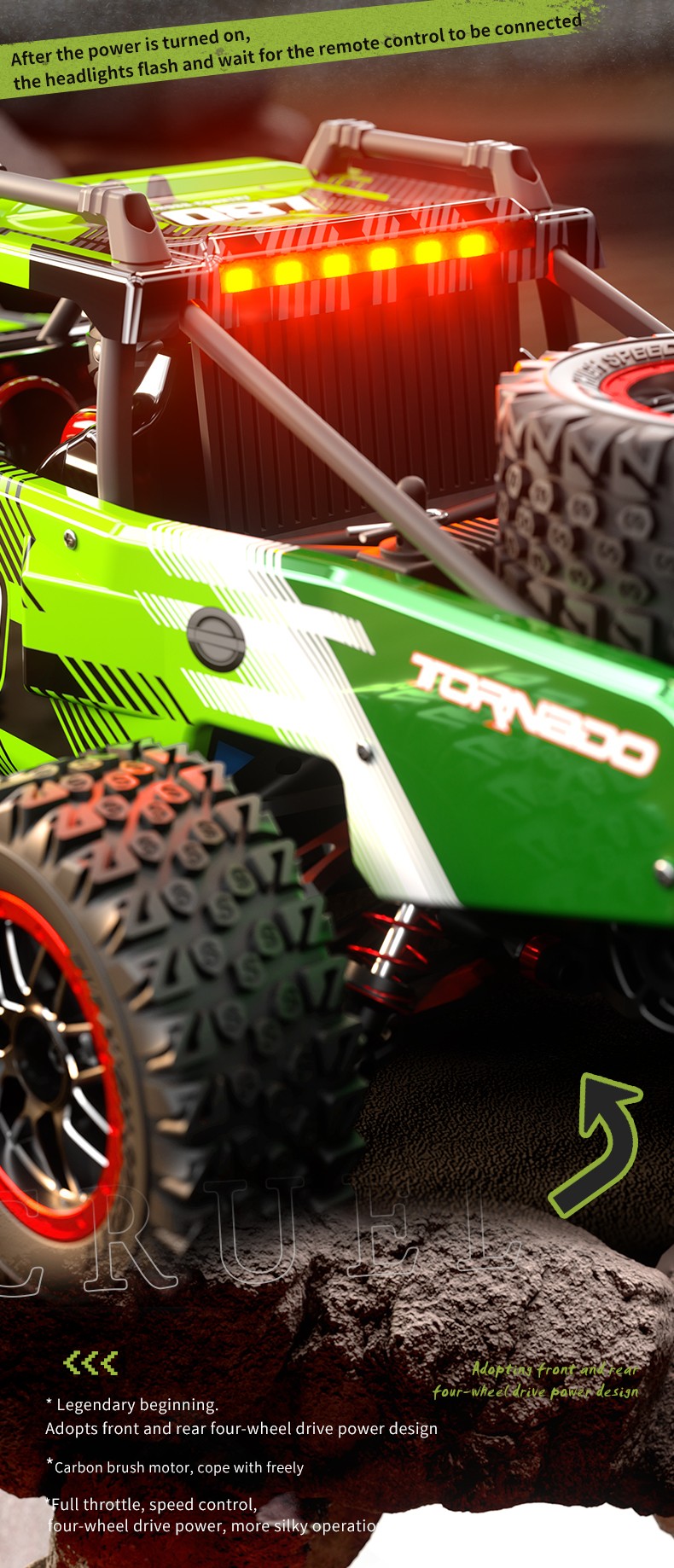

• Lighting: The car shell is equipped with LED headlights, LED roof lights, and LED tail lights (three modes: constant on, slow flashing, and fast flashing).

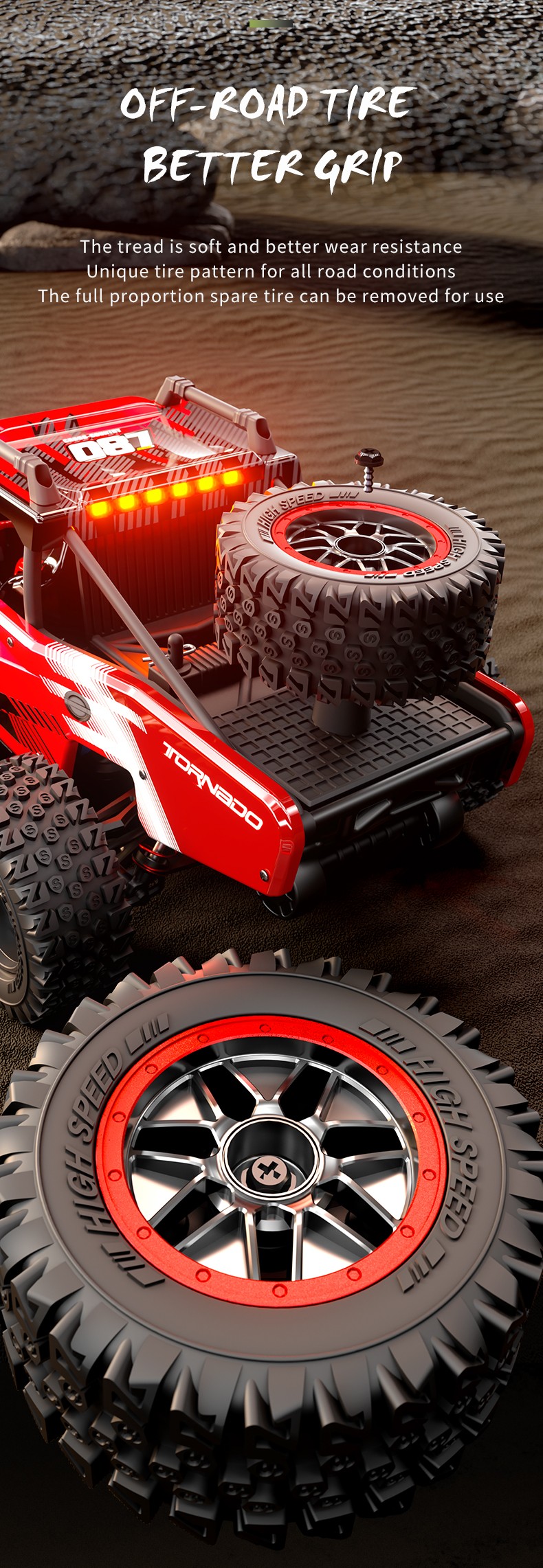

• Tires: Simulated off-road tires with strong grip.
• Protection Structure: The car shell has a full-surround structure, which can better buffer when the vehicle is hit head-on and protect the wheel components.

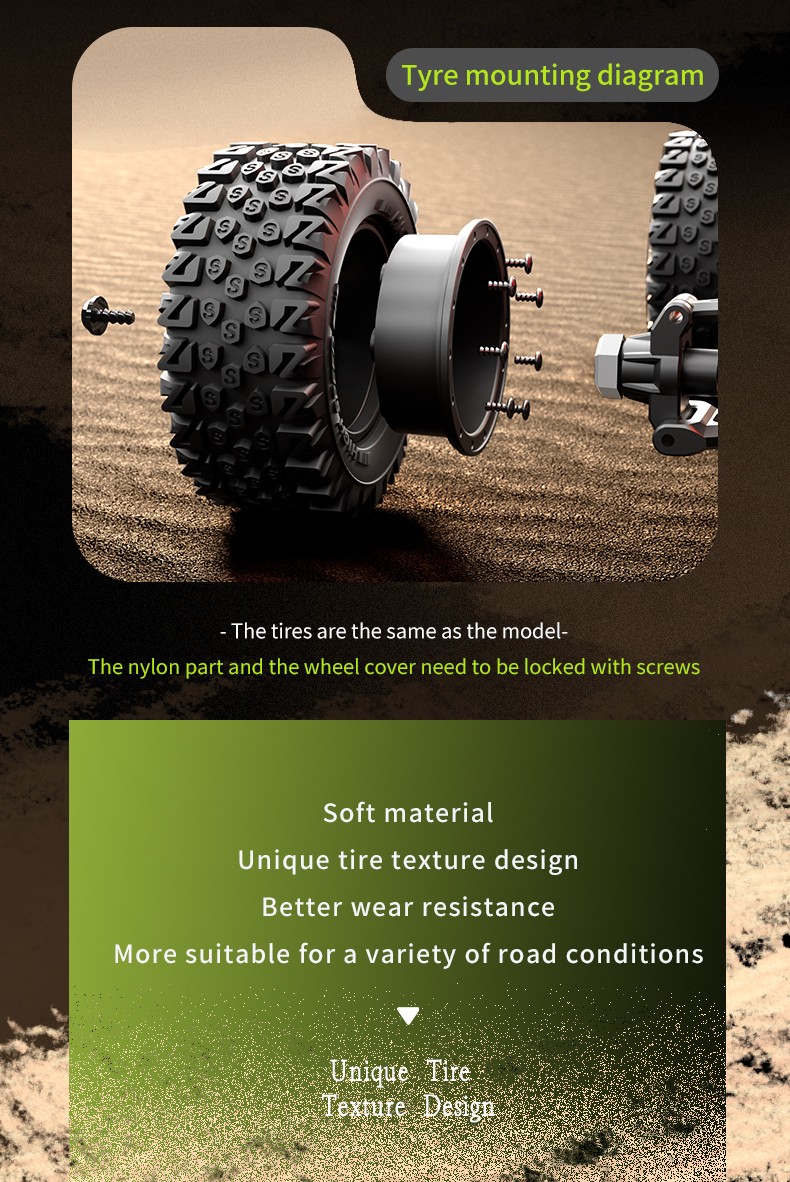

• Wheels and Chassis: Adopts 3.2-inch off-road wheels and raises the chassis to improve passability.

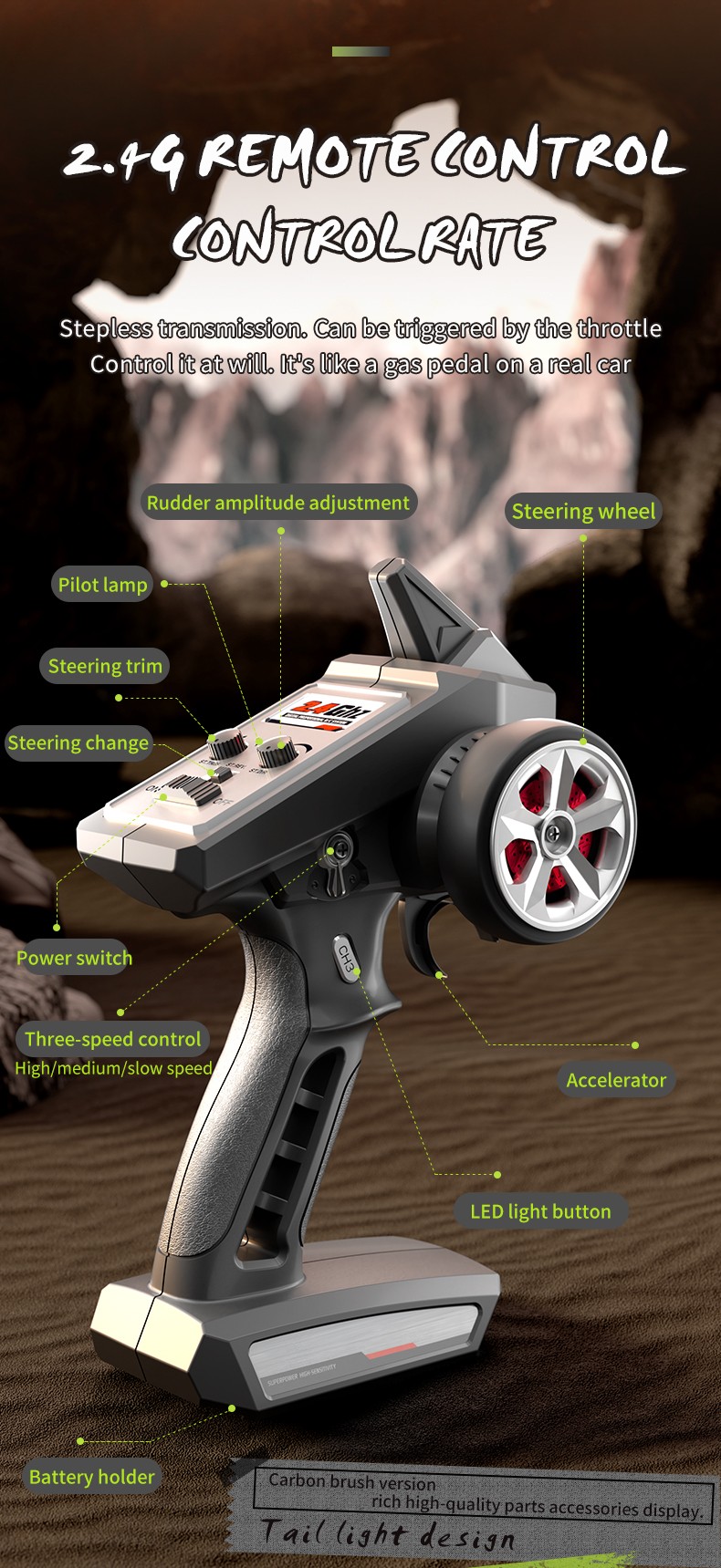

V. Remote Control Characteristics

• Remote Control System: 2.4G full proportional synchronous remote control system, full proportional throttle/steering.
• Panel Function: The new remote control panel function can adjust the rudder volume.
• Knob Design: The remote control panel uses knob-type steering fine-tuning knobs and rudder adjustment knobs for more accurate and delicate adjustment.
• Plug Advantage: The connection between the electronic speed controller and the battery uses a model-level T-shaped plug for more stable current output.

VI. Protection Functions

• Motor Anti-jamming Protection: When overloaded, the motor stops working.
• High Temperature Protection: When the temperature is too high, the drive control circuit stops working and resumes after the temperature drops to a safe value.
• Low Voltage Cutoff: The electronic speed controller has a low voltage cutoff function. When the battery voltage is lower than a specific voltage, the motor cuts off power to prevent over-discharge damage.

VII. Accessories

1. Whole vehicle
2. Remote control
3. Chinese and English instruction manuals
4. Lithium battery
5. USB balance charger
6. DIY self-adhesive stickers for both sides of the door
7. Shock absorber adjustment buckle
8. Metal bolt
9. Hexagonal socket.

Click here to view the brushless version of JJRC C8805 rc car.
