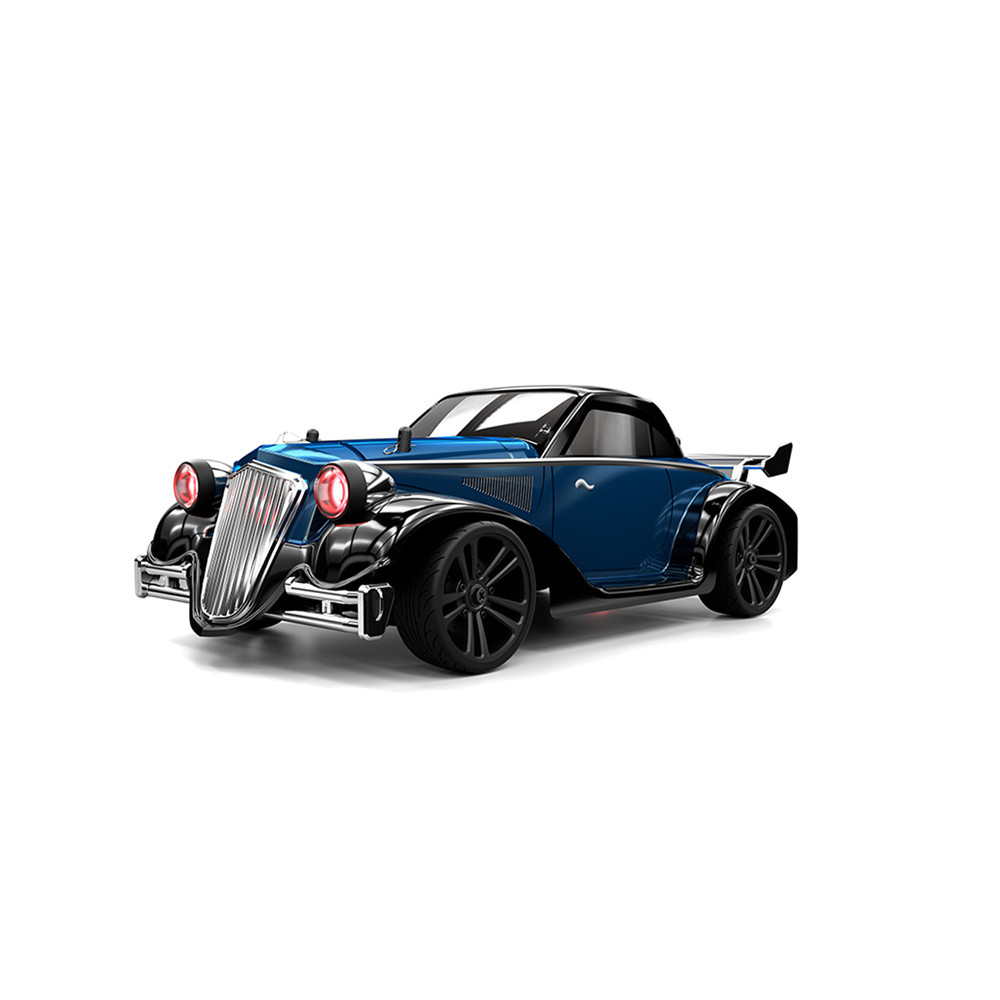

JJRC Q117F 1/16 Electric 4WD Drift RC Car (Vintage Car)

I. Product Basic Information

• Brand: JJRC
• Model: Q117F
• Scale: 1:16
• Colors: Military Green / Metallic Blue / Metallic Red
• Weight (Including Battery): 0.8 kg
• Dimensions (cm): 30 x 15 x 10.8
• Body Battery: 7.4V 1300mAh Li-ion Battery (T plug), 88.8g
• Remote Control Battery: 3 * AA (not included)
• Axle Parameters: Wheelbase: 180mm, Track: 127mm, Wheel Diameter: 50mm

II. Performance Parameters

• Top Speed: 35 km/h;
• Remote Control Time: 15-18 minutes (continuous high-speed running);
• Charging Time: 180-210 minutes (USB balance charge);
• Remote Control Distance: ≥80 meters;

III. Remote Control System

• Frequency: 2.4GHz (supports multiple cars racing together);
• Control Type: Full-scale synchronized control system;

IV. Key Components

• Motor: RC390 High-Speed Bearing Carbon Brush Strong Magnet (with magnetic protection and heat sink);
• Steering Servo: 5-wire servo, 17g;
• ESC/Receiver: Waterproof ESC/Receiver integrated control system;
• Differential Structure: Front and rear nylon planetary gear differentials;
• Lighting: Devil Angel Eye headlights (7 modes), tail lights;

V. Protection Features

• Charging Protection: Constant current, constant voltage balance charging, overcharge and overcurrent protection;
• Motor Overload Protection: Motor stops working under overload;
• High Temperature Protection: Drive control circuit stops when the temperature exceeds a preset limit and resumes after cooling down;
• Low Voltage Cutoff: Auto shutoff when battery voltage drops below 6.3-6.4V to prevent battery damage;

VI. Functional Features

1. Control Features: Realistic design for true vehicle control feeling, full-scale continuous speed control, high-speed driving, acceleration, deceleration, braking, reverse, left/right turns, and drifting;
2. Suitable Surfaces: Flat roads, cement roads, asphalt roads, racetracks;
3. Lighting Features: Devil Angel Eye seven modes, including flowing lights, constant lights, angel eye modes, and turn signals;
4. Drive & Suspension System: 4WD, front and rear upright spring shock absorbers, double A-arm independent suspension;
5. Remote Control System: 2.4G full-scale synchronized control, full throttle/steering;
6. Transmission Features: Front universal joint drive shaft, rear separate dog bone drive shaft;
7. Servo Features: 5-wire 17g steering servo;
8. Battery Power: 7.4V 18650 - 1300mAh Li-ion battery, 10C discharge rate (T plug);
9. Structural Material: 16 ball bearings, metal second-floor plate, metal front and rear arms, metal central drive shaft;
10. Body Shell: High toughness, explosion-proof PVC shell;
11. Tires: Realistic racing tires with strong grip;
12. Drifting Configuration: Equipped with a set of drift wheels (4), for an enjoyable drifting experience;
13. Upgrade Interface: Two reserved power connectors for future upgrades;

VII. Product Package

1. 1 x Car
2. 1 x Remote Control
3. 1 x English Manual
4. 1 x 7.4V 1300mAh Battery
5. 1 x USB Charger
6. 4 x Drift Wheels
7. 1 x Shock Absorber Adjustment Ring
8. 1 x Metal Pin
9. 1 x Small Phillips Screwdriver
