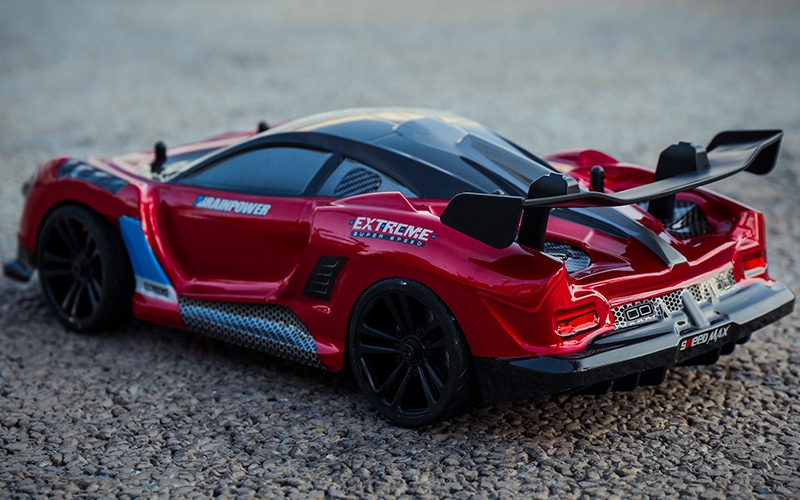

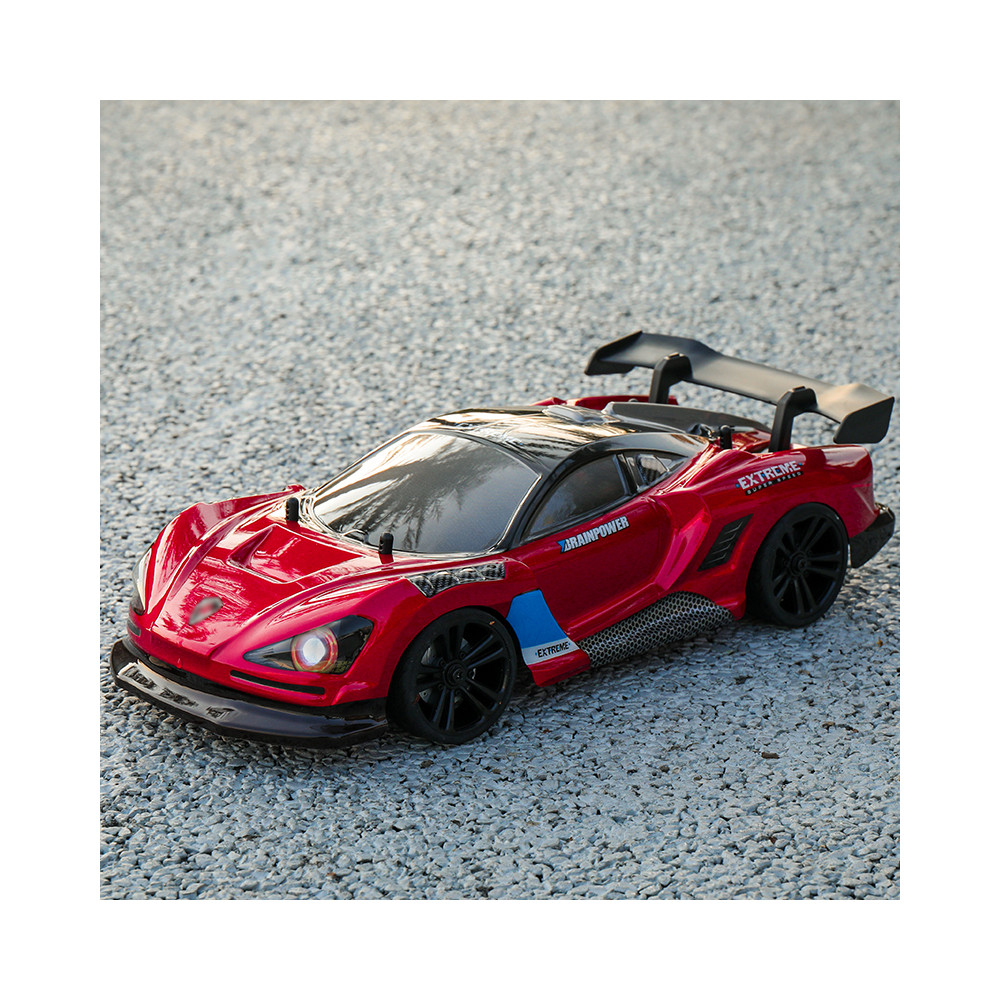

JJRC Q117E 1/16 Electric 4WD Drift Racing RC Car

1. Product Basic Information

• Brand: JJRC
• Model: Q117E
• Scale: 1:16
• Colors: Metallic Blue / Metallic Red
• Weight (with battery): 0.8 Kg
• Material: Metal / Electronics / Plastic
• Dimensions (cm): 33 x 15 x 9
• Wheelbase Parameters: Wheelbase: 180mm, Track width: 127mm, Wheel diameter: 50mm

2. Battery Information

• Body Battery: 7.4V 1300mAh Li-ion Battery (T plug);
• Remote Control Battery: 3 x AA (sold separately);

3. Performance Parameters

• Top Speed: 35 km/h;
• Run Time (minutes): 15 - 18 minutes (at full speed);
• Charging Time (minutes): 180 - 210 minutes (USB balanced charging);
• Remote Control Range (meters): ≥80m;

4. Remote Control Information

• Frequency: 2.4GHz (supports multiple cars racing together);
• Remote Control Type: Full-scale synchronized control system;

5. Components Configuration

• Motor: RC390 High-speed Bearing Carbon Brush Strong Magnet (Magnetic Protection + Heat Sink);
• Servo: 5-wire Servo / Weight: 17g;
• ESC / Receiver: Integrated ESC and Receiver (Splash-proof);
• Differential Structure: Front and rear nylon planetary differential gears;
• Car Light Configuration: Devil Angel Eye LED Lights (Seven modes), Tail lights;

6. Protection Features

• Charging Protection: Constant current and voltage balanced charging with overcharge and overcurrent protection.
• Motor Protection: Stops the motor when it’s overloaded.
• High-Temperature Protection: Stops the drive control circuit when the temperature exceeds the set limit, resuming operation once the temperature lowers to a safe range.
• Low Voltage Cutoff Protection: Automatically cuts power when battery voltage drops below 6.3V - 6.4V to prevent over-discharge damage.

7. Product Features

1. Control Features: Realistic design with full-scale variable speed control, capable of high-speed driving, acceleration, deceleration, braking, reverse, left/right turns, and drifting.
2. Suitable Terrain: Flat roads, cement roads, asphalt roads, race tracks.
3. Car Light Functions: Seven modes including Devil Angel Eye running lights, Devil Angel Eye constant light, Devil Eye constant light, Angel Eye constant light, Devil running lights, Devil Angel Eye breathing lights, and turn signals (front and rear blink together).
4. Drive and Suspension System: 4WD, front and rear upright spring shock absorbers, double A-arm independent suspension system.
5. Remote Control System: 2.4G full-scale synchronized control system with full throttle and steering control.
6. ESC / Receiver: 2.4G splash-proof four-channel 30A integrated ESC / Receiver.
7. Drive Shaft Configuration: Front wheel cross universal joint drive shaft, rear wheel split dog bone drive shaft.
8. Servo Features: 5-wire 17G servo.
9. Battery Power: Super power battery, 7.4V, 18650 - 1300mAh Li-ion battery, discharge rate 10C (T plug).
10. Bearings & Components Material: 16 ball bearings throughout the car; metal upper chassis, metal front and rear arm posts, metal central drive shaft.
11. Car Body: High-tensile, explosion-proof PVC shell.
12. Tires: Realistic racing car tires with strong grip.
13. Drift Configuration: Equipped with four drift wheels for a fun drifting experience.
14. Reserved Ports: Two power ports on the power board for upgrading additional accessories.

8. Product Configuration

1. 1x Car
2. 1x Remote Control
3. 1x English Manual
4. 1x 7.4V 1300mAh Battery
5. 1x USB Charger
6. 4x Drift Wheels
7. 1x Shock Adjustment Rings
8. 1x Metal Pins
9. 1x Small Phillips Screwdriver
