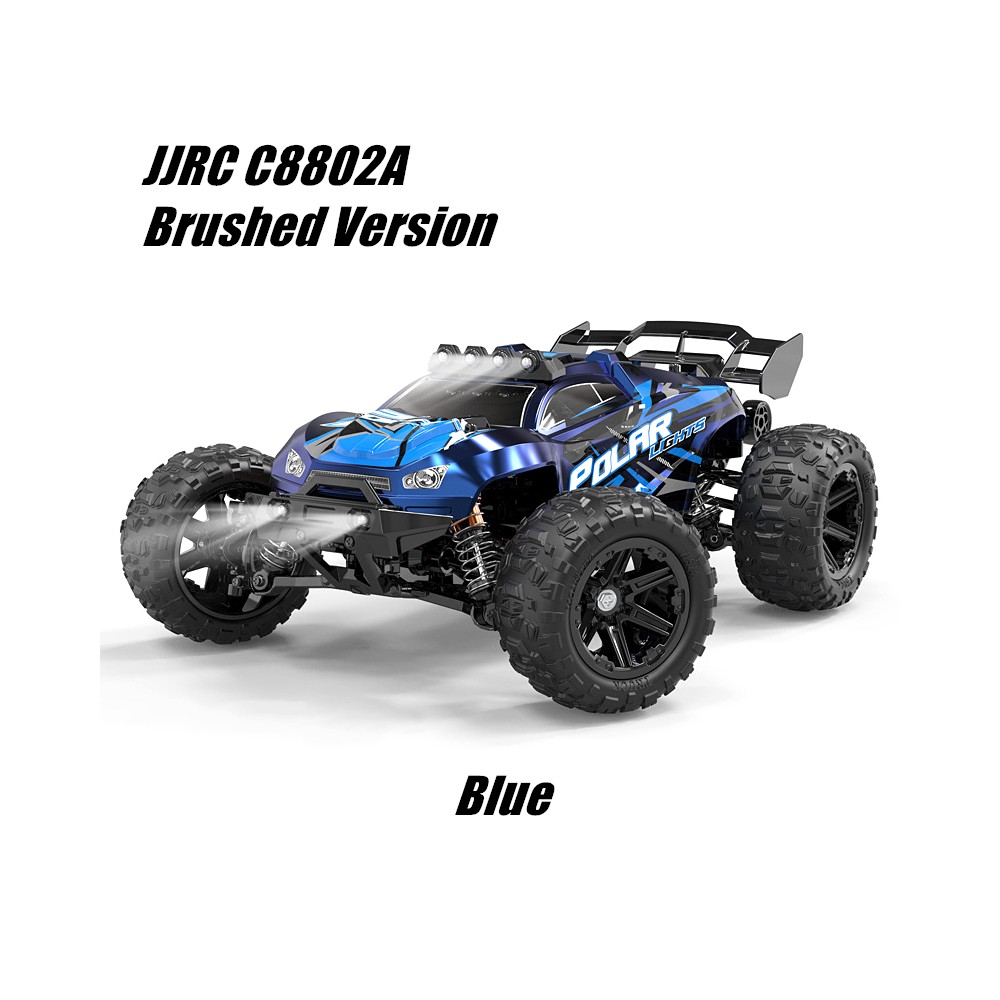

JJRC C8802 2.4Ghz 4WD Brushed Off-road RC Car
The JJRC C8802 2.4Ghz 4WD Brushed Off-road RC Car from JJRC brand has models C8802A and C8802B. It features an explosion-proof PVC soft shell, 1:14 scale, 19.5CM wheelbase. With a 2.4GHZ remote control, 100M distance. Offers 10 - 30 min runtime, 4-hour charge time. Has various features like large steering range, alloy parts, and more.
JJRC C8802 2.4Ghz Brushed Off-road RC Car
I. Product Overview
- Brand: JJRC
- Brushed model: C8802A, C8802B
- Shell material: Explosion-proof PVC soft shell
- Product scale: 1:14
- Product wheelbase: 19.5CM
II. Remote Control Information
- Remote control frequency: 2.4GHZ
- Remote control distance: 100M
- Remote control category: Full proportional synchronous control system
- Remote control battery: 3X1.5VAA battery (not included)
III. Performance Parameters of JJRC C8802 Brushed RC Car
- Operating time: Approximately 10 - 30 minutes (depending on speed)
- Charging time: Approximately 4 hours
- Charger: USB 7.4V charging cable
- Steering angle: 30°
- Transmission ratio: 12:1
- Operating mode: Full proportional synchronous control function for forward/backward, left/right turns, and braking
- Waterproof performance: No waterproof function
- Protection functions: Vehicle high temperature protection, battery overcharge, and overcurrent protection
IV. Product Features of JJRC C8802 Brushed RC Car
- Steering features: Large steering range and high-torque steering gear
- Shock absorption features: Alloy threaded adjustable soft and hard shock absorbers
- Battery features: Modular integrated battery
- Illumination features: 6 lighting lamps are equipped on the lamp and guardrail
- Differential features: Alloy differential cup
- Drive shaft features: Alloy central drive shaft
- Other features: The whole vehicle is equipped with ball bearings
V. Version Differences (Brushed Version)
- Front wheel part: Nylon left or right front wheel drive shaft and wheel axle are integrated
- Rear wheel part: Nylon plastic left or right rear wheel drive shaft, nylon plastic rear wheel axle and hexagonal adapter
- Gear related: Nylon large reduction gear, nylon front and rear central drive shaft gears, nylon differential large gear plus alloy planetary differential
- Central drive shaft: Alloy hexagonal central drive shaft
- Remote control: Brushed remote control
- Electronic speed controller/receiver: 30A brushed electronic stepless speed controller
- Steering gear: 1.5KG 5-wire high-torque steering gear
- Motor: RC390 brushed motor
- Lithium battery: Modular 7.4V 1300mAH lithium battery
- 3S battery support status: Not supported.
VI. Product Accessories
- 1X remote-controlled car
- 1X remote control
- 1X battery
- 1X USB charging cable
- 1X Chinese and English instruction manuals
VII. Note
- The circuit board of the carbon brush plate is only 30A and can only be used up to 7.4V.
- The upgraded battery kit (11.1V 3S 1050mAh lithium battery + USB charging cable) cannot be applied to the upgrade of this car!
Click here to view the brushless version of JJRC C8802 rc car.
