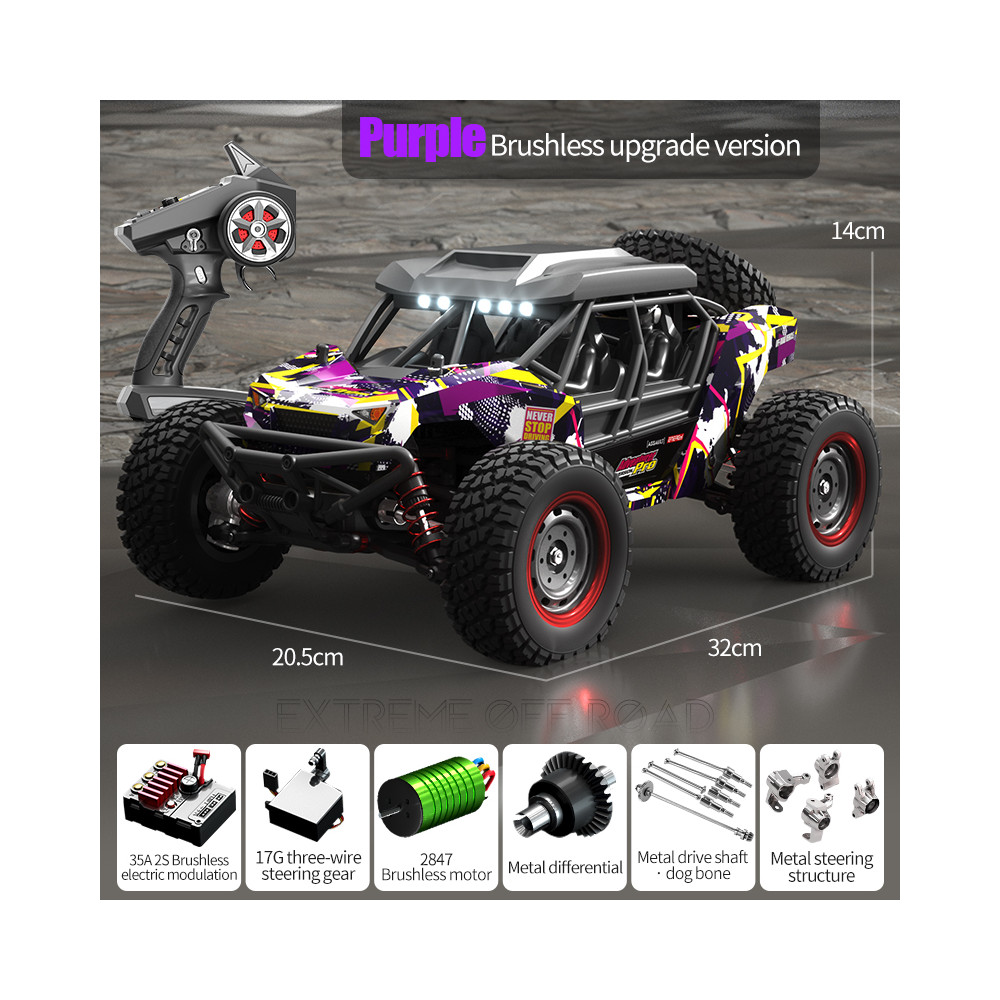

I. Product Overview

• Brand: JJRC
• Model: Q141
• Scale: 1/16
• Color: Blue, Purple
• Version: Brushless
• Motor: 2847 Brushless Motor (4000KV)
• ESC: 35A 2S Integrated Controller (Water-resistant)
• Top Speed: 70 km/h (maximum speed)

II.Specification parameters

• Product Dimensions: 32 x 20.5 x 14 cm
• Remote Control Dimensions: 13 x 7.5 x 21 cm
• Frequency: 2.4GHz (supports multiple cars racing simultaneously)
• Remote Controller Battery: 3 * “AA” (batteries not included)
• Battery: 7.4V 1500mAh 15C Li-ion Battery (T-plug)
• Remote Control Time: 15-18 minutes
• Charging Time: 180-210 minutes
• Remote Control Distance: ≥120 meters

III.Key Features:

1. Realistic Structure Design: Offers a true-to-life driving experience with full proportional throttle and steering control, including functions like rapid acceleration, deceleration, braking, reverse, left turn, and right turn.
2. Suitable Terrain: Flat surfaces, sand, mud, and grass.
3. 4WD Drive System: Front and rear vertical spring shock absorbers, dual-arm independent suspension system.
4. 2.4G Full Proportional Sync Remote Control System: Full proportional throttle and steering control.
5. Metal Drive System:
   ①Metal differential, metal differential cup, powdered metal planetary gears, powdered metal drive gears, and powdered metal main gears.
   ②Metal front steering knuckles and rear axle seat.
   ③Metal CVD front drive shafts, metal rear dog bones, and metal wheel cups.
6. 17G Digital Servo with Three-Wire Connection.
7. Battery Specifications: 7.4V, 18650-1500mAh Li-ion battery, discharge rate 15C.
8. New Remote Controller Feature: Adjustable steering trim.
9. Full Vehicle Ball Bearings: 16 ball bearings throughout the car.
10. Metal Construction: Metal upper deck, front and rear arm mounts, and middle drive shaft.
11. Car Shell: High-strength, explosion-proof PVC shell with reinforced roll cage.
12. LED Lighting System: Includes LED front headlights, top front light, and top rear light with three lighting modes (steady, slow flash, fast flash).
13. Head-up Wheel: Equipped with a head-up wheel to improve stability.
14. Realistic Large Tires: Provides excellent traction.

IV.Accessories:

1. Car (Complete Vehicle)
2. Remote Controller
3. Bilingual Instruction Manual (Chinese and English)
4. Li-ion Battery
5. USB Charger
6. Spoiler
7. Head-up Wheel
8. Shock Absorber Adjustment Ring
9. Metal Pins
10. Cross Screwdriver
11. Hex Wrench
12. Brushless Edition Instruction Insert
