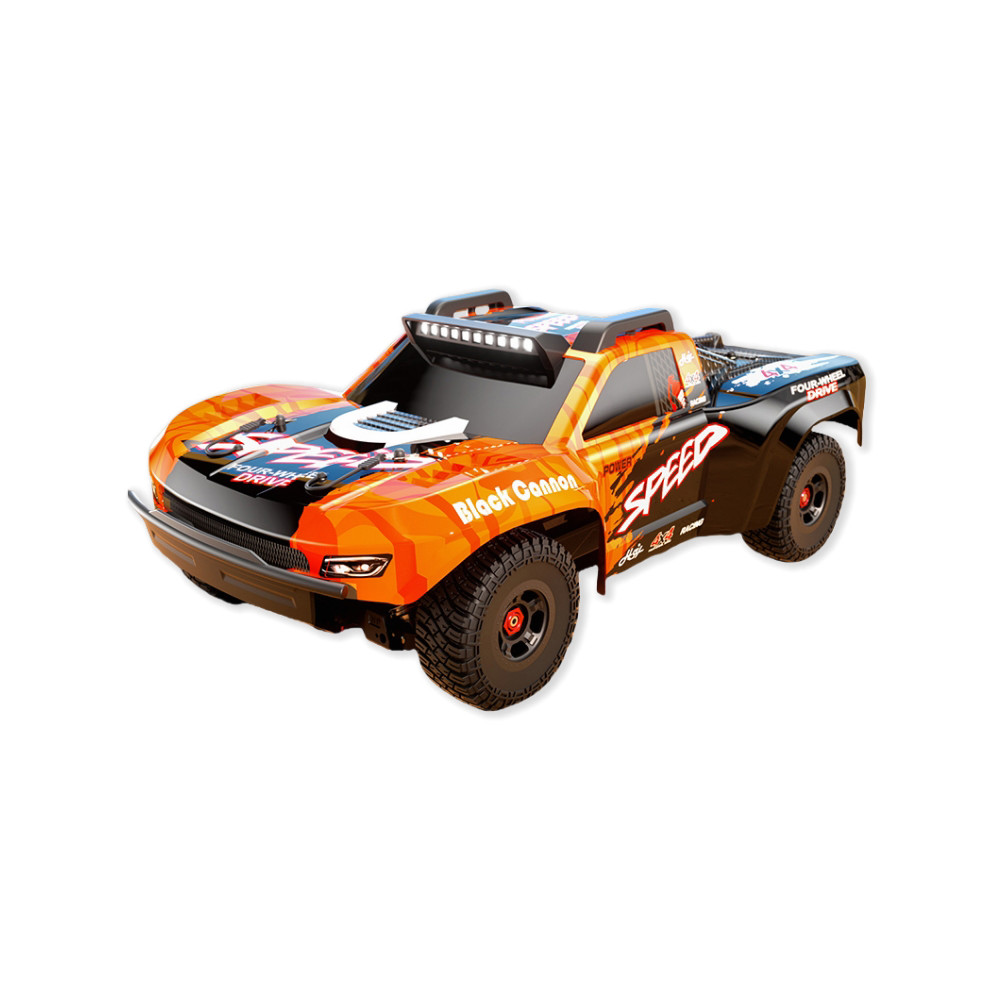

JJRC C8822 1/8 Desert Short RC Truck

I. Basic Parameters

Information

• Brand and Model: JJRC C8822
• Scale: 1/8
• Color: Orange
• Name: C8822 Super - large 4WD High - speed Short - Course Truck (Batu Jushou: 1:8 Large Scale)
• Product Dimensions: 680mm×365mm×250mm
• Product Weight (Single Item): 5650 grams

Battery - related

• Product Battery: 3s 5000mAh 30C Li - Po Power Battery
• Charging Connector: 11.1V USB Charging Cable with Red - Green Indicator Lights
• Charging Time: Approximately 8 hours for slow charging
• Remote Control Battery: 4 pieces of 1.5V AA dry batteries (not included)

Remote Control Parameters

• Remote Control Type: Independent Remote Control
• Remote Control Frequency: 2.4G
• Remote Control Distance: 300 - 350 meters
• Packing Quantity per Case: 1 pcs

II. Performance Features

Appearance and Applicable Scenarios

• The appearance adopts a desert short - course truck style, giving an impression similar to race cars.
• Suitable for all terrains: flat roads, cement roads, asphalt roads, race tracks, with no restrictions on the site.

Mechanical Structure

• The vehicle is equipped with three differentials, which evenly distribute power. The differentials are processed with arc - tooth structure meshing and outer alloy steel material, which is precise and not easy to strip gears.
• It has full - time 4 - wheel drive. The shock absorbers are made of all - aluminum alloy 26mm oil - filled shocks (CNC - machined, oxidized bright surface, anodized red).
• All drive shafts of the vehicle are made of steel drive shafts, and the front - wheel drive shafts adopt a model - grade CVD structure.

Control System

• It uses a small flying elephant independent remote control set, with a remote control distance of over 300 meters.
• It adopts a standard - sized 35KG steel - tooth waterproof digital servo, which can be upgraded with standard - sized components at will.

Power System

• It supports 6S power, with wild performance, and the maximum speed can reach 90km/h.
• It uses the Chaoyuewang power set: F4274 high - speed motor matched with ROCKET - RC® 130A independent electronic speed controller, unleashing extreme speed performance.

Vehicle Body Components

• The super - thick body shell is made of high - toughness explosion - proof material, with a thickness of 160cc, which is 60% higher than the conventional 80 - 100cc in the market.
• Imported rubber tires with strong grip and good wear resistance.

III. Safety Protection

• Charging Protection: Constant - current and constant - voltage balanced charging, with protection functions against overcharging and over - current of the battery.
• Motor Anti - stalling Protection: When overloaded, the motor stops working.
• High - Temperature Protection: When the working temperature is higher than the set value, the drive control circuit stops working and resumes operation after the temperature drops to a safe value.
• Electronic Speed Controller Low - Voltage Power - off Function: When the battery voltage is lower than the rated voltage, it will automatically cut off the power to prevent the battery from being over - discharged and damaged.
• Stall Protection.

IV. Accessories List

• Brushless Motor: F4274 Brushless Motor 2000kv (6061 T6 aluminum billet heat - dissipating body processed by CNC)
• Electronic Speed Controller/Receiver: ROCKET - RC® Rocket Series 130A Independent Electronic Speed Controller/Small Flying Elephant P6F 6 - Channel Receiver
• Servo: 35KG Brushless Steel - Tooth Waterproof Digital Servo (Standard Size)
• Speed: Standard 15T is about 80km/h/Spare 17T is about 90km/h
• Vehicle Parameter - related
• Wheelbase and Track Parameters: Wheelbase 385mm, Track 310mm, Wheel Diameter 120mm
• Differential Structure: Front, middle and rear differentials, Gleason arc - tooth structure
• Light Configuration: Roof lights + Taillights

V. Package included

1. 1X small flying elephant X4P - 3500 remote control
2. 1X 3s 5000mAh 30C Li - Po battery
3. 1X USB charging cable
4. 8X R - clips
5. 4X optical axes
6. 4X hexagon nuts
7. 1X 17T motor gear
8. 1X instruction manual
9. 4X small wrenches
