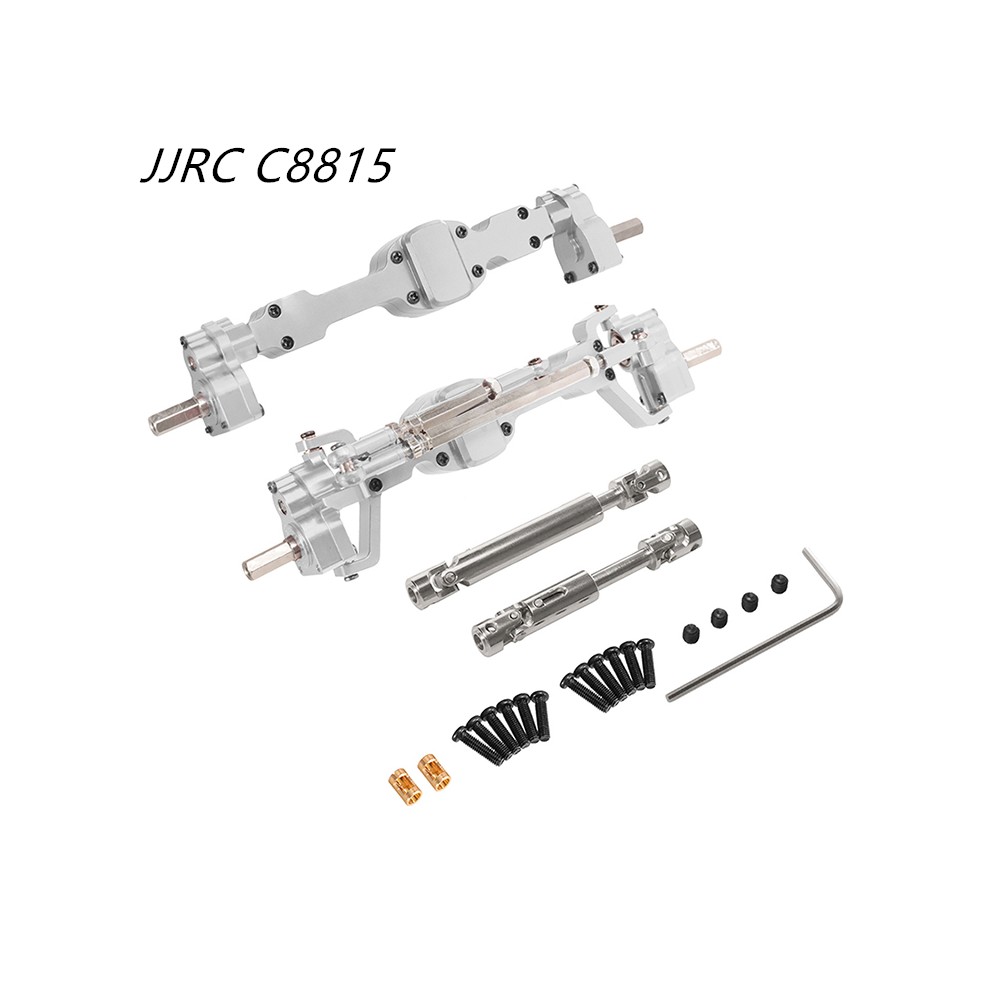

JJRC C8815 RC CAR Upgrade Parts All-Metal Portal Axles Metal Drive Shaft

0 Review(s)
$57.99
No tax
  • Applicable Brand/Model: JJRC C8815
  • Parts name: All-Metal Portal Axles Metal Drive Shaft
  • Type: Optional Parts
  • Material: Metal
  • Dimensions:
    • 1. Overall Length (end-to-end thread distance): 153mm
    • 2. Axle Height (width excluding the bracket): 21mm
    • 3. Input Shaft Diameter (diameter at the joint between the small bevel gear and the drive shaft): 3mm
    • 4. Output Shaft Diameter (thread diameter at both ends): 5mm
    • 5. Servo Mounting Width (front axle): 66mm
    • 6. Front Portal Axle Height: 40mm
    • 7. Rear Portal Axle Height: 26mm
  • Net Weight: 237g
  • Packaging Size: PE transparent self-sealing bag 10cm x 15cm x 3cm
Color
  • Silver
  • Black
  • Red

Volume discounts

Quantity Unit discount You Save
2 $0.59 $1.18
3 $0.79 $2.37
5 $1.39 $6.95
Quantity

JJRC C8815 RC Car Parts for sale

Item name: All-Metal Portal Axles Metal Drive Shaft

Notice:

  • (Metal drive shafts are required for installation, and 4mm to 3mm copper adapters are needed)
  • The portal axles provide increased torque for better off-road performance, but speed may decrease.
  • The coupler is 5mm, and installing 12mm coupler hubs requires a 5mm to 12mm coupler adapter.

Features:

  • 1. The entire axle is designed with full metal construction and steel gear transmission for smooth operation and long durability.
  • 2. Increased ground clearance, raising the axle by approximately 10.5mm compared to the original, allowing the chassis to clear obstacles like rocks and deep pits, reducing the risk of chassis scraping.
  • 3. The portal axle design creates space for larger diameter tires, further improving off-road traction and performance without affecting the overall body layout.

JJRC C8815 RC CAR Upgrade Parts All-Metal Portal Axles Metal Drive Shaft

About the JJRC C8815 1/10 RC Crawler

The JJRC C8815 remote control car is a 1:10 scale model car that combines military style and highly detailed simulation.

The body is equipped with a movable engine hood, LED front and rear lights, turn signals and an independently controlled blackout light. Coupled with the steering wheel linkage and highly simulated interior, the control experience is extremely realistic.

JJRC c8815 RC CAR 11

After you make the payment, we will ship your order as soon as possible. Please don't worry. Each package will have a unique logistics tracking number.
